CNGX120416S02020 KB1340

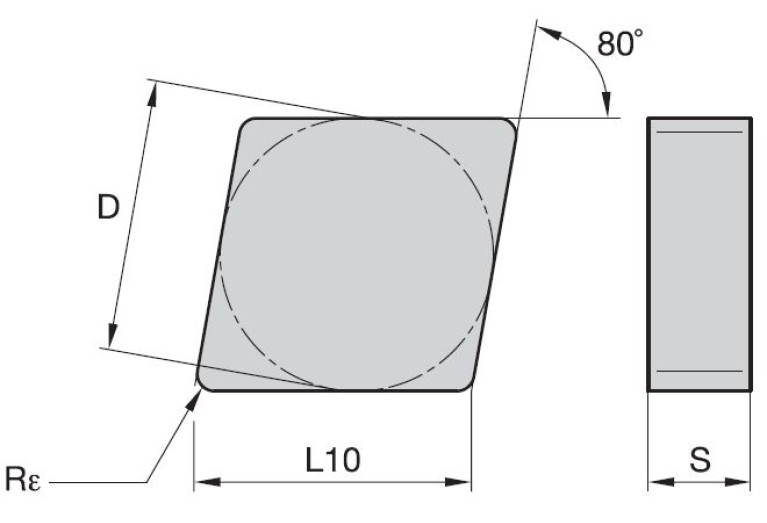

CNGX120416S02020 KB1340 CNGX120416S02020 KB1340 CNGX120416S02020 KB1340

CNGX120416S02020 KB1340

Kennametal
Артикул: 3960806
В наличии
В корзину
Описание
Характеристики

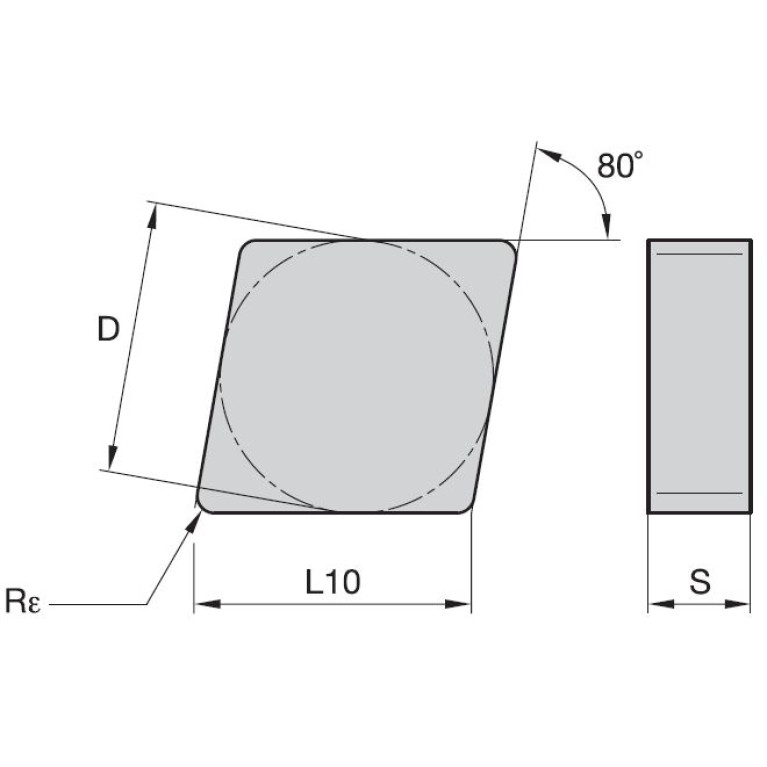

AN Clearance angle major
0 Degree
BN Face land width
0.2 mm
CB Chip breaker face count
0 - Without chip breaker
CECC Cutting edge condition code
S - Chamfered and rounded
COMPC Company code
KH - Kennametal
CSP Coolant supply property
0 - Without coolant supply
Delivery state valid from
1/31/2011
DIN
CN1204 5N
EPSR Insert included angle
80 Degree
FamilyProducts
Kendex negative dimple insert
GB Face land angle
20 Degree
GRD2ND Standard designation of the grade 2nd application
BN-K30
GRDMFG Grade manufacturers designation
KB1340
GRDPRIO Standard designation of the grade main application
BN-K10
IC Inscribed circle diameter
12.7 mm
ID Technical product number
3960806
IFS Insert mounting style code
5 - Special production, e.g. trough clamping
IH Insert hand
N - Neutral
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-03 - Rhombic insert
L Cutting edge length
12.9 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
CN1204 5N
Name Identifying order number
CNGX120416S02020 KB1340
RE Corner radius
1.6 mm
S Insert thickness
4.76 mm
S1 Insert thickness total
4.76 mm
STDDES Standard designation
CNGX120416
STDDESAnsi Standard designation ANSI
CNGX434S0820
TCINS Tolerance class insert
G
Working process
No working processes available
