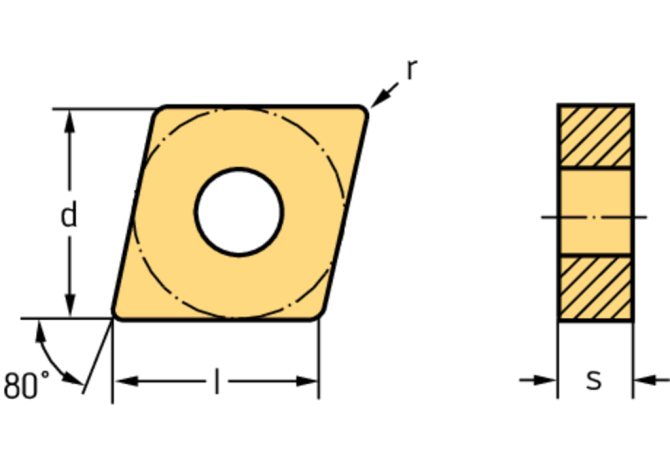

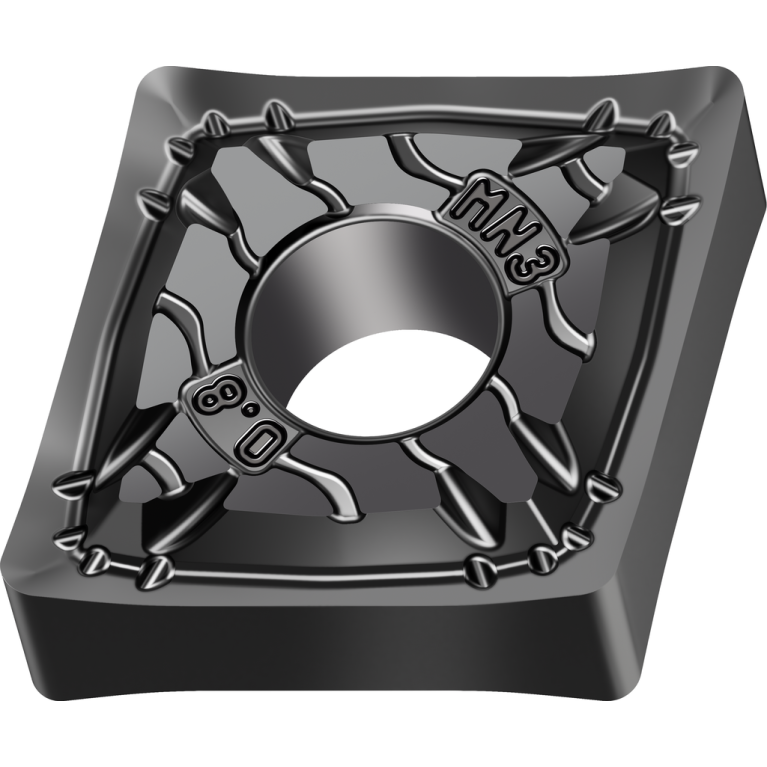

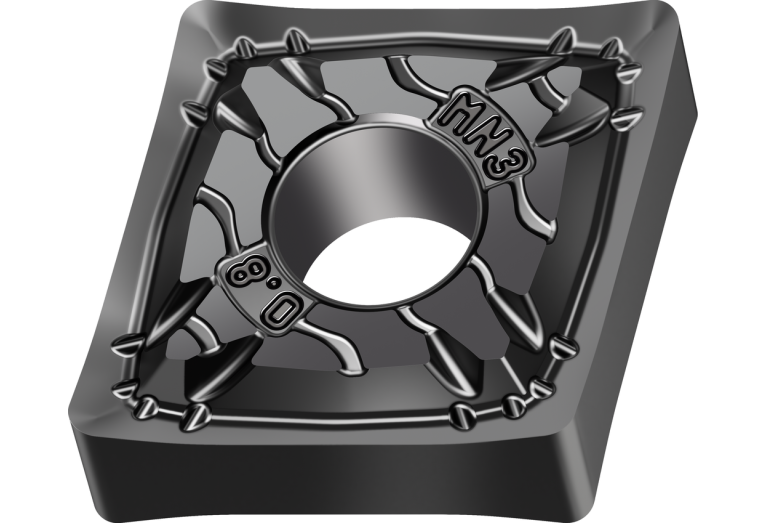

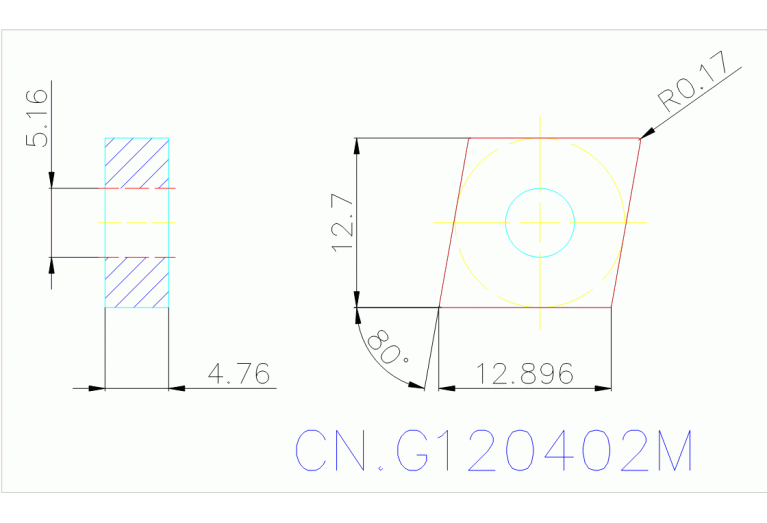

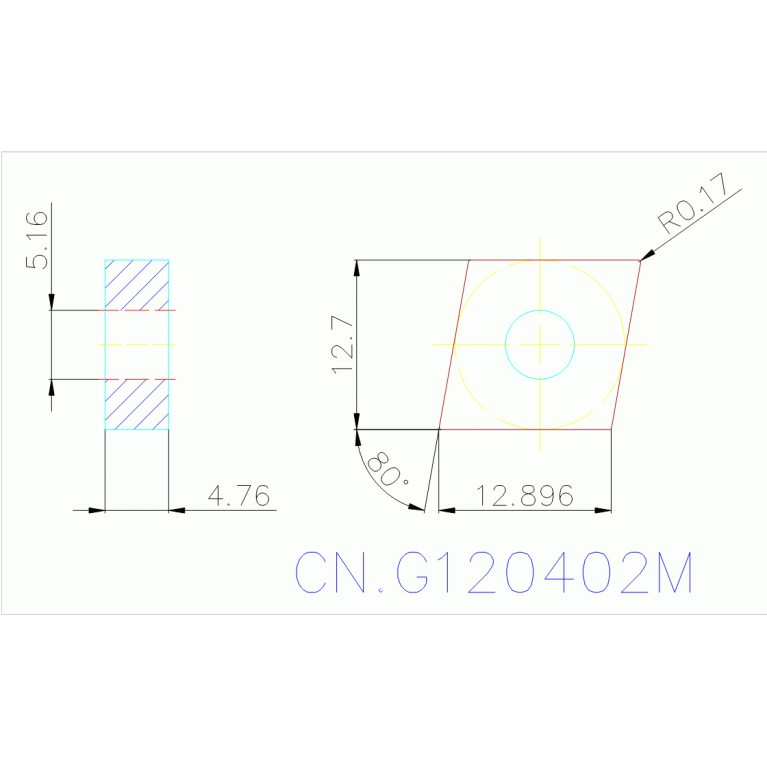

CNGG120402M-MN3 WN10

CNGG120402M-MN3 WN10 CNGG120402M-MN3 WN10 CNGG120402M-MN3 WN10 CNGG120402M-MN3 WN10

CNGG120402M-MN3 WN10

Walter
Артикул: 7749890
В наличии
В корзину
Описание
Характеристики
AN Clearance angle major
0 Degree
CB Chip breaker face count
1 - With chip breaker one-side
CBMD Chip breaker manufacturers designation
MN3
CECC Cutting edge condition code
F - Sharpedged
COATN Coating / Покрытие
ohne
COMPC Company code
W - Walter
CSP Coolant supply property
0 - Without coolant supply
D1 Fixing hole diameter
5.16 mm
Delivery state valid from
12/1/2023
DIN
CN1204022N
EPSR Insert included angle
80 Degree
FamilyProducts
Negative rhombic 80° CNGG
GRDMFG Grade manufacturers designation
WN10
IC Inscribed circle diameter
12.7 mm
ID Technical product number
7749890
IFS Insert mounting style code
2 - With cylindrical bore
IH Insert hand
N - Neutral
Interface codes
J6 / J441
ISISO ISO property
1
ISO
ISO$CN1204022NB$$02
ISYC Subclass
201-03 - Rhombic insert
L Cutting edge length
12.896 mm
LOC-03 ISO
ISO$CN1204022NB$$02
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
CN1204022N
MIID Master insert identification
CNGG120402M WN10
Name Identifying order number
CNGG120402M-MN3 WN10
NameAnsi Identifying order number inch alternative
CNGG4(3)0.5M-MN3 WN10
NOI Insert index count
2
RE Corner radius
0.17 mm
S Insert thickness
4.762 mm
S1 Insert thickness total
4.762 mm
STDDES Standard designation
CNGG120402M
TCE Tipped cutting edge code
S
TCINS Tolerance class insert
G
Working process
No working processes available
WT Weight of item
0.009 kg
