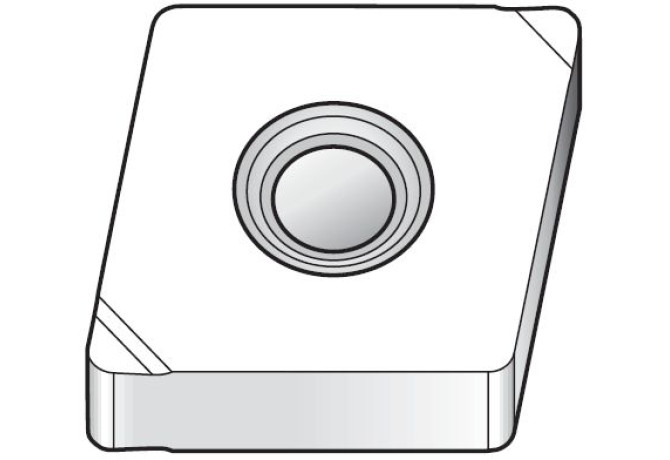

CNGF120408 KB1340

Артикул: 3876843

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CECC Cutting edge condition code

F - Sharpedged

COMPC Company code

KH - Kennametal

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/31/2011

DIN

CN1204 7N

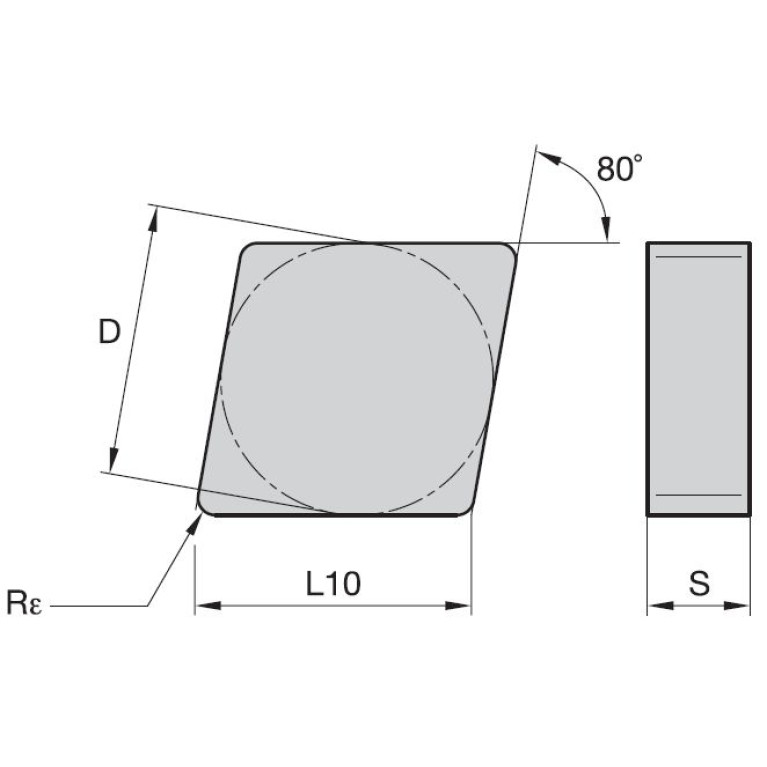

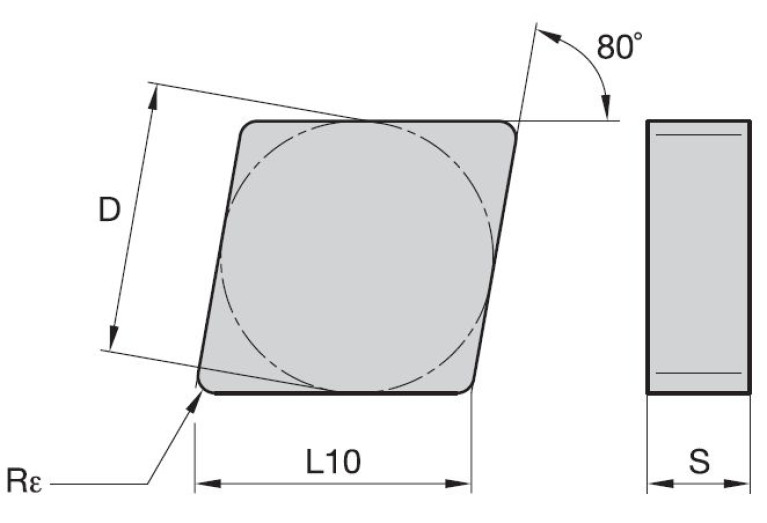

EPSR Insert included angle

80 Degree

FamilyProducts

Kendex negative dimple insert

GRD2ND Standard designation of the grade 2nd application

BN-K30

GRDMFG Grade manufacturers designation

KB1340

GRDPRIO Standard designation of the grade main application

BN-K10

IC Inscribed circle diameter

12.7 mm

ID Technical product number

3876843

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

12.9 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CN1204 7N

Name Identifying order number

CNGF120408 KB1340

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

CNGF120408

STDDESAnsi Standard designation ANSI

CNGF432

TCINS Tolerance class insert

Working process

No working processes available
