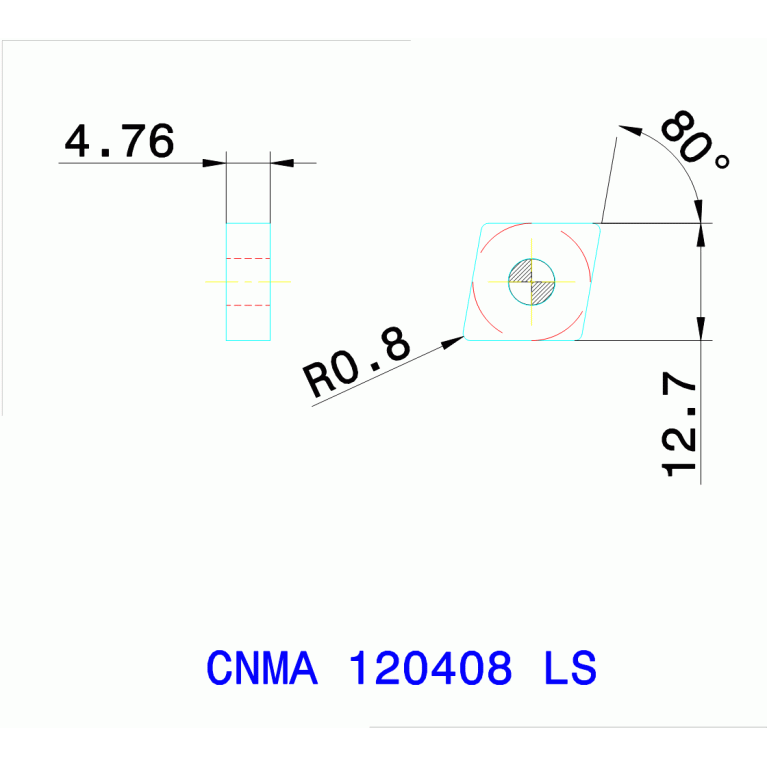

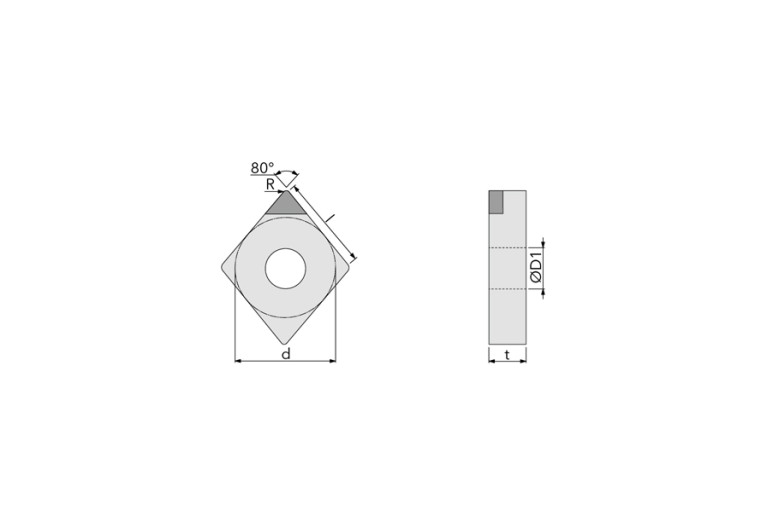

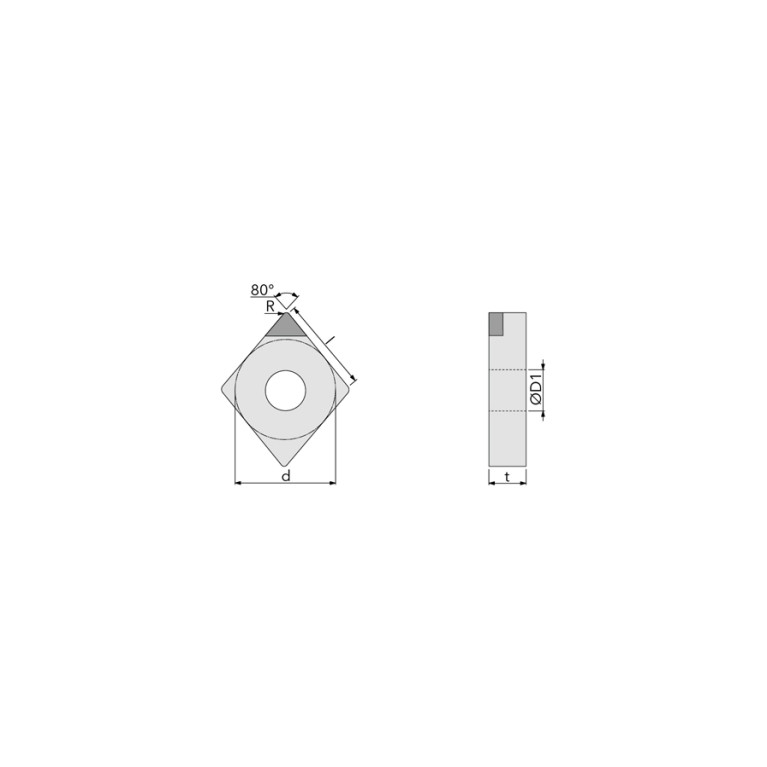

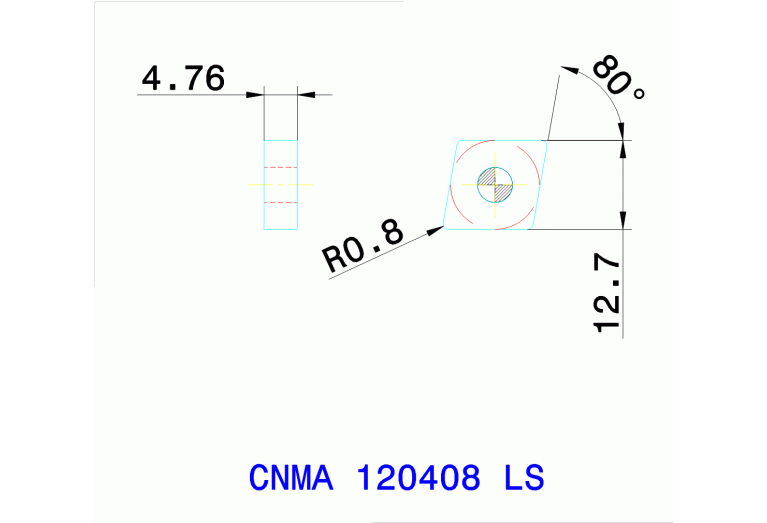

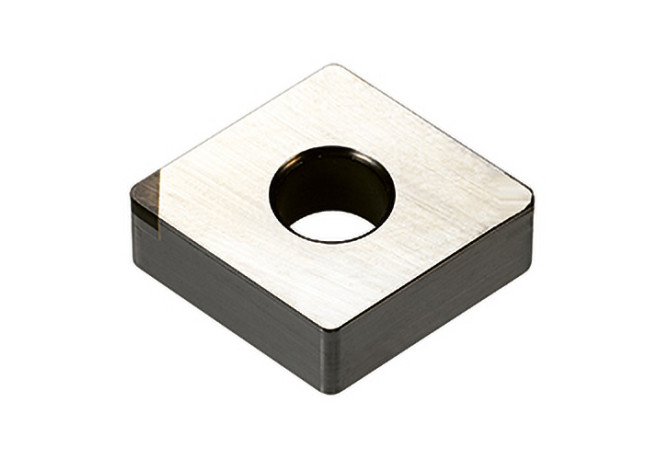

CNGA 120408 LS KB90

Артикул: 5400830

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

CBN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

5.2 mm

Delivery state

LL - Stock limited

DIN

CN1204082N

EPSR Insert included angle

80 Degree

FamilyProducts

insert, Negative 80° CBN Insert for high speed machining

GRD2ND Standard designation of the grade 2nd application

K05-K15

GRDMFG Grade manufacturers designation

KB90

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5400830

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

2.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CN1204082N

Name Identifying order number

CNGA 120408 LS KB90

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

CNGA120408

STDDESAnsi Standard designation ANSI

CNGA432

TCINS Tolerance class insert

Working process

No working processes available
