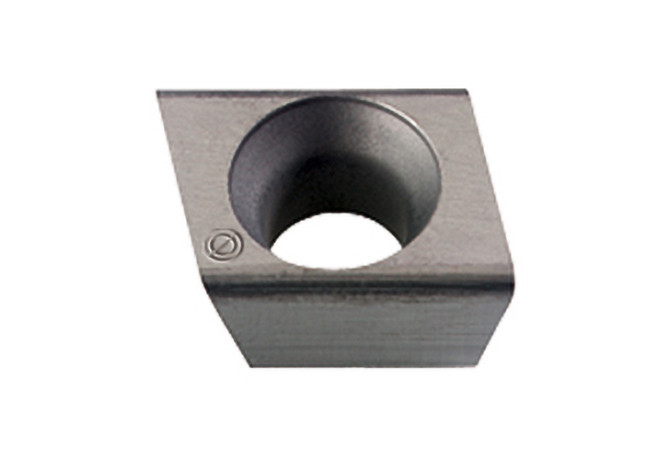

CDE313L021 IN05S

Артикул: 5867067

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

4.4 mm

Delivery state

LH - Stocked

DIN

IL-WSP-144

EPSR Insert included angle

78 Degree

FamilyProducts

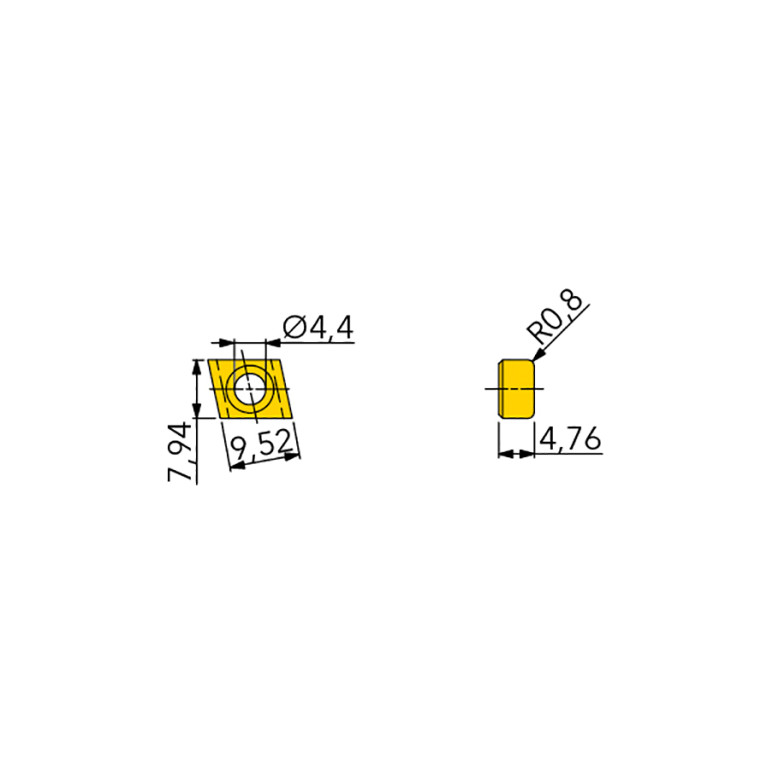

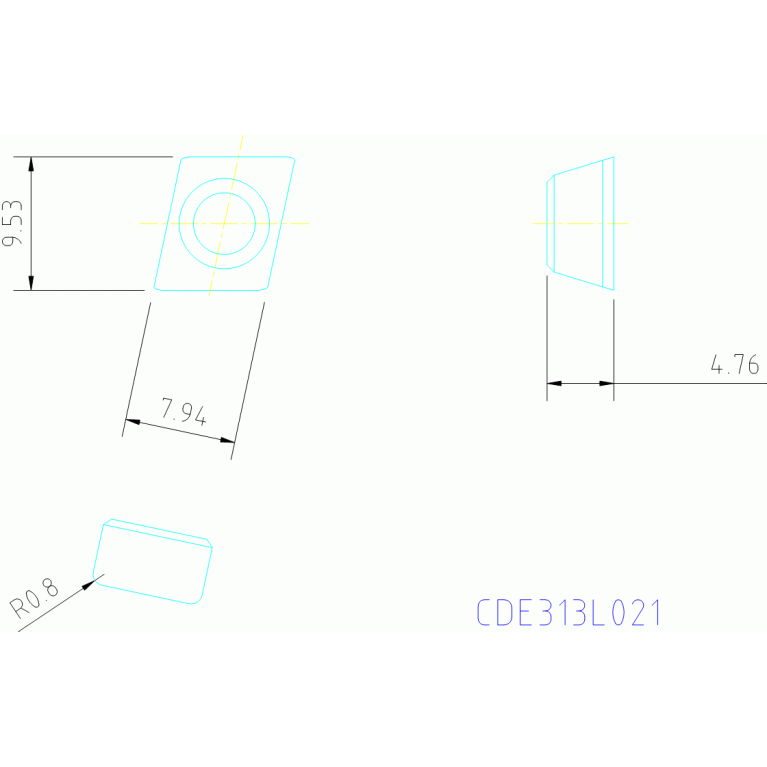

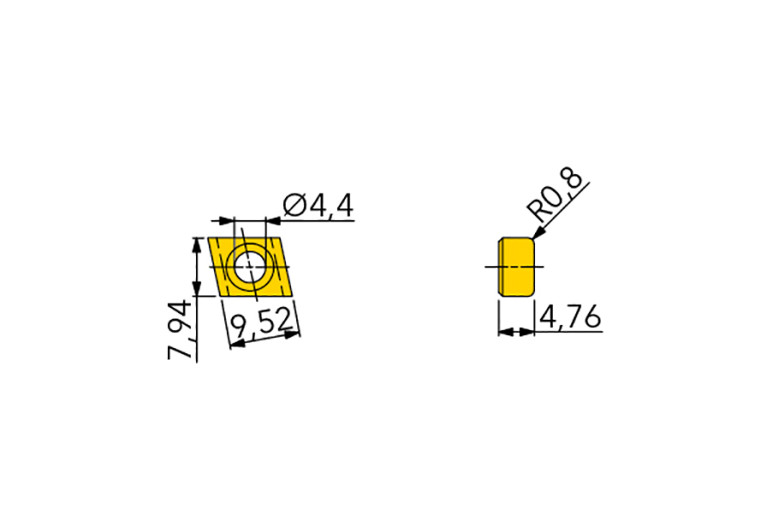

insert, double-edged, positive, rhombic with R0,8

GRDMFG Grade manufacturers designation

IN05S

GRDPRIO Standard designation of the grade main application

N10-N25

IC Inscribed circle diameter

9.53 mm

ID Technical product number

5867067

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

L - Left

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

5.8 mm

LE Cutting edge effective length

7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-WSP-144

Name Identifying order number

CDE313L021 IN05S

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

TCINS Tolerance class insert

Working process

FNB - Slotting
