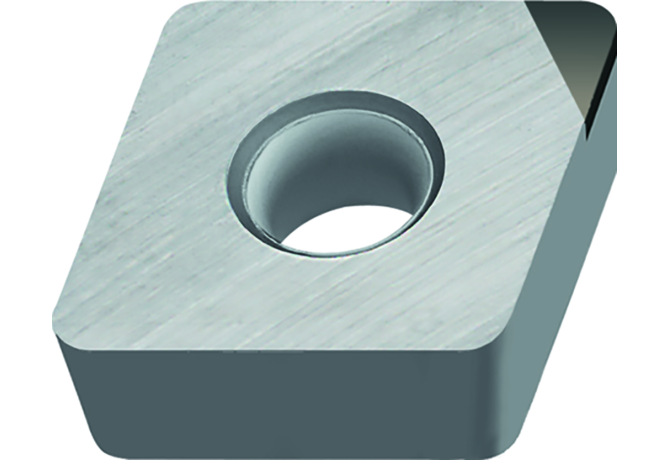

CCMW09T308 WCB50

CCMW09T308 WCB50 CCMW09T308 WCB50 CCMW09T308 WCB50 CCMW09T308 WCB50

CCMW09T308 WCB50

Walter
Артикул: 5043803
В наличии
В корзину
Описание
Характеристики

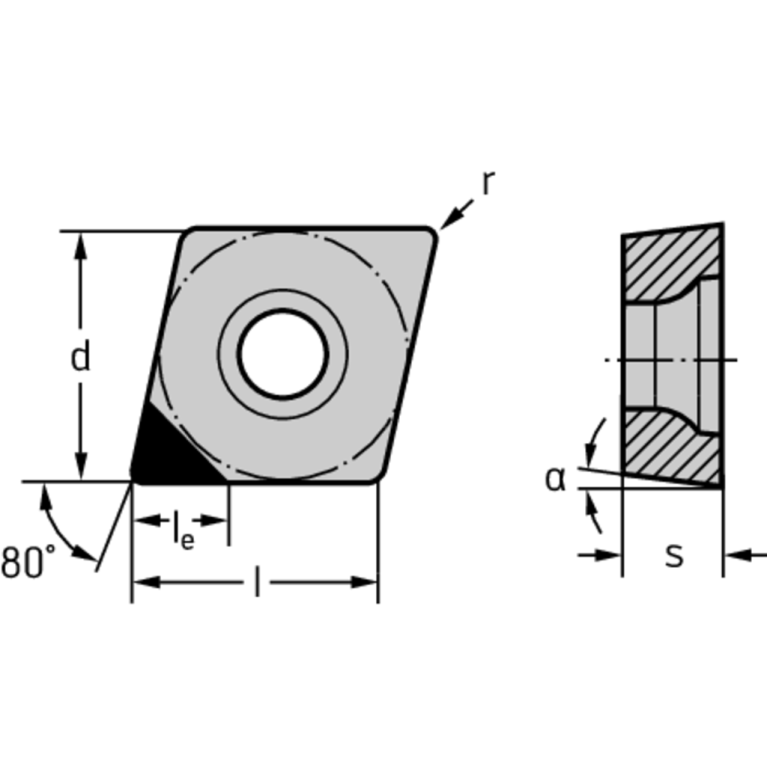

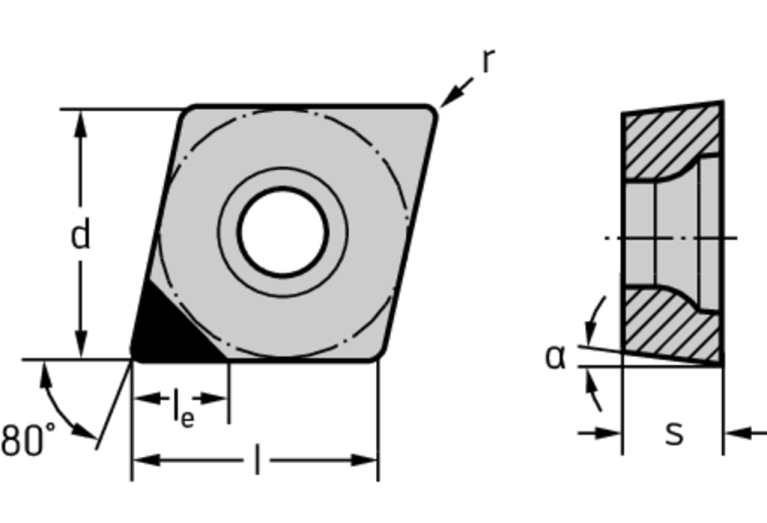

AN Clearance angle major
7 Degree
CB Chip breaker face count
1 - With chip breaker one-side
CBMD Chip breaker manufacturers designation
..MW
COMPC Company code
W - Walter
CSP Coolant supply property
0 - Without coolant supply
Delivery state valid from
12/1/2023
DIN
CC09T3083N
EPSR Insert included angle
80 Degree
FamilyProducts
CBN – Positive rhombic 80° CCMW
GRDMFG Grade manufacturers designation
WCB50
IC Inscribed circle diameter
9.525 mm
ID Technical product number
5043803
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
N - Neutral
Interface codes
J6 / J441
ISISO ISO property
1
ISO
ISO$CC09T3083NB$$08
ISYC Subclass
201-03 - Rhombic insert
L Cutting edge length
9.6719 mm
LE Cutting edge effective length
2.3 mm
LOC-03 ISO
ISO$CC09T3083NB$$08
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
CC09T3083N
Materials
K,H
MIID Master insert identification
CCMW09T308 WCB50
Name Identifying order number
CCMW09T308 WCB50
NameAnsi Identifying order number inch alternative
CCMW3(2.5)2 WCB50
NOI Insert index count
1
RE Corner radius
0.8 mm
S Insert thickness
3.96875 mm
S1 Insert thickness total
3.96875 mm
STDDES Standard designation
CCMW09T308
STDDESAnsi Standard designation ANSI
CCMW32.52
TCE Tipped cutting edge code
S
TCINS Tolerance class insert
M
Working process
No working processes available
WT Weight of item
0.01 kg
