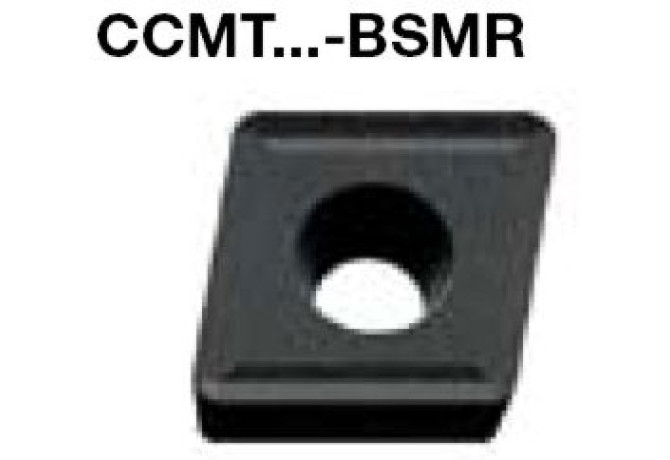

CCMT250924-BSMR LC610H

Артикул: CCMT250924-BSMR LC610H

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

BSMR

COMPC Company code

BK - Boehlerit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

8.6 mm

Delivery state valid from

2/1/2009

DIN

CC2509 3N

EPSR Insert included angle

80 Degree

FamilyProducts

80° Rhombic insert

GRD2ND Standard designation of the grade 2nd application

HC-K10

GRDMFG Grade manufacturers designation

LC610H

GRDPRIO Standard designation of the grade main application

HC-K15

IC Inscribed circle diameter

25.4 mm

ID Technical product number

CCMT250924-BSMR LC610H

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

25.8 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CC2509 3N

Name Identifying order number

CCMT250924-BSMR LC610H

RE Corner radius

2.4 mm

S Insert thickness

9.52 mm

S1 Insert thickness total

9.52 mm

STDDES Standard designation

CCMT250924

STDDESAnsi Standard designation ANSI

CCMT866

TCINS Tolerance class insert

Working process

DDA - External turning
