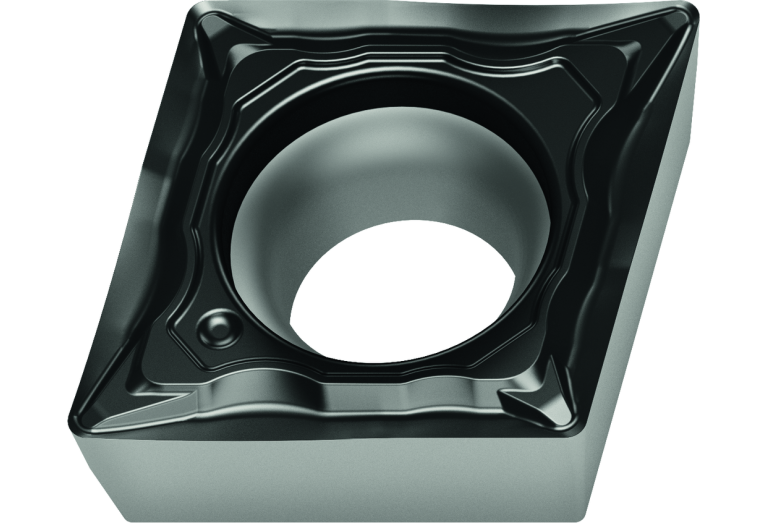

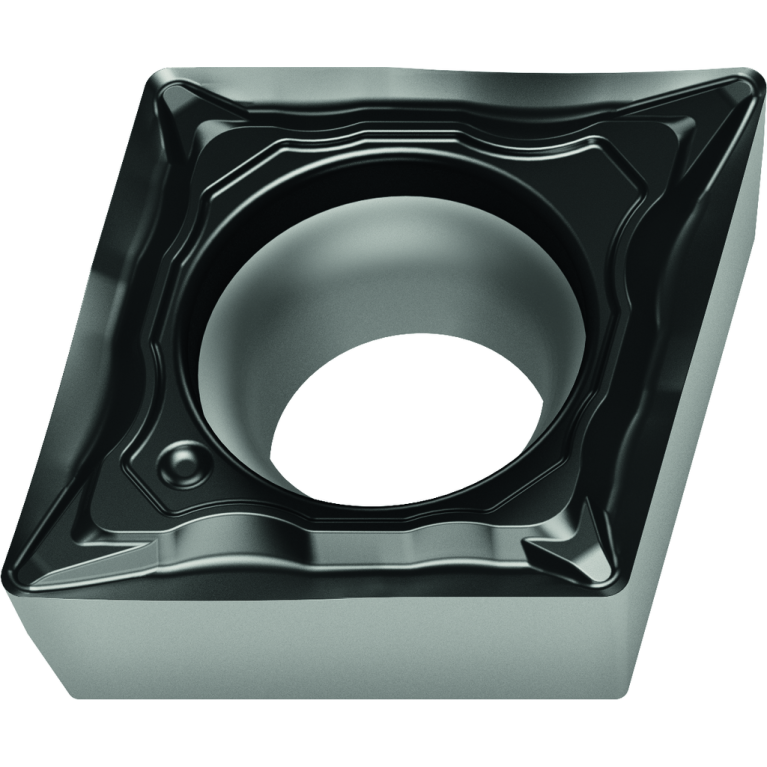

CCMT09T302-FM4 WMP20S

CCMT09T302-FM4 WMP20S CCMT09T302-FM4 WMP20S CCMT09T302-FM4 WMP20S CCMT09T302-FM4 WMP20S

CCMT09T302-FM4 WMP20S

Walter
Артикул: 6463536
В наличии
В корзину
Описание
Характеристики
AN Clearance angle major
7 Degree
CB Chip breaker face count
1 - With chip breaker one-side
CBMD Chip breaker manufacturers designation
FM4
CECC Cutting edge condition code
E - Rounded
COATN Coating / Покрытие
TiCN+Al2O3+(TiCN)
COMPC Company code
W - Walter
CSP Coolant supply property
0 - Without coolant supply
D1 Fixing hole diameter
4.4 mm
Delivery state valid from
12/1/2023
DIN
CC09T3023N

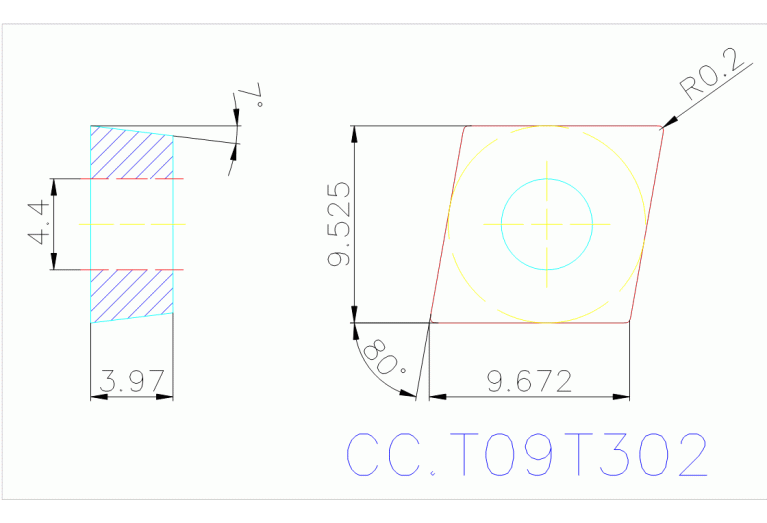

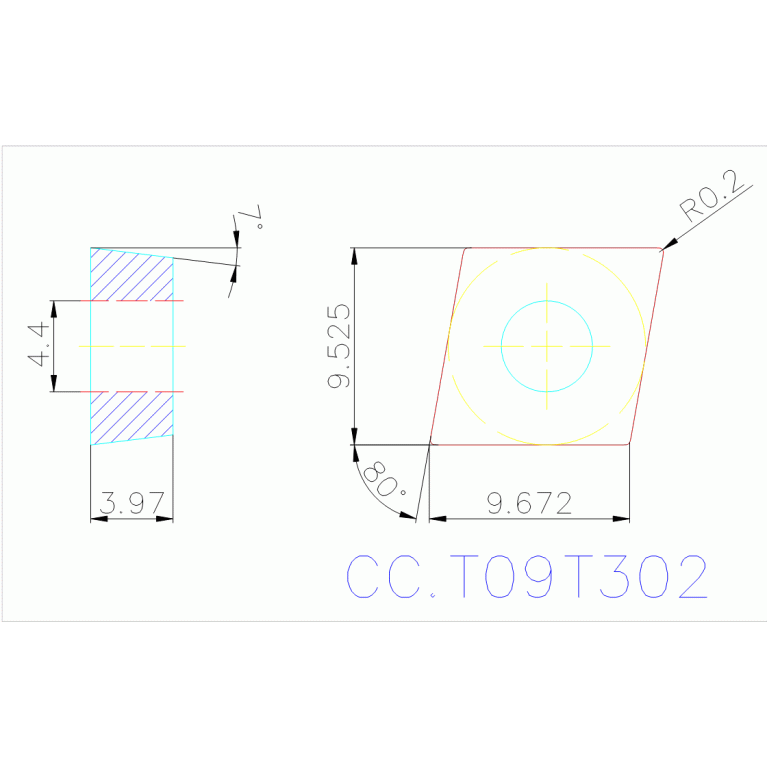

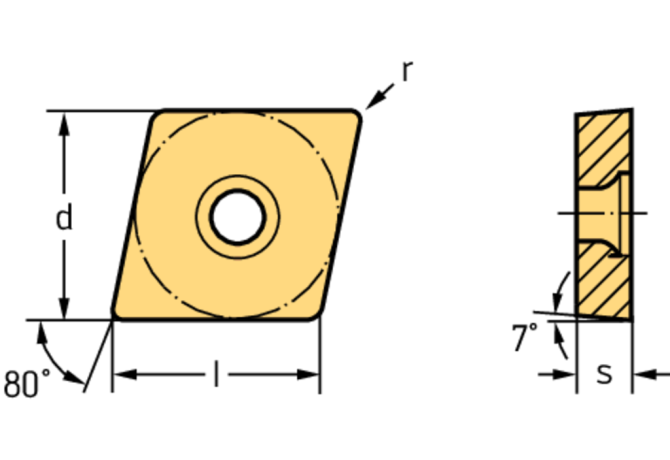

EPSR Insert included angle
80 Degree
FamilyProducts
Positive rhombic 80° CCMT
GRDMFG Grade manufacturers designation
WMP20S
IC Inscribed circle diameter
9.525 mm
ID Technical product number
6463536
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
N - Neutral
Interface codes
J6 / J441
ISISO ISO property
1
ISO
ISO$CC09T3023NB$$02
ISYC Subclass
201-03 - Rhombic insert
L Cutting edge length
9.672 mm
LOC-03 ISO
ISO$CC09T3023NB$$02
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
CC09T3023N
MIID Master insert identification
CCMT09T302 WMP20S
Name Identifying order number
CCMT09T302-FM4 WMP20S
NameAnsi Identifying order number inch alternative
CCMT3(2.5)0.5-FM4 WMP20S
NOI Insert index count
2
RE Corner radius
0.2 mm
S Insert thickness
3.969 mm
S1 Insert thickness total
3.969 mm
STDDES Standard designation
CCMT09T302
TCE Tipped cutting edge code
S
TCINS Tolerance class insert
M
Working process
No working processes available
WT Weight of item
0.004 kg
