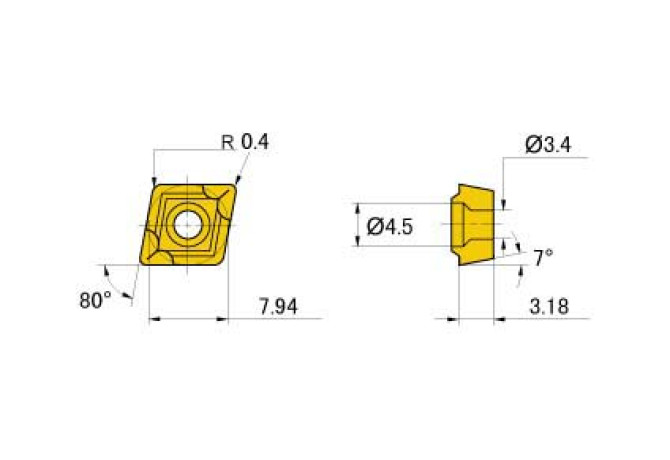

CCMT080302 US735

Артикул: CCMT080302 US735

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COATN Coating / Покрытие

Ti-Verb.

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

3.4 mm

Delivery state valid from

4/1/2022

DIN

CC0803023N

EPSR Insert included angle

80 Degree

FamilyProducts

INSERT, TURNING, COATED

GAN Insert rake angle

0 Degree

GRD2ND Standard designation of the grade 2nd application

HC-P30

GRD3RD Standard designation of the grade 3rd application

HC-P40

GRDMFG Grade manufacturers designation

US735

GRDPRIO Standard designation of the grade main application

HC-M30

IC Inscribed circle diameter

7.94 mm

ID Technical product number

CCMT080302 US735

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

8.06 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CC0803023N

Name Identifying order number

CCMT080302 US735

RE Corner radius

0.2 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

CCMT080302

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning

WT Weight of item

0.096 kg
