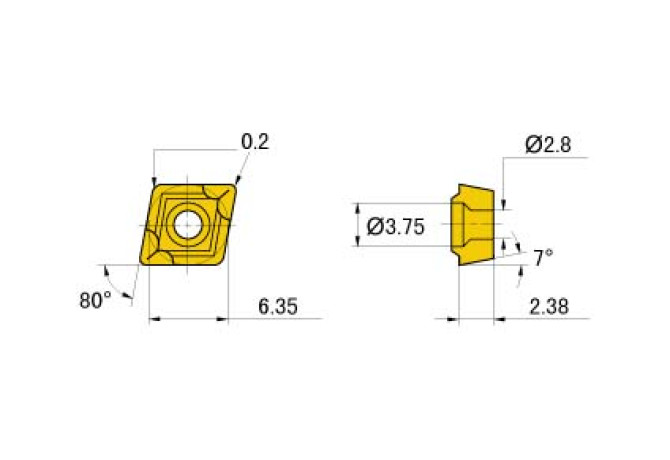

CCMT060202 UE6010

Артикул: CCMT060202 UE6010

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

BN Face land width

0.1 mm

CB Chip breaker face count

1 - With chip breaker one-side

COATN Coating / Покрытие

TiCN-Al2O3

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.8 mm

Delivery state valid from

4/1/2022

DIN

CC0602023N

EPSR Insert included angle

80 Degree

FamilyProducts

INSERT, TURNING, COATED

GAN Insert rake angle

18 Degree

GB Face land angle

0 Degree

GRDMFG Grade manufacturers designation

UE6010

IC Inscribed circle diameter

6.35 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

6.44 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CC0602023N

Name Identifying order number

CCMT060202 UE6010

RE Corner radius

0.2 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

CCMT060202

TCINS Tolerance class insert

Working process

BAB - Open by boring,DDA - External turning,DDI - Internal turning
