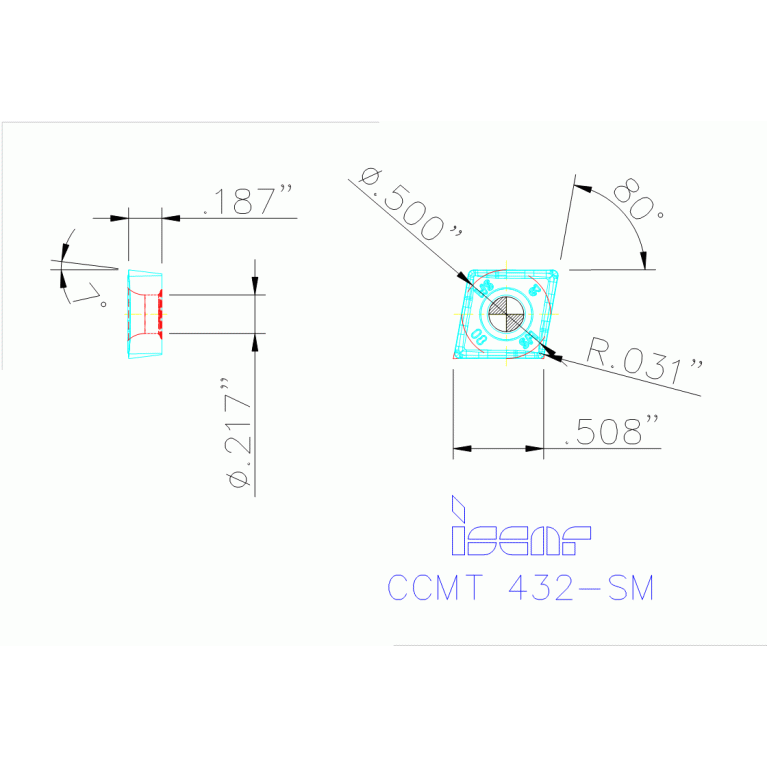

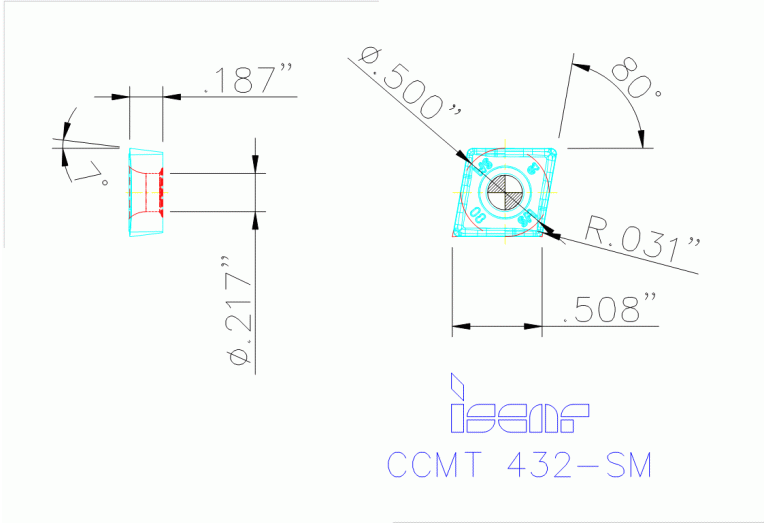

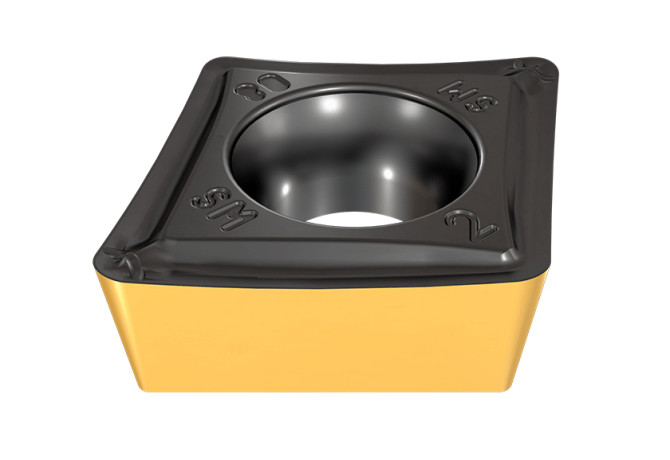

CCMT 120408-SM IC6015

Артикул: 5566964

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

COATN Coating / Покрытие

TiCN+Al2O3+TiN

COMPC Company code

IS - Iscar

D1 Fixing hole diameter

5.5 mm

Delivery state valid from

4/1/2022

DIN

CC1204083N

EPSR Insert included angle

80 Degree

FamilyProducts

Single-Sided Turning Inserts for Semi-Finish and Finishing on Soft Materials and Exotic Alloys

GRDMFG Grade manufacturers designation

IC6015

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5566964

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$CC1204083NB$$08

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

12.9 mm

LOC-03 ISO

ISO$CC1204083NB$$08

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CC1204083N

Name Identifying order number

CCMT 120408-SM IC6015

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

Working process

No working processes available

WT Weight of item

0.01 kg
