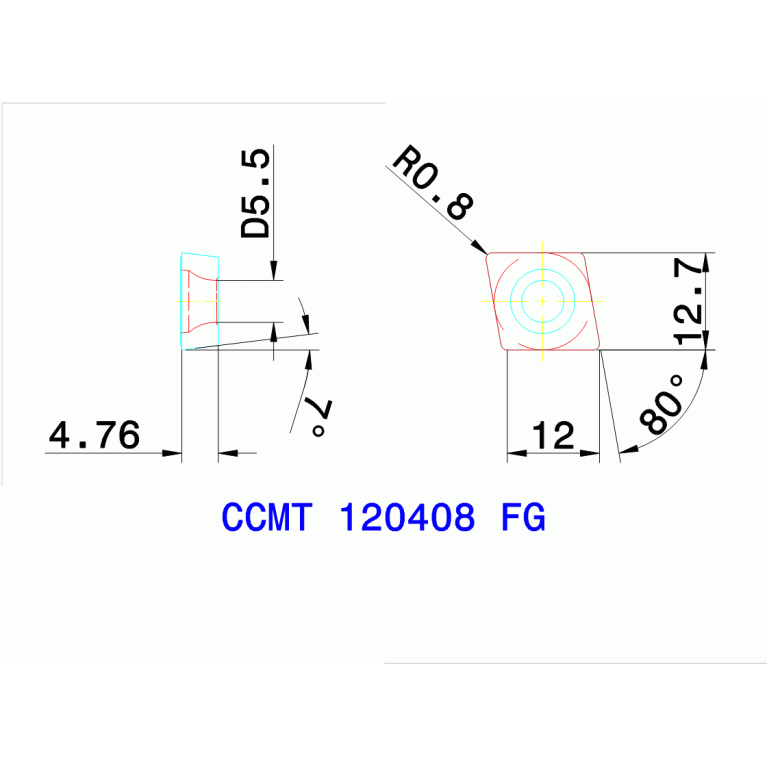

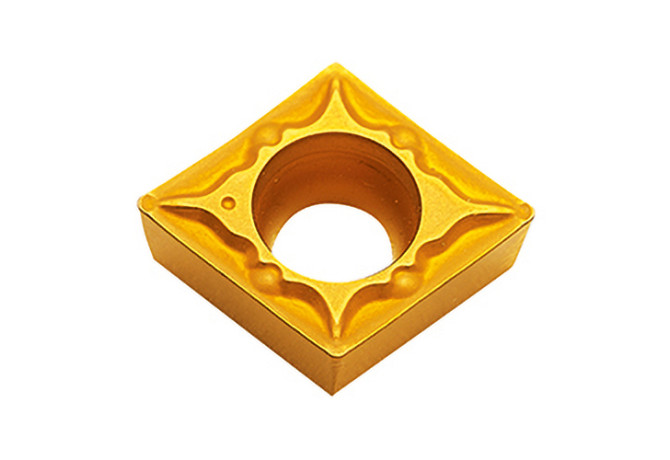

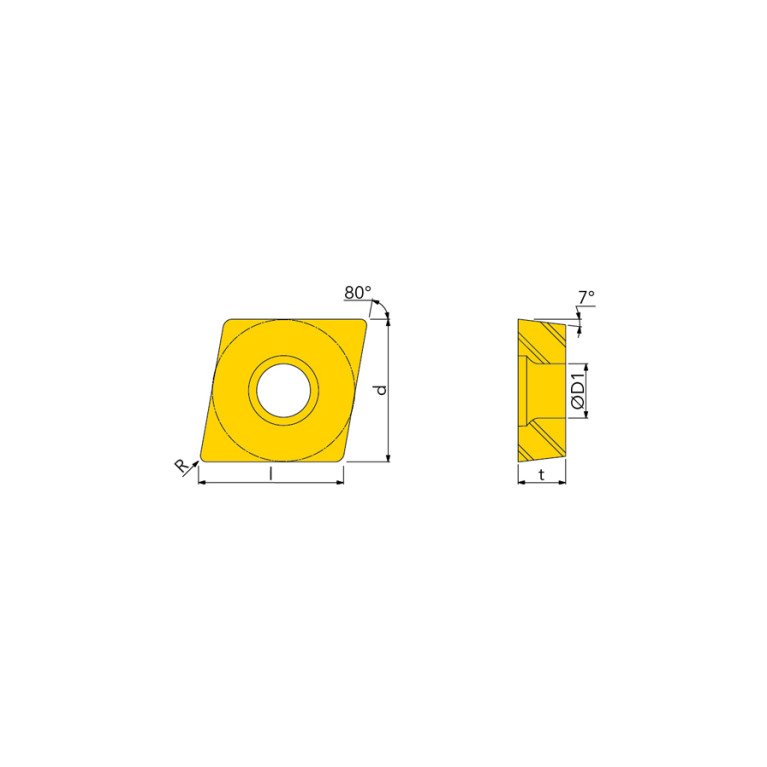

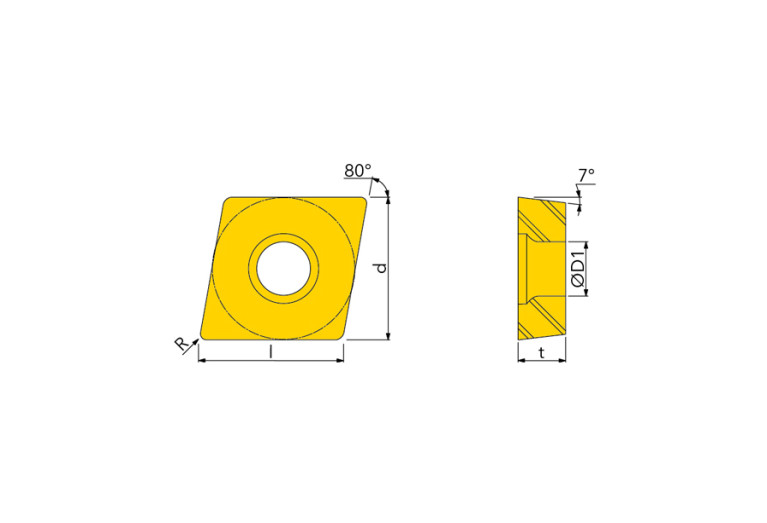

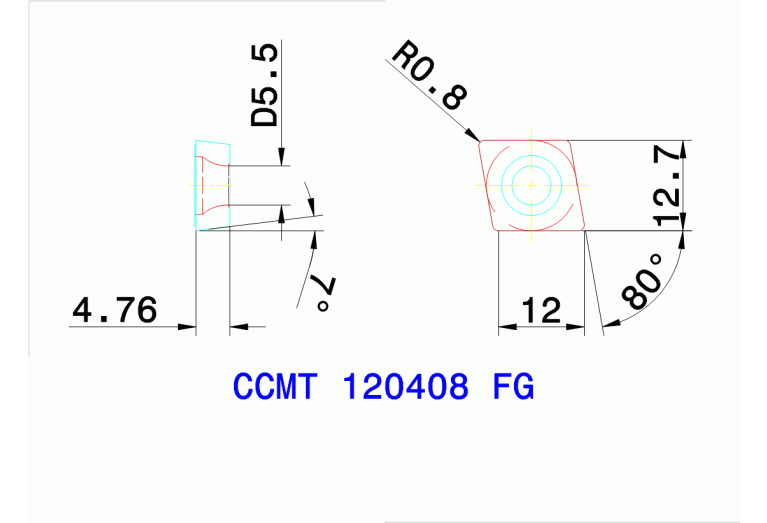

CCMT 120408 FG TT5080

Артикул: 5523113

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiAlN+TiN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

5.5 mm

Delivery state

LL - Stock limited

DIN

CC1204083N

EPSR Insert included angle

80 Degree

FamilyProducts

insert, Chipbreaker, positive 7° clearance 80° rhombic inserts for finishing

GRD2ND Standard designation of the grade 2nd application

M05-M25

GRD3RD Standard designation of the grade 3rd application

S05-S25

GRDMFG Grade manufacturers designation

TT5080

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5523113

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

12 mm

LE Cutting edge effective length

1 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CC1204083N

Name Identifying order number

CCMT 120408 FG TT5080

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

CCMT120408

STDDESAnsi Standard designation ANSI

CCMT432

TCINS Tolerance class insert

Working process

No working processes available
