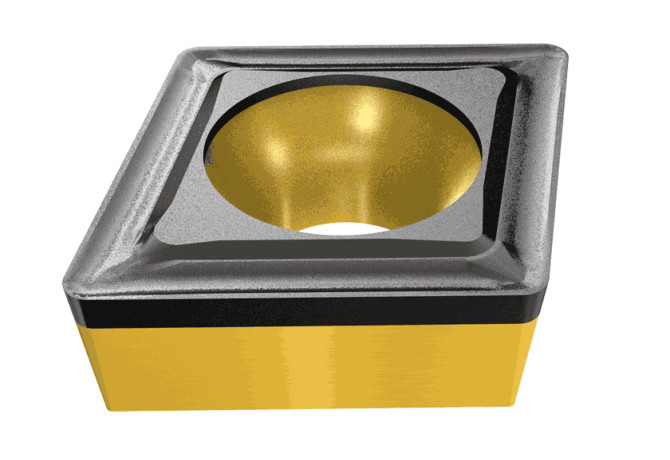

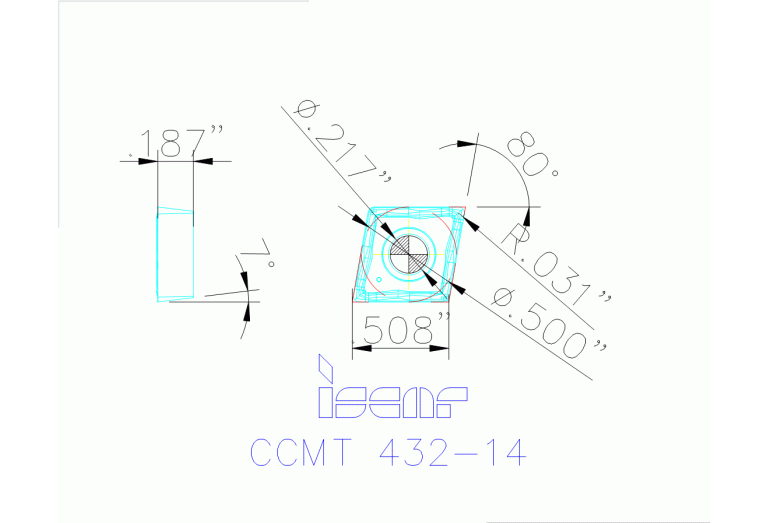

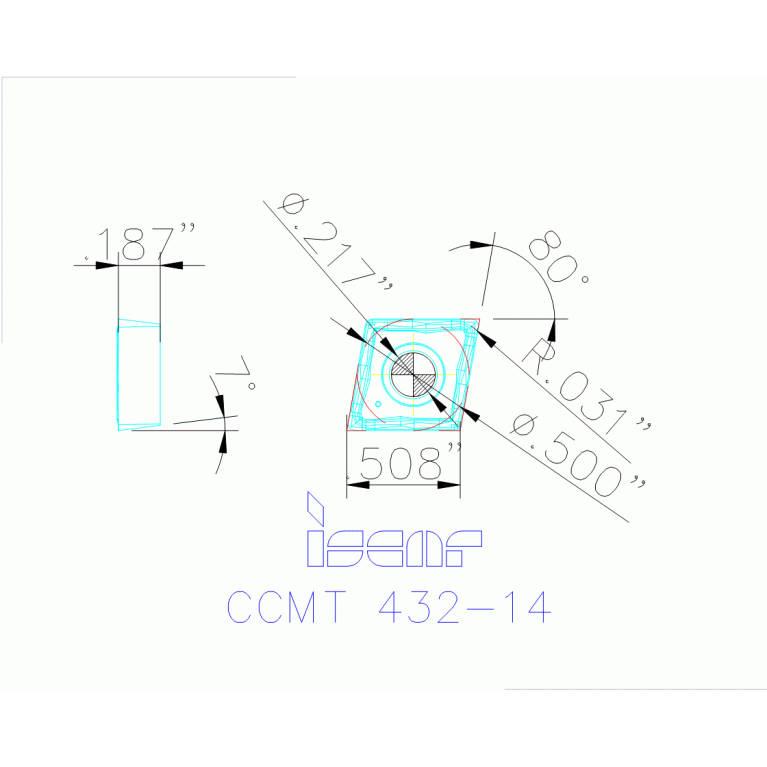

CCMT 120408-14 IC830

Артикул: 5568582

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

COATN Coating / Покрытие

AlTiN+TiN

COMPC Company code

IS - Iscar

D1 Fixing hole diameter

5.5 mm

Delivery state valid from

4/1/2022

DIN

CC1204083N

EPSR Insert included angle

80 Degree

FamilyProducts

80° Rhombic Inserts with a 7° Positive Flank for Semi-Finishing and Finish Turning

GRDMFG Grade manufacturers designation

IC830

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5568582

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$CC1204083NB$$08

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

12.9 mm

LOC-03 ISO

ISO$CC1204083NB$$08

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CC1204083N

Name Identifying order number

CCMT 120408-14 IC830

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

Working process

No working processes available
