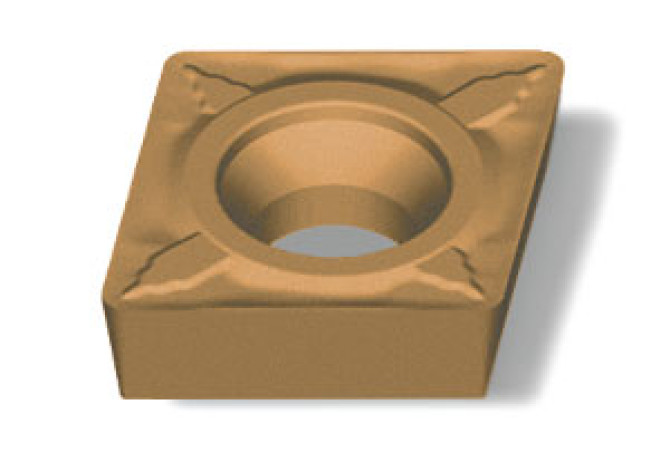

CCMT 120404EN-SMF TCC410

Артикул: 11103339

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

SMF

CECC Cutting edge condition code

E - Rounded

COMPC Company code

CE - Ceratizit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.5 mm

DIN

CC1204043N

EPSR Insert included angle

80 Degree

FamilyProducts

Cermet turning insert

GRD2ND Standard designation of the grade 2nd application

HT-M10

GRD3RD Standard designation of the grade 3rd application

HT-K05

GRDMFG Grade manufacturers designation

TCC410

GRDPRIO Standard designation of the grade main application

HT-P10

IC Inscribed circle diameter

12.7 mm

ID Technical product number

11103339

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

12.9 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CC1204043N

Materials

P,M,K

Name Identifying order number

CCMT 120404EN-SMF TCC410

RE Corner radius

0.4 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

CCMT120404EN

STDDESAnsi Standard designation ANSI

CCMT431EN

TCINS Tolerance class insert

Working process

No working processes available
