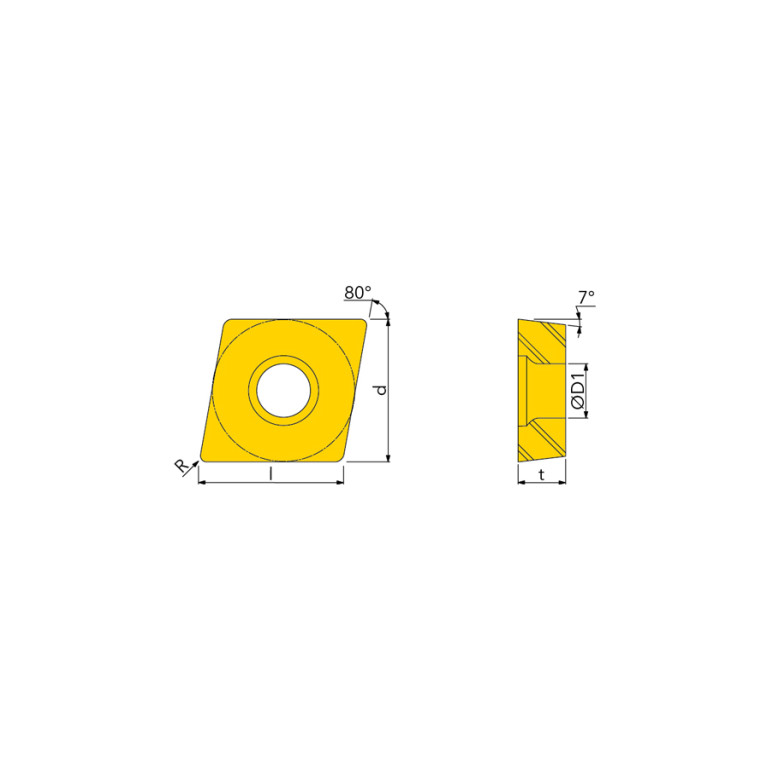

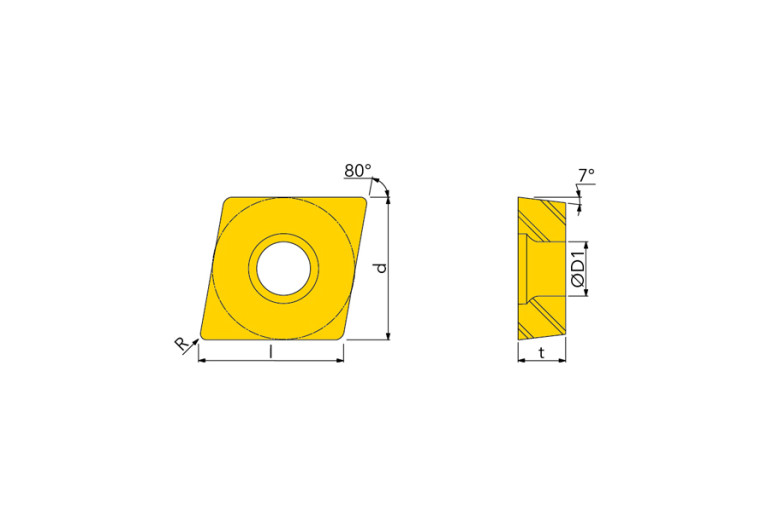

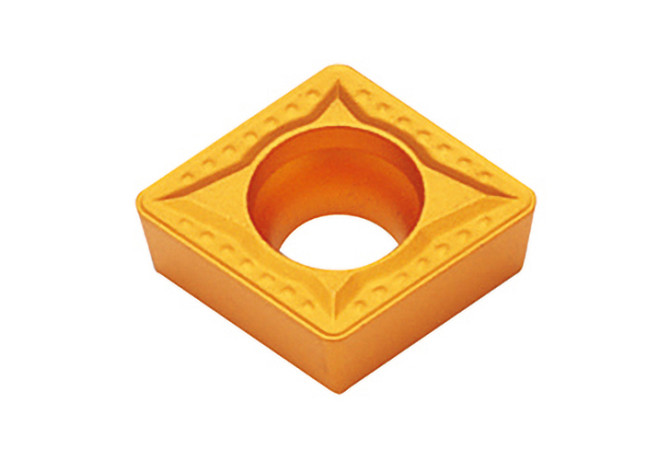

CCMT 120404 MT TT5100

Артикул: 5515099

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiCN+Al2O3+TiN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

5.5 mm

Delivery state

LL - Stock limited

DIN

CC1204043N

EPSR Insert included angle

80 Degree

FamilyProducts

insert, Chipbreaker, positive 7° clearance 80° rhombic inserts for medium machining

GRD2ND Standard designation of the grade 2nd application

M20-M35

GRDMFG Grade manufacturers designation

TT5100

GRDPRIO Standard designation of the grade main application

P20-P35

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5515099

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

12.4 mm

LE Cutting edge effective length

2 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CC1204043N

Name Identifying order number

CCMT 120404 MT TT5100

RE Corner radius

0.4 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

CCMT120404

STDDESAnsi Standard designation ANSI

CCMT431

TCINS Tolerance class insert

Working process

No working processes available
