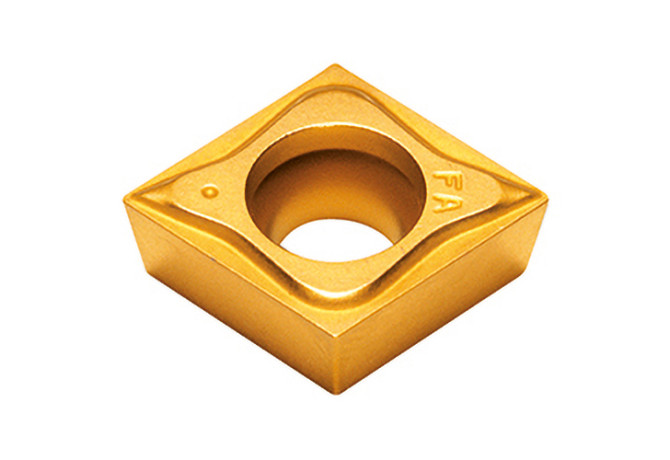

CCMT 09T302 FA ZA TT5030

Артикул: 5515925

В наличии

В корзину

Описание

Характеристики

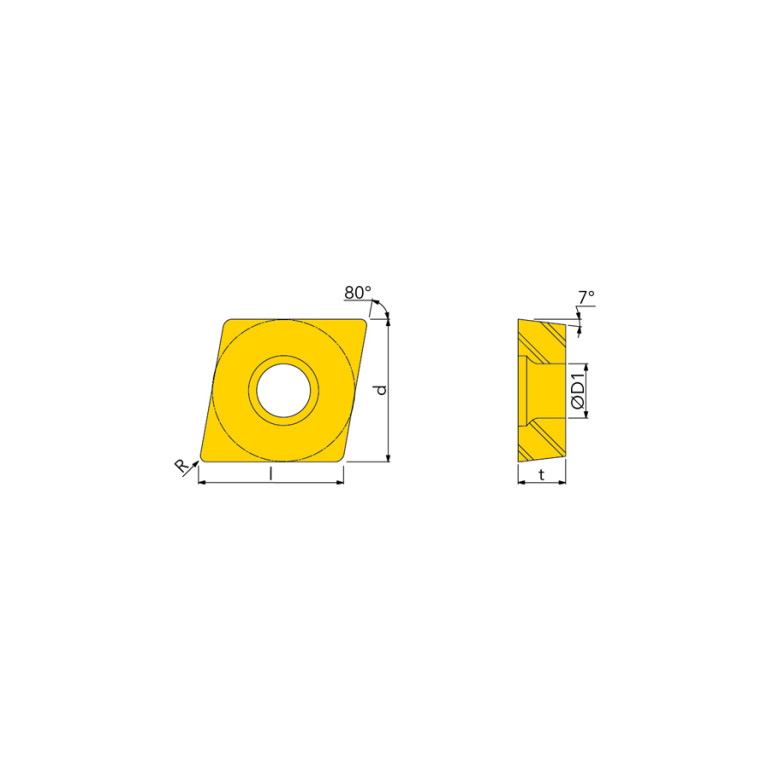

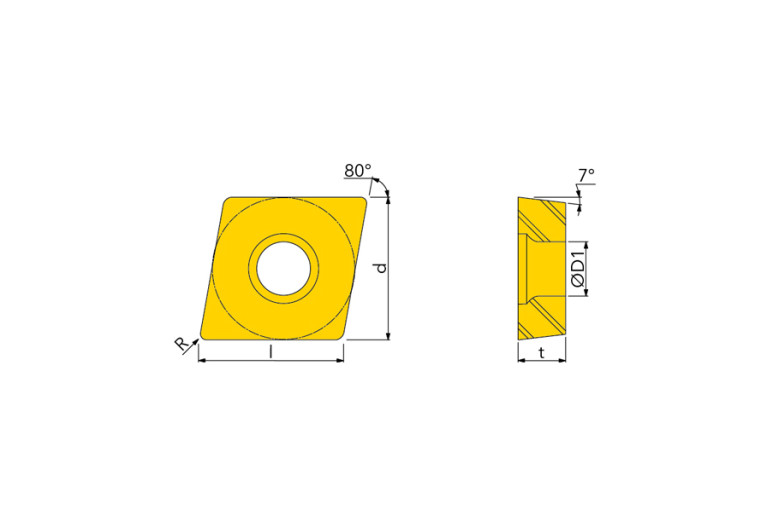

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

4.4 mm

Delivery state

NL - Discontinued

DIN

CC09T3023N

EPSR Insert included angle

80 Degree

FamilyProducts

insert, Chipbreaker, positive 7° clearance 80° rhombic inserts for super finishing

GRDMFG Grade manufacturers designation

ZA TT5030

IC Inscribed circle diameter

9.52 mm

ID Technical product number

5515925

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

9.4 mm

LE Cutting edge effective length

0.3 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CC09T3023N

Name Identifying order number

CCMT 09T302 FA ZA TT5030

RE Corner radius

0.2 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

CCMT09T302

TCINS Tolerance class insert

Working process

No working processes available
