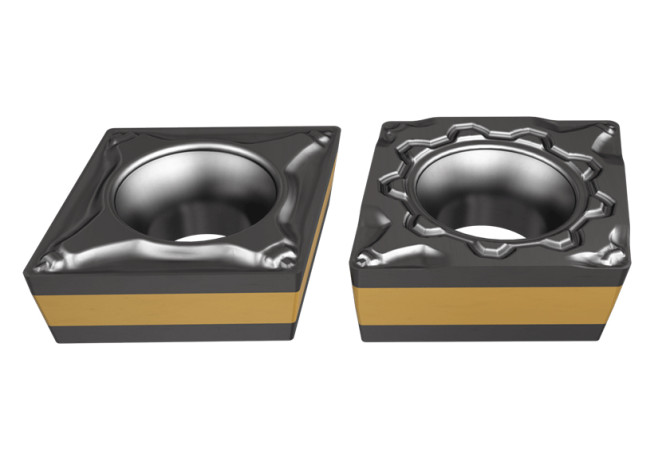

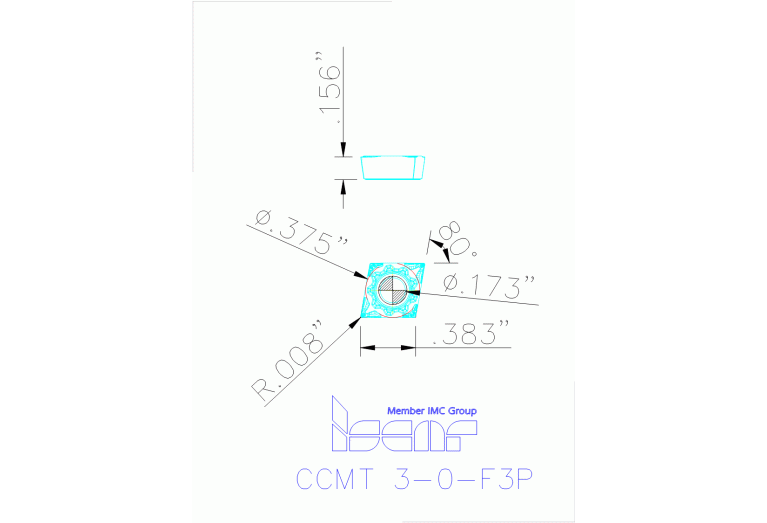

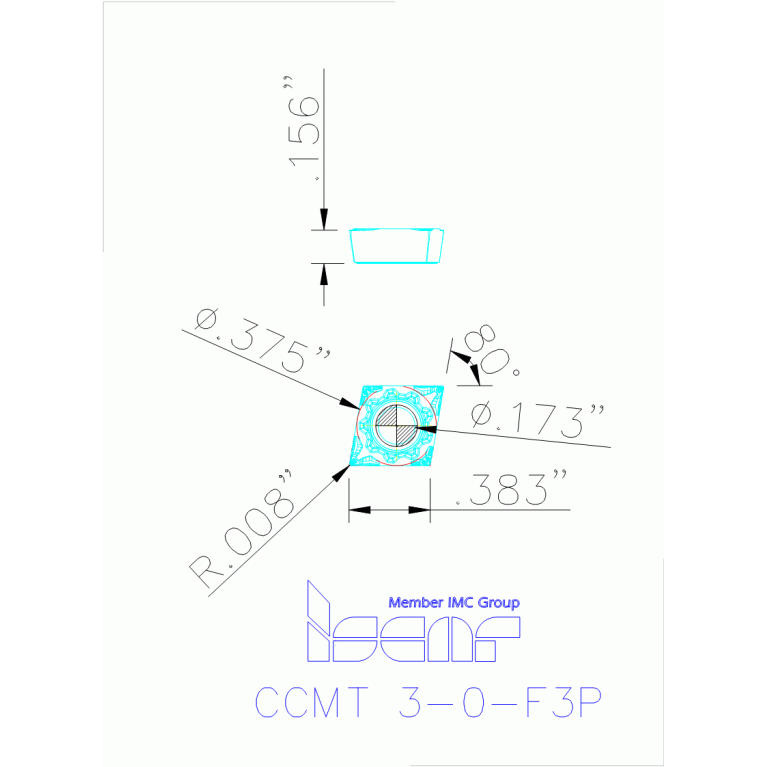

CCMT 09T302-F3P IC807

Артикул: 3358928

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

F3P

COATN Coating / Покрытие

TiAlN+TiN

COMPC Company code

IS - Iscar

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

4/1/2022

DIN

CC09T3023N

EPSR Insert included angle

80 Degree

FamilyProducts

80° Rhombic Positive Flank Inserts for Semi-Finishing and Finishing Turning of Steel

GRDMFG Grade manufacturers designation

IC807

IC Inscribed circle diameter

9.52 mm

ID Technical product number

3358928

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$CC09T3023NB$$02

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

9.7 mm

LOC-03 ISO

ISO$CC09T3023NB$$02

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CC09T3023N

Name Identifying order number

CCMT 09T302-F3P IC807

RE Corner radius

0.2 mm

S Insert thickness

3.97 mm

Working process

No working processes available
