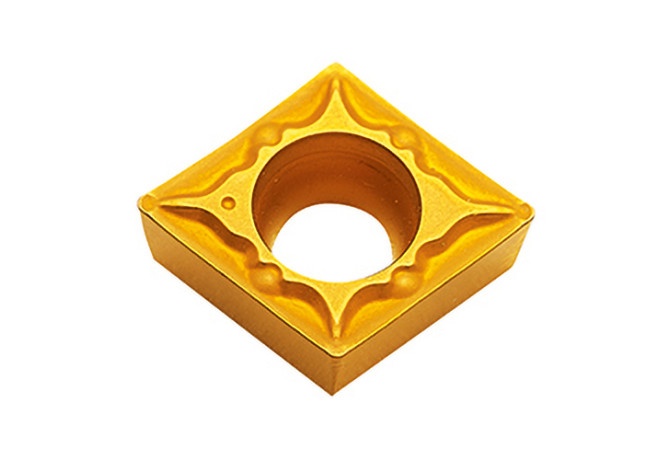

CCMT 060204 FG TT9225

Артикул: 5520530

В наличии

В корзину

Описание

Характеристики

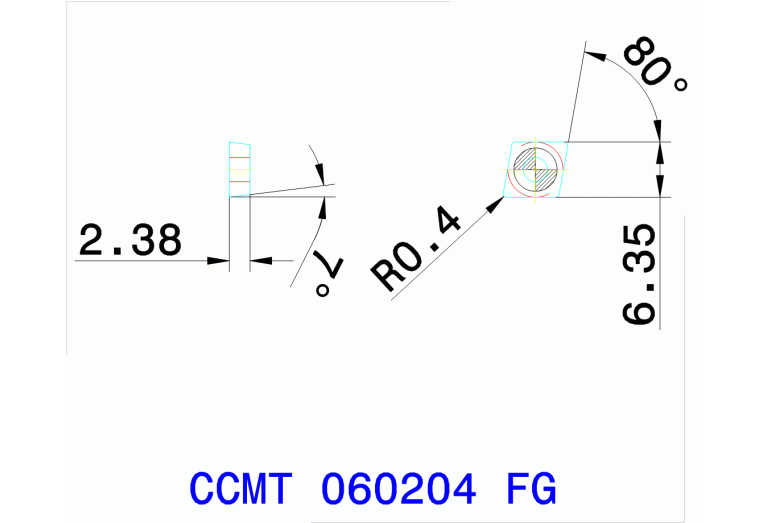

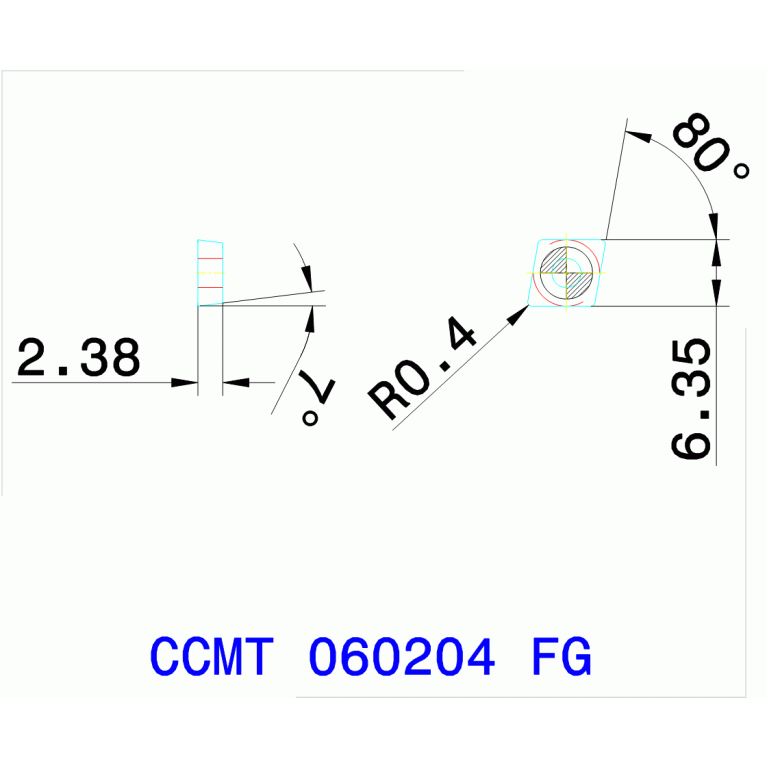

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiCN+Al2O3+TiN

COMPC Company code

IL - Ingersoll

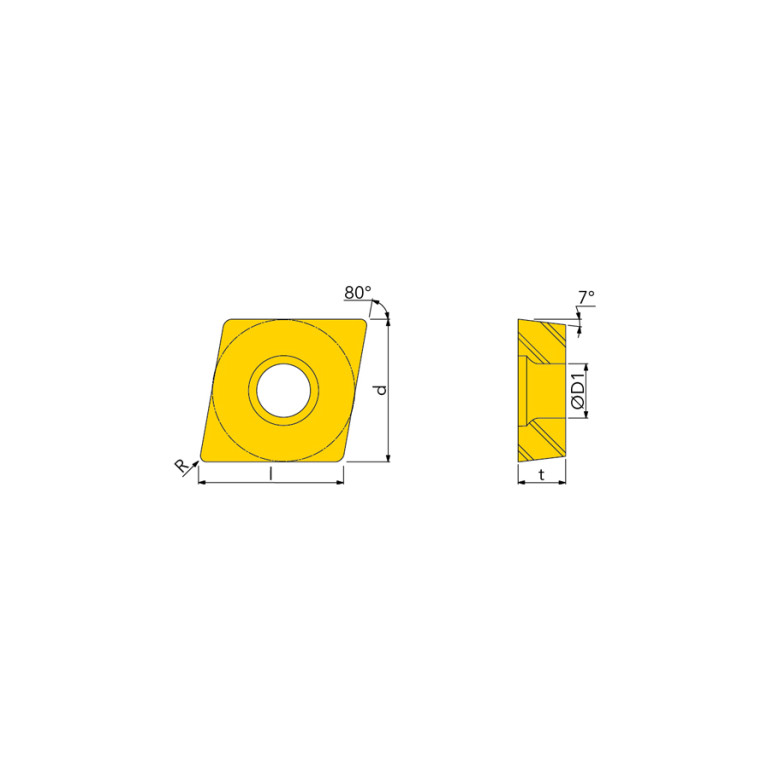

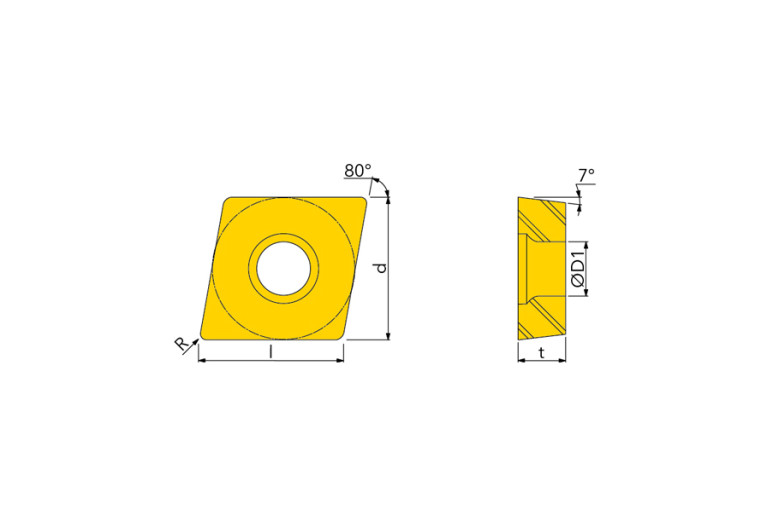

D1 Fixing hole diameter

2.8 mm

Delivery state

LL - Stock limited

DIN

CC0602043N

EPSR Insert included angle

80 Degree

FamilyProducts

insert, Chipbreaker, positive 7° clearance 80° rhombic inserts for finishing

GRD2ND Standard designation of the grade 2nd application

M15-M30

GRD3RD Standard designation of the grade 3rd application

S15-S30

GRDMFG Grade manufacturers designation

TT9225

IC Inscribed circle diameter

6.35 mm

ID Technical product number

5520530

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

6 mm

LE Cutting edge effective length

0.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CC0602043N

Name Identifying order number

CCMT 060204 FG TT9225

RE Corner radius

0.4 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

CCMT060204

STDDESAnsi Standard designation ANSI

CCMT21.51

TCINS Tolerance class insert

Working process

No working processes available
