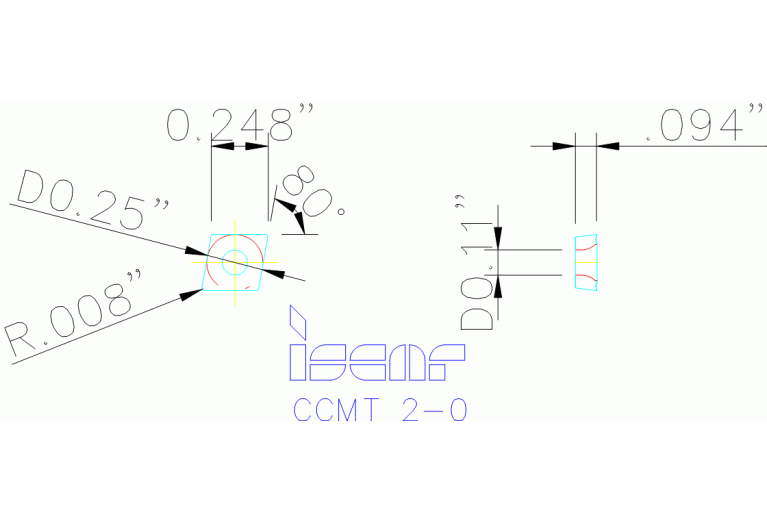

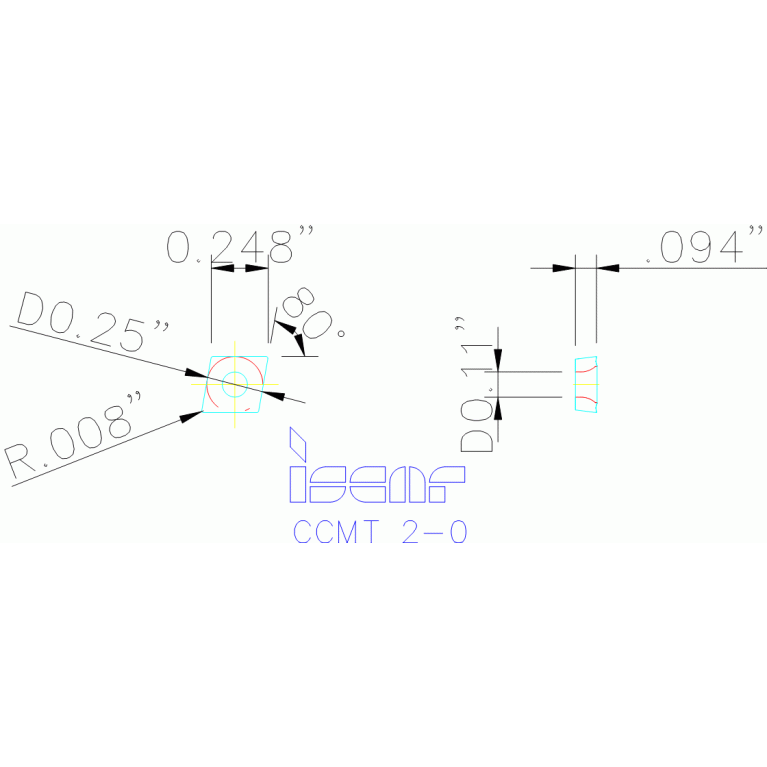

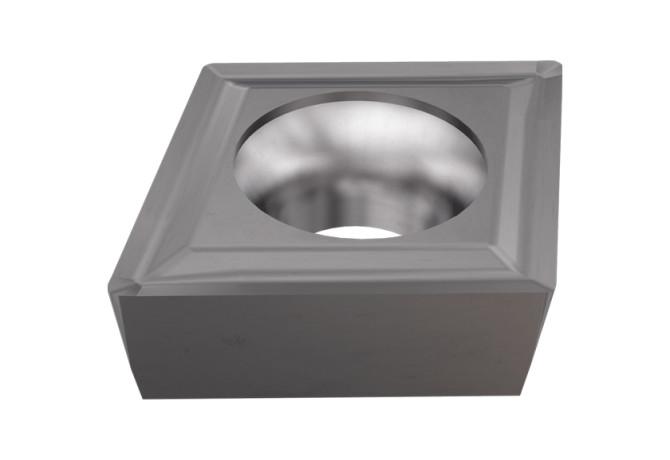

CCMT 060202 IC8250

Артикул: 5550206

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

COATN Coating / Покрытие

TiCN+Al2O3+TiN

COMPC Company code

IS - Iscar

D1 Fixing hole diameter

2.8 mm

Delivery state valid from

4/1/2022

DIN

CC0602023N

EPSR Insert included angle

80 Degree

FamilyProducts

80° Rhombic Inserts with a 7° Positive Flank for Semi-Finishing and Finish Turning

GRDMFG Grade manufacturers designation

IC8250

IC Inscribed circle diameter

6.35 mm

ID Technical product number

5550206

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$CC0602023NBLZ02

ISYC Subclass

201-03 - Rhombic insert

KRINS Cutting edge angle major

95 Degree

L Cutting edge length

6.45 mm

LOC-03 ISO

ISO$CC0602023NBLZ02

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CC0602023N

Name Identifying order number

CCMT 060202 IC8250

RE Corner radius

0.2 mm

S Insert thickness

2.38 mm

Working process

No working processes available
