CCGW09T304S59N-0AB-FP823

CCGW09T304S59N-0AB-FP823 CCGW09T304S59N-0AB-FP823 CCGW09T304S59N-0AB-FP823

CCGW09T304S59N-0AB-FP823

Mapal
Артикул: CCGW09T304 S59 N-0AB-FP823
В наличии
В корзину
Описание
Характеристики

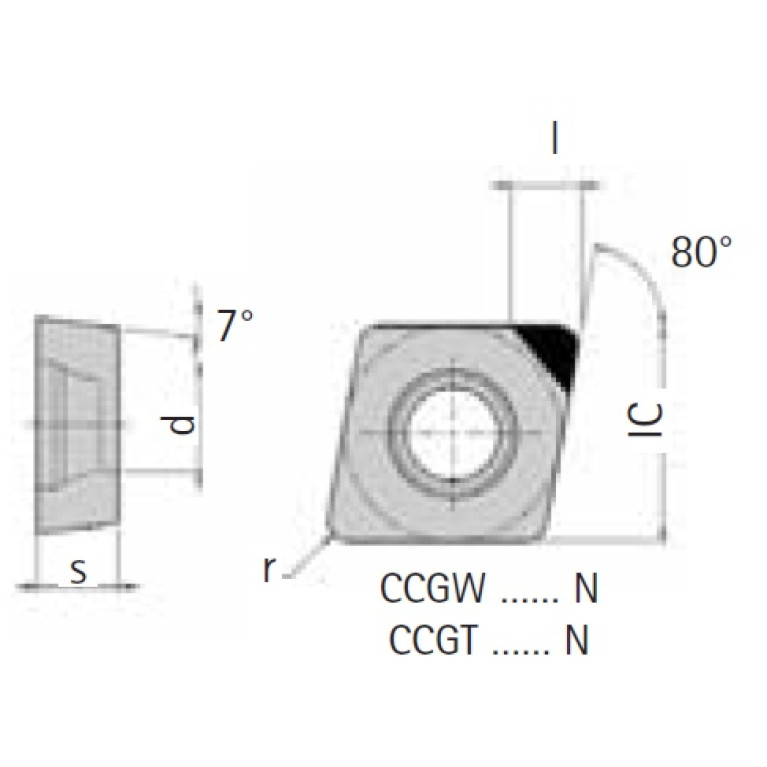

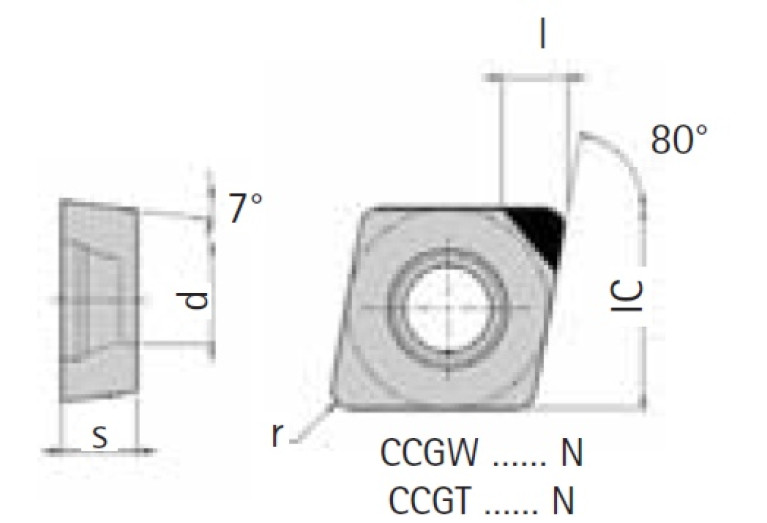

AN Clearance angle major
7 Degree
CB Chip breaker face count
0 - Without chip breaker
CBMD Chip breaker manufacturers designation
S59
CECC Cutting edge condition code
S - Chamfered and rounded
COMPC Company code
MP - Mapal
CSP Coolant supply property
0 - Without coolant supply
D1 Fixing hole diameter
4.4 mm
Delivery state valid from
7/10/2012
DIN
CC09T3 3N
EPSR Insert included angle
80 Degree
FamilyProducts

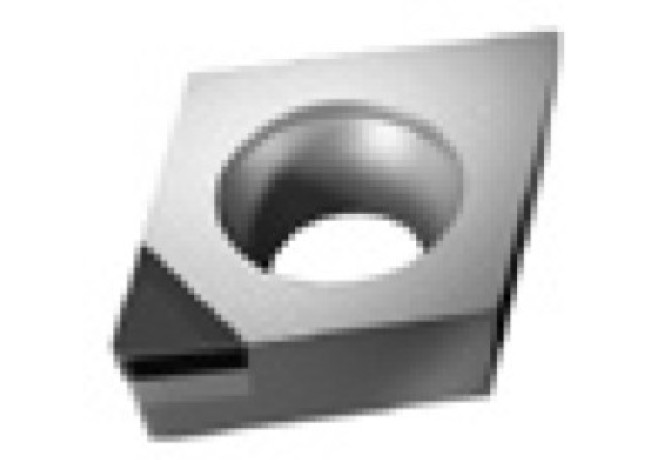

indexable CBN insert CCGW type
GRDMFG Grade manufacturers designation
FP823
IC Inscribed circle diameter
9.52 mm
ID Technical product number
CCGW09T304 S59 N-0AB-FP823
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
N - Neutral
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-03 - Rhombic insert
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
CC09T3 3N
Name Identifying order number
CCGW09T304S59N-0AB-FP823
RE Corner radius
0.4 mm
S Insert thickness
3.97 mm
S1 Insert thickness total
3.97 mm
STDDES Standard designation
CCGW09T304
STDDESAnsi Standard designation ANSI
CCGW32.51
TCE Tipped cutting edge code
B
TCINS Tolerance class insert
G
Working process
DDA - External turning,DDI - Internal turning
