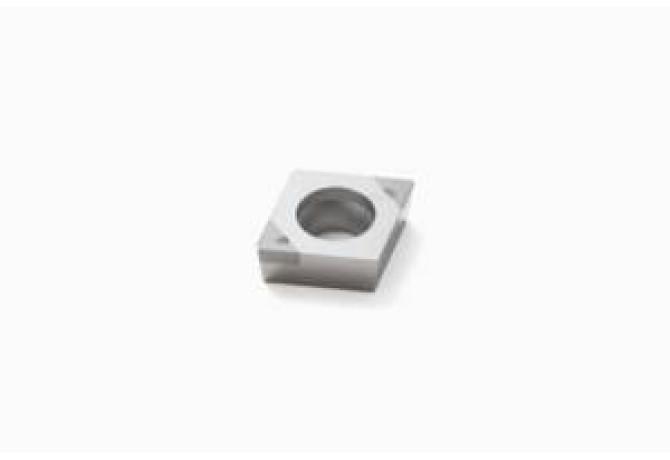

CCGW09T304E-L1-WZ-B CBN010

CCGW09T304E-L1-WZ-B CBN010 CCGW09T304E-L1-WZ-B CBN010 CCGW09T304E-L1-WZ-B CBN010

CCGW09T304E-L1-WZ-B CBN010

Seco
Артикул: 02866865
В наличии
В корзину
Описание
Характеристики

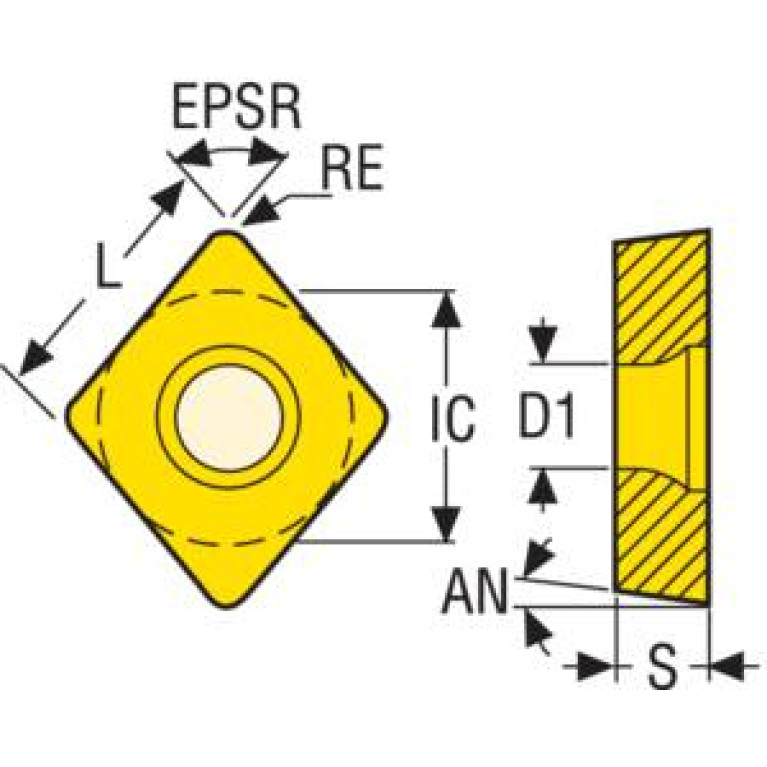

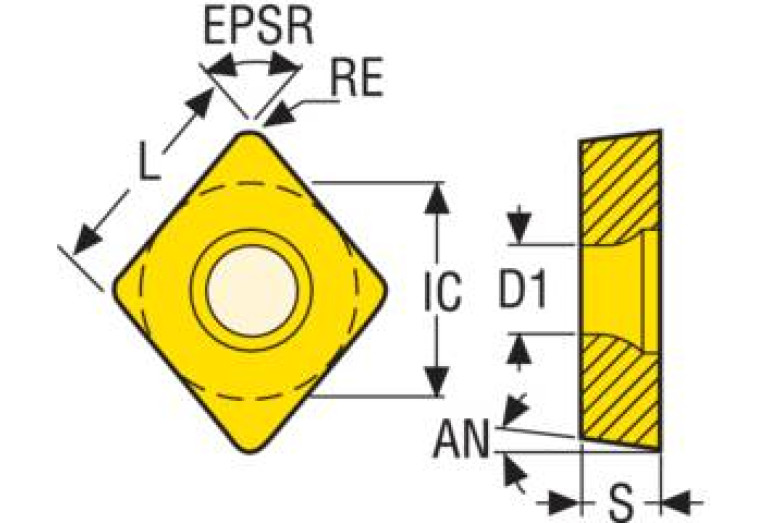

AN Clearance angle major
7 Degree
CB Chip breaker face count
0 - Without chip breaker
CECC Cutting edge condition code
E - Rounded
COMPC Company code
SO - SECO Tools
Delivery state valid from
3/14/2020
DIN
CC09T3043N
EPSR Insert included angle
80 Degree
FamilyProducts
CCGW09T304E-L1-WZ-B CBN010
GRDMFG Grade manufacturers designation
CBN010
IC Inscribed circle diameter
9.525 mm
ID Technical product number
02866865
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
N - Neutral
Interface codes
J6 / J441
ISISO ISO property
1
ISO
ISO$CC09T3043NA$$04
ISYC Subclass
201-03 - Rhombic insert
L Cutting edge length
9.7 mm
LE Cutting edge effective length
3.7 mm
LOC-03 ISO
ISO$CC09T3043NA$$04
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
CC09T3043N
MIID Master insert identification
CCGW09T304E CBN010
Name Identifying order number
CCGW09T304E-L1-WZ-B CBN010
NameAnsi Identifying order number inch alternative
CCGW32.51E-L1-WZ-B CBN010
NOI Insert index count
2
RE Corner radius
0.4 mm
S Insert thickness
3.97 mm
S1 Insert thickness total
3.97 mm
STDDES Standard designation
CCGW09T304E
STDDESAnsi Standard designation ANSI
CCGW32.51E
TCINS Tolerance class insert
G
Working process
No working processes available
WT Weight of item
0.1 kg
