CCGW09T302S12N-0AB-FP853

CCGW09T302S12N-0AB-FP853 CCGW09T302S12N-0AB-FP853 CCGW09T302S12N-0AB-FP853

CCGW09T302S12N-0AB-FP853

Mapal
Артикул: CCGW09T302 S12 N-0AB-FP853
В наличии
В корзину
Описание
Характеристики

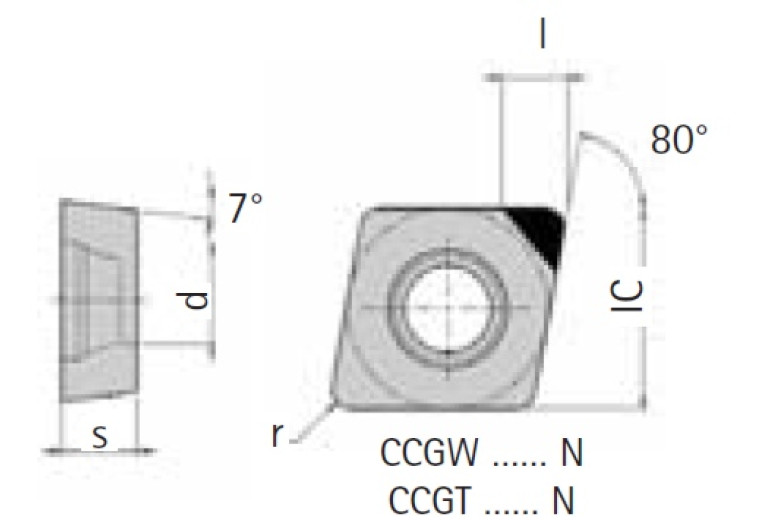

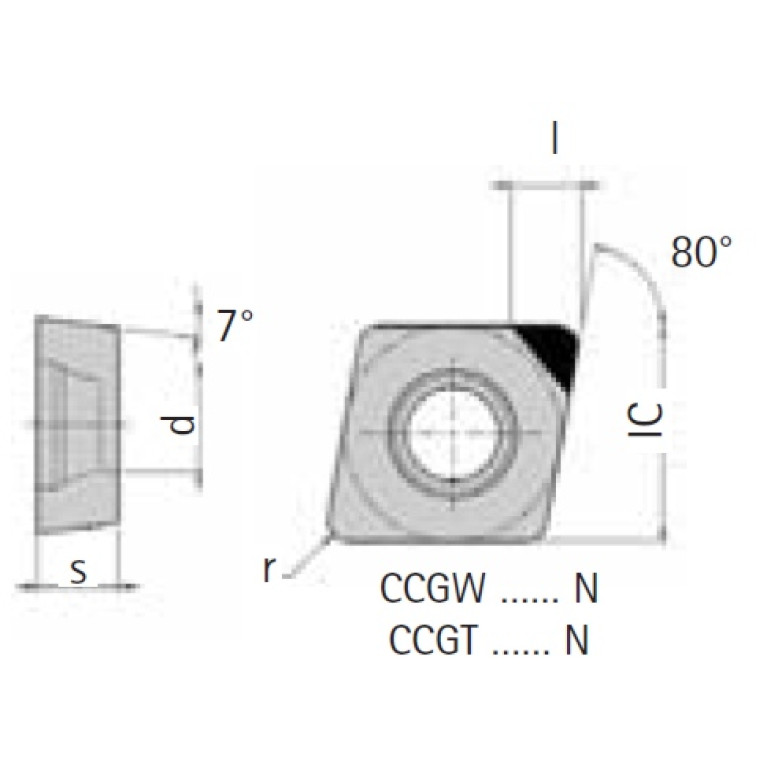

AN Clearance angle major
7 Degree
CB Chip breaker face count
0 - Without chip breaker
CBMD Chip breaker manufacturers designation
S12
CECC Cutting edge condition code
S - Chamfered and rounded
COMPC Company code
MP - Mapal
CSP Coolant supply property
0 - Without coolant supply
D1 Fixing hole diameter
4.4 mm
Delivery state valid from
7/10/2012
DIN
CC09T3 3N
EPSR Insert included angle
80 Degree
FamilyProducts

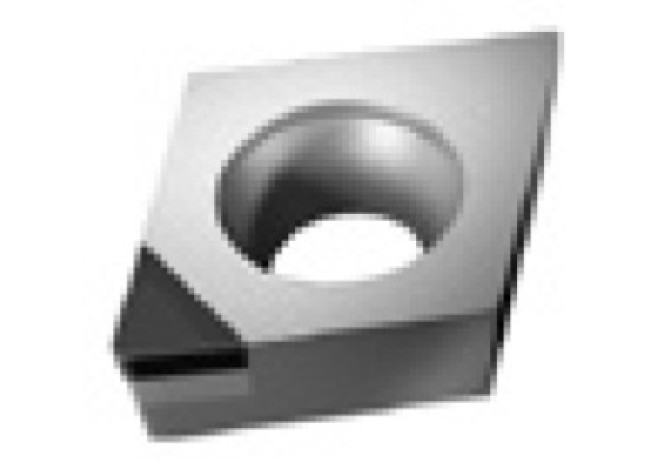

indexable CBN insert CCGW type
GRDMFG Grade manufacturers designation
FP853
IC Inscribed circle diameter
9.52 mm
ID Technical product number
CCGW09T302 S12 N-0AB-FP853
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
N - Neutral
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-03 - Rhombic insert
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
CC09T3 3N
Name Identifying order number
CCGW09T302S12N-0AB-FP853
RE Corner radius
0.2 mm
S Insert thickness
3.97 mm
S1 Insert thickness total
3.97 mm
STDDES Standard designation
CCGW09T302
TCE Tipped cutting edge code
B
TCINS Tolerance class insert
G
Working process
DDA - External turning,DDI - Internal turning
