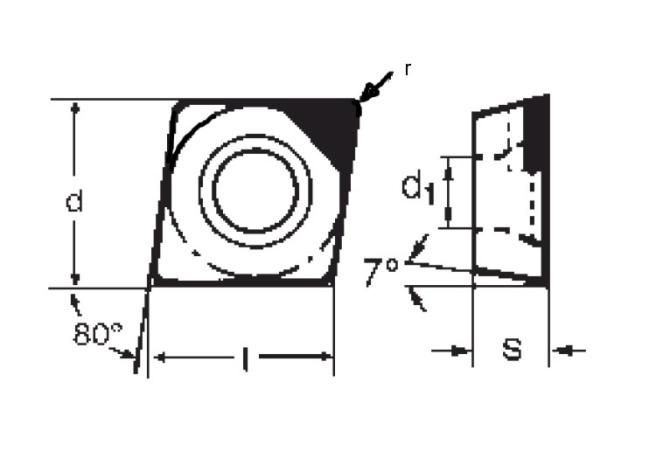

CCGW060204 NS BNX25

Артикул: CCGW060204 NS BNX25

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

CBMD Chip breaker manufacturers designation

COMPC Company code

SU - Sumitomo

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.8 mm

Delivery state valid from

7/1/2021

DIN

CC0602 3N

EPSR Insert included angle

80 Degree

FamilyProducts

Sumiboron CBN insert, CCGW-NS

GRDMFG Grade manufacturers designation

BNX25

GRDPRIO Standard designation of the grade main application

BN-K25

IC Inscribed circle diameter

6.35 mm

ID Technical product number

CCGW060204 NS BNX25

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

6.45 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CC0602 3N

Name Identifying order number

CCGW060204 NS BNX25

RE Corner radius

0.4 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

CCGW060204

STDDESAnsi Standard designation ANSI

CCGW21.51

TCINS Tolerance class insert

Working process

No working processes available
