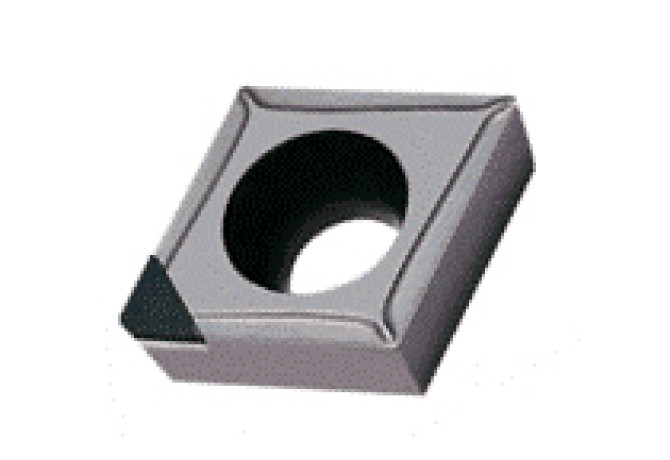

CCGW 03X102T01015-1 IB10H

Артикул: 3322786

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

CECC Cutting edge condition code

T - Chamfered

COMPC Company code

IS - Iscar

D1 Fixing hole diameter

1.9 mm

Delivery state valid from

4/1/2022

DIN

CC03X1023N

EPSR Insert included angle

80 Degree

FamilyProducts

80° Rhombic Inserts with a Single CBN Top Corner Tip and 7° Clearance for Machining Hardened Steel

GRDMFG Grade manufacturers designation

IB10H

IC Inscribed circle diameter

3.57 mm

ID Technical product number

3322786

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$CC03X1023NA$$02

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

3.63 mm

LE Cutting edge effective length

2 mm

LOC-03 ISO

ISO$CC03X1023NA$$02

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CC03X1023N

Name Identifying order number

CCGW 03X102T01015-1 IB10H

RE Corner radius

0.2 mm

S Insert thickness

1.39 mm

TCE Tipped cutting edge code

Working process

No working processes available

WT Weight of item

0.01 kg
