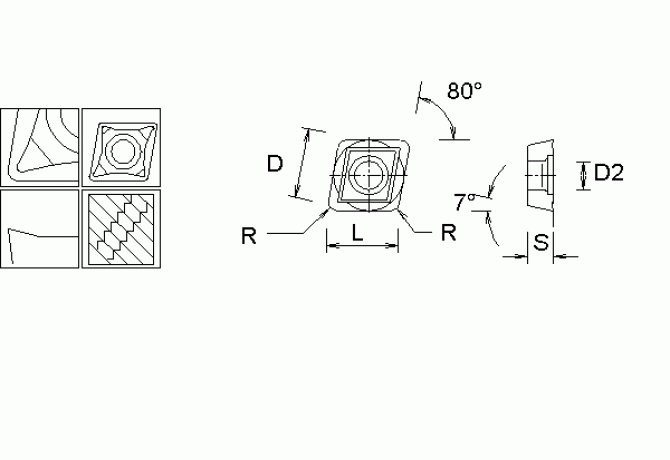

CCGT120404HP K313

Артикул: 1162185

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COMPC Company code

KH - Kennametal

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.5 mm

Delivery state valid from

1/4/2011

DIN

KH-WP SC CCGT1204

EPSR Insert included angle

80 Degree

FamilyProducts

Screw On Insert

GRD2ND Standard designation of the grade 2nd application

HW-S20

GRD3RD Standard designation of the grade 3rd application

HW-S10

GRDMFG Grade manufacturers designation

K313

GRDPRIO Standard designation of the grade main application

HW-K15

IC Inscribed circle diameter

12.7 mm

ID Technical product number

1162185

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

KCH Corner chamfer angle

80 Degree

L Cutting edge length

12.9 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

KH-WP SC CCGT1204

Name Identifying order number

CCGT120404HP K313

RE Corner radius

0.4 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

CCGT120404HP

STDDESAnsi Standard designation ANSI

CCGT431

TCINS Tolerance class insert

Working process

No working processes available
