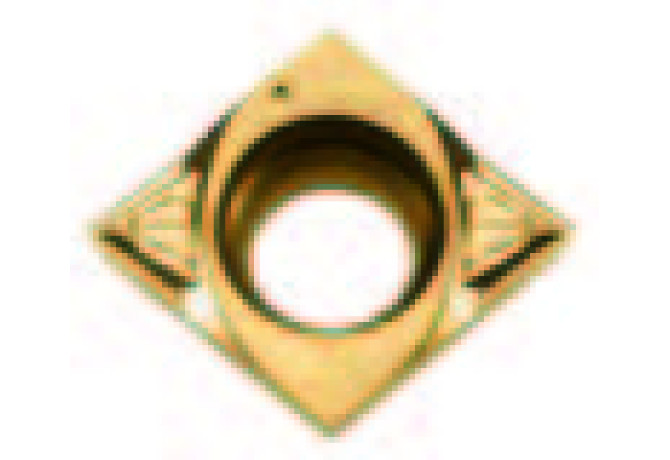

CCGT09T3005MFP-SKS PV730

Артикул: TLP00025

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

COATN Coating / Покрытие

MEGACOAT NANO Cermet

COMPC Company code

KYO - Kyocera

CRCLMFG Chip removal class mfg

P25

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

2/1/2022

DIN

CC09T3003N

EPSR Insert included angle

80 Degree

FamilyProducts

KYOCERA Indexable insert for Turning

GRDMFG Grade manufacturers designation

PV730

GRDPRIO Standard designation of the grade main application

IC Inscribed circle diameter

9.525 mm

ID Technical product number

TLP00025

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

9.672 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CC09T3003N

MIID Master insert identification

CCGT09T3005MFP-SKS PV730

Name Identifying order number

CCGT09T3005MFP-SKS PV730

RE Corner radius

0.05 mm

S Insert thickness

3.97 mm

STDDES Standard designation

CCGT09T3005MFP-SKS

STDDESAnsi Standard designation ANSI

CCGT32.505MFP-SKS

TCINS Tolerance class insert

Working process

No working processes available
