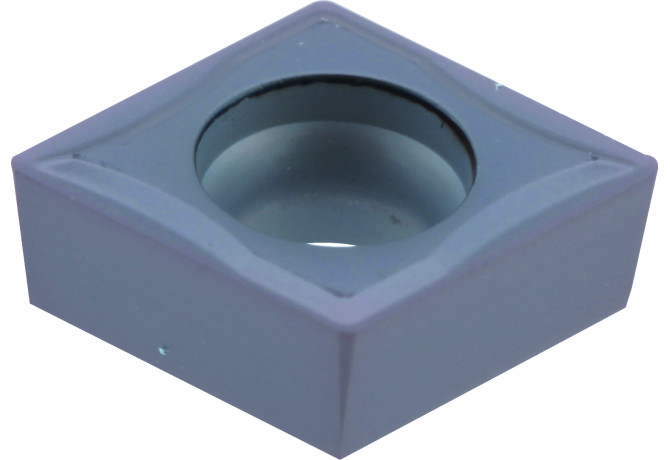

CCGT060202-VP1 PC8110

Артикул: 1-02-043660

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

VP1

COATN Coating / Покрытие

Coated

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.8 mm

Delivery state valid from

6/4/2014

DIN

CC0602 3N

EPSR Insert included angle

80 Degree

FamilyProducts

Turning Insert (Positive)

GRDMFG Grade manufacturers designation

PC8110

GRDPRIO Standard designation of the grade main application

Carbide

IC Inscribed circle diameter

6.35 mm

ID Technical product number

1-02-043660

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

6.4 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CC0602 3N

Name Identifying order number

CCGT060202-VP1 PC8110

RE Corner radius

0.2 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

CCGT060202

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.001 kg
