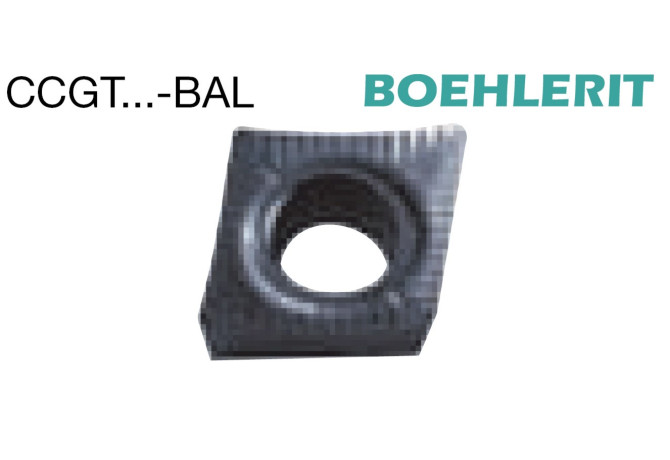

CCGT060202-BAL LW610

Артикул: 6403002

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

BAL

COMPC Company code

BK - Boehlerit

CSP Coolant supply property

0 - Without coolant supply

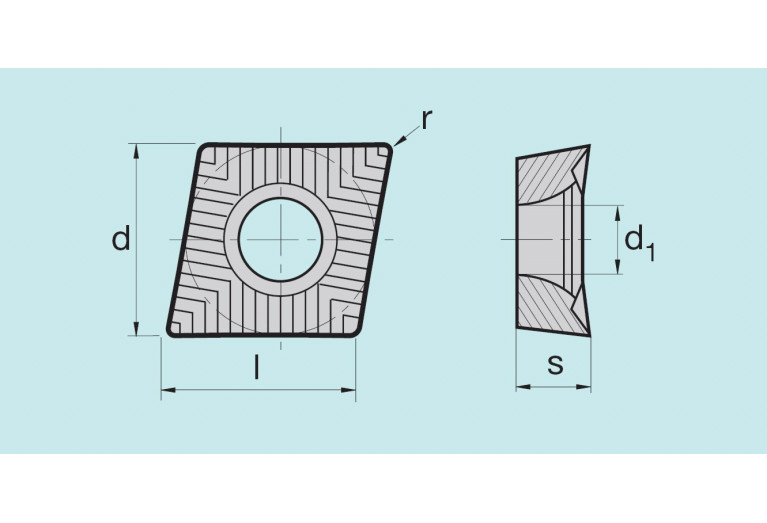

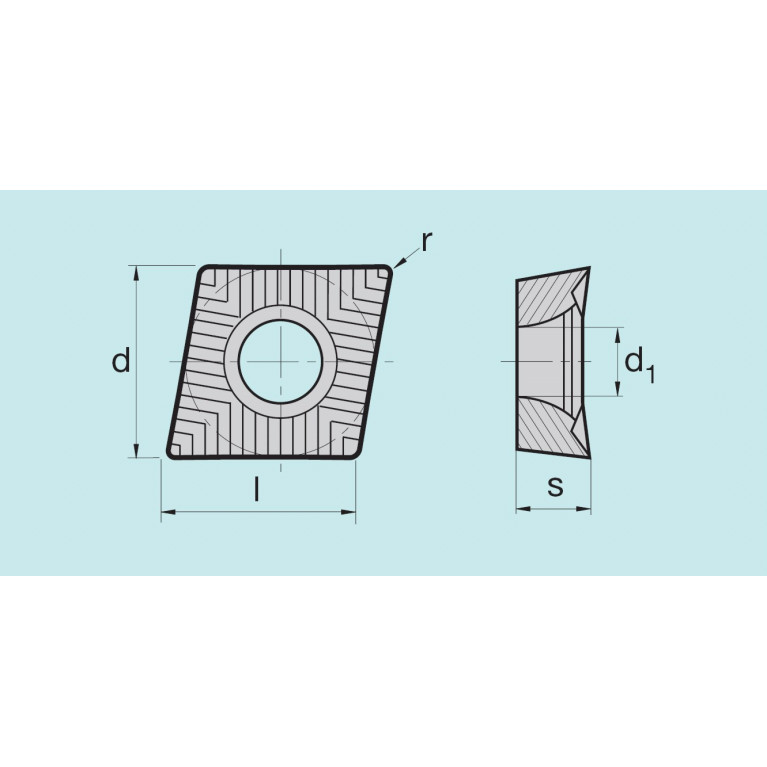

D1 Fixing hole diameter

2.8 mm

Delivery state valid from

2/1/2009

DIN

CC0602 3N

EPSR Insert included angle

80 Degree

FamilyProducts

80° Rhombic insert

GRD2ND Standard designation of the grade 2nd application

HW-K10

GRDMFG Grade manufacturers designation

LW610

GRDPRIO Standard designation of the grade main application

HW-N15

IC Inscribed circle diameter

6.4 mm

ID Technical product number

6403002

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

6.4 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CC0602 3N

Materials

K,N

Name Identifying order number

CCGT060202-BAL LW610

RE Corner radius

0.2 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

CCGT060202

STDDESAnsi Standard designation ANSI

CCGT2(1.5)(.5)

TCINS Tolerance class insert

Working process

BAB - Open by boring,DDA - External turning,DDI - Internal turning
