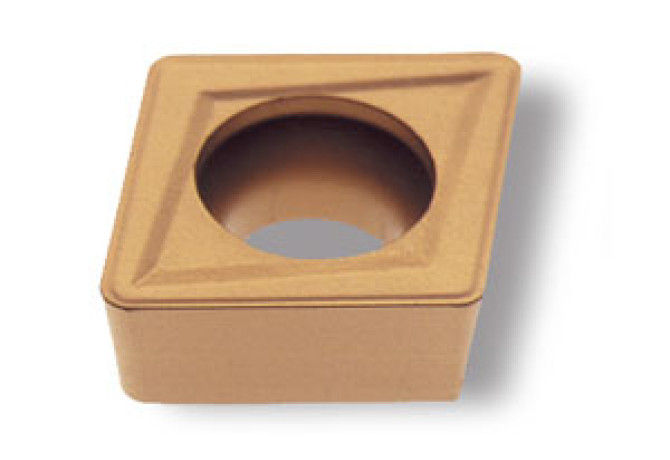

CCGT 060202EN-SM CTC1135

Артикул: 11162881

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

COMPC Company code

CE - Ceratizit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.8 mm

DIN

CC0602023N

EPSR Insert included angle

80 Degree

FamilyProducts

turning insert

GRD2ND Standard designation of the grade 2nd application

HC-M35

GRDMFG Grade manufacturers designation

CTC1135

GRDPRIO Standard designation of the grade main application

HC-P35

IC Inscribed circle diameter

6.35 mm

ID Technical product number

11162881

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

6.4 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CC0602023N

Materials

P,M

Name Identifying order number

CCGT 060202EN-SM CTC1135

RE Corner radius

0.2 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

CCGT060202EN

TCINS Tolerance class insert

Working process

No working processes available
