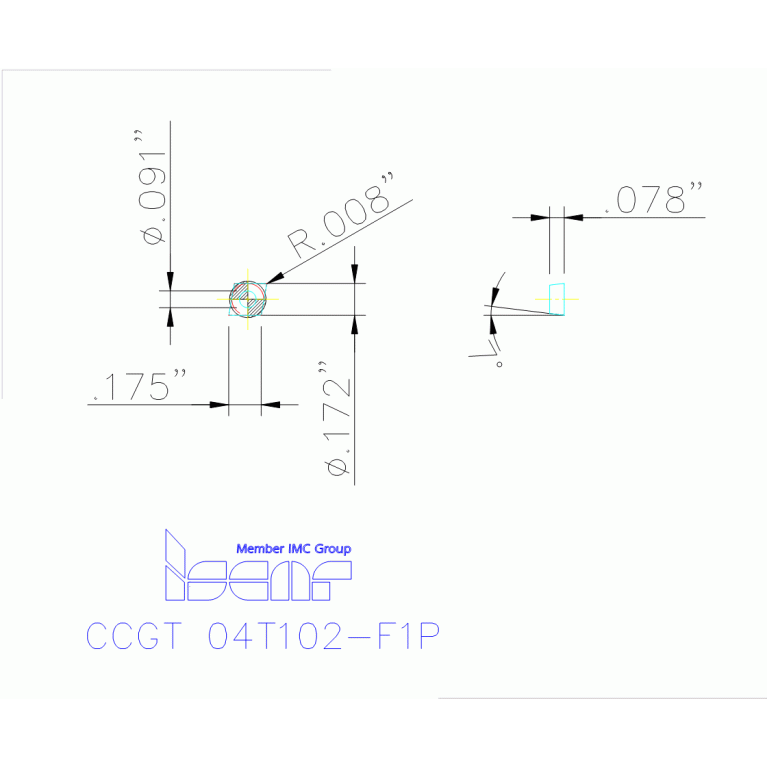

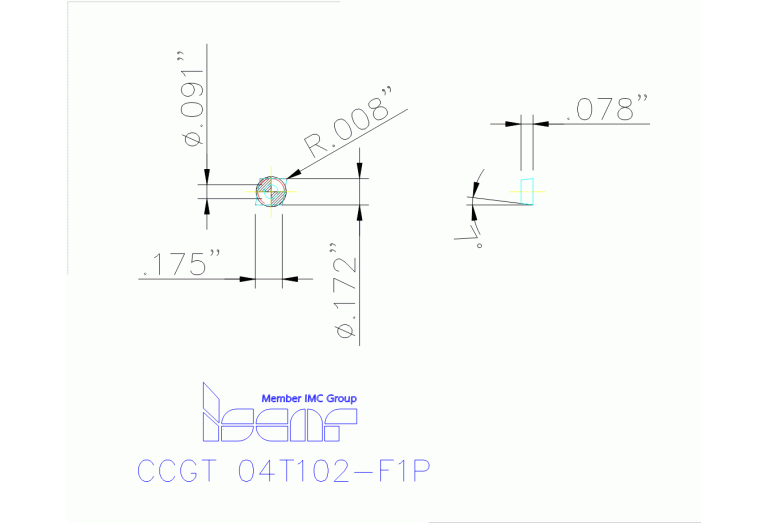

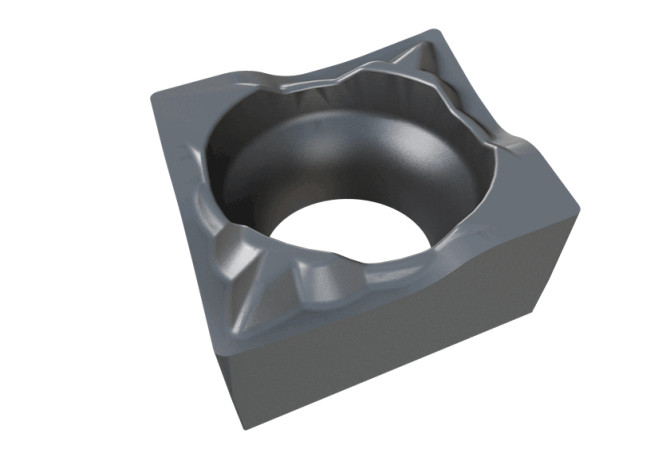

CCGT 04T102-F1P IC908

Артикул: 6837456

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

10 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

F1P

CECC Cutting edge condition code

E - Rounded

COATN Coating / Покрытие

TiAlN

COMPC Company code

IS - Iscar

D1 Fixing hole diameter

2.3 mm

Delivery state valid from

4/1/2022

DIN

CC04T1023N

EPSR Insert included angle

80 Degree

FamilyProducts

80° Rhombic Inserts with a Positive Flank for Very Low Finish Turning Conditions on Steel

GRDMFG Grade manufacturers designation

IC908

IC Inscribed circle diameter

4.37 mm

ID Technical product number

6837456

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$CC04T1023NB$$02

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

4.4 mm

LOC-03 ISO

ISO$CC04T1023NB$$02

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CC04T1023N

Name Identifying order number

CCGT 04T102-F1P IC908

RE Corner radius

0.2 mm

S Insert thickness

1.79 mm

Working process

No working processes available
