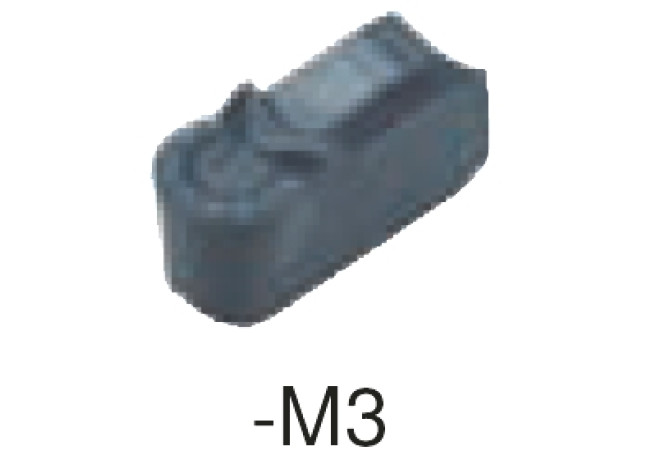

LX R4.00N-M3 CTCP335

Артикул: LX R4.00N-M3 CTCP335

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

6 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

colour

COMPC Company code

CE - Ceratizit

CRE Spot radius

4 mm

CW Cutting width

8 mm

CWLD Cutting width lower deviation

0.08 mm

CWUD Cutting width upper deviation

0.08 mm

FamilyProducts

carbide parting and grooving insert

GRDMFG Grade manufacturers designation

CTCP335

GRDPRIO Standard designation of the grade main application

HC-P30

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

N - Neutral

INSL Insert length

19 mm

Interface codes

ISYC Subclass

202-02 - Insert, one cutting edge for grooving and parting, self clamping

Materials

P,M,K

Name Identifying order number

LX R4.00N-M3 CTCP335

NOF Flute count

NT Tooth count

PDPT Profile depth insert

5 mm

PFS Profile form

Working process

DAA - Parting,DEA - Outer diameter grooving
