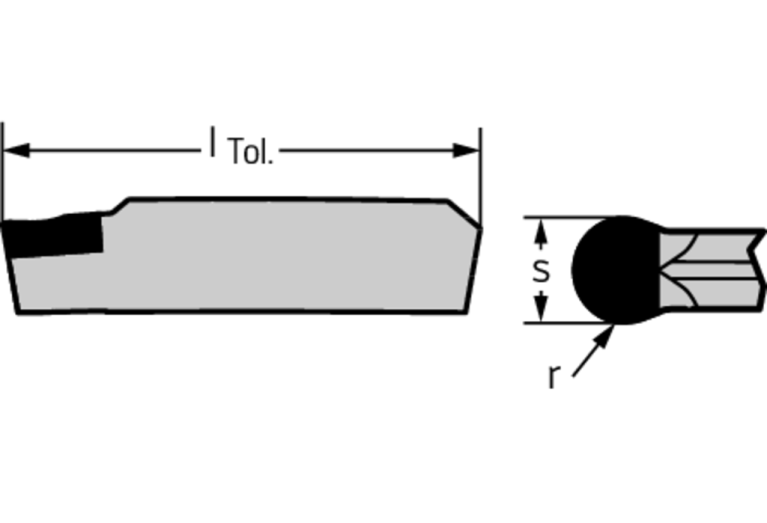

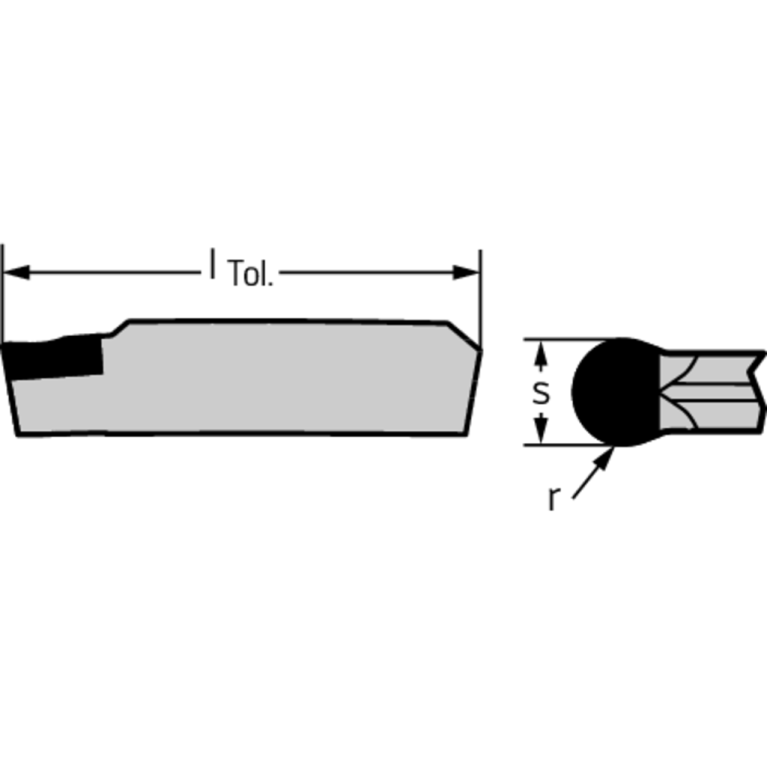

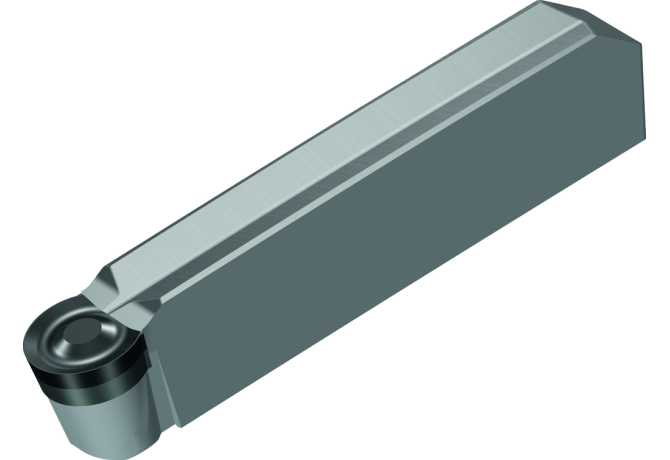

GX24-2F318N16FS-M1 WDN10

Артикул: 7629624

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

10 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

PCD

COMPC Company code

W - Walter

CW Cutting width

3.18 mm

Delivery state valid from

12/1/2023

DIN

W-GX2420007$$FX$$

FamilyProducts

PCD – grooving and copy turning GX

GRDMFG Grade manufacturers designation

WDN10

ID Technical product number

7629624

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

N - Neutral

INSL Insert length

24 mm

Interface codes

J6 / J61

ISO

WR$$GX2420007$$FX$$

ISYC Subclass

202-02 - Insert, one cutting edge for grooving and parting, self clamping

LOC-03 ISO

WR$$GX2420007$$FX$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

W-GX2420007$$FX$$

Name Identifying order number

GX24-2F318N16FS-M1 WDN10

NOF Flute count

PFS Profile form

TCE Tipped cutting edge code

Working process

DDA - External turning,DDI - Internal turning,DEA - Outer diameter grooving,DEI - Grooving,DIE - Grooving,DSS - Face grooving

WT Weight of item

0.01 kg
