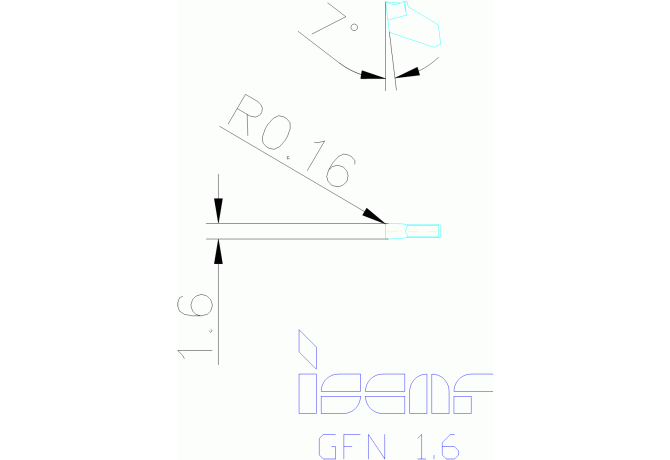

GFN 1.6 IC428

Артикул: 6000242

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

CVD

COMPC Company code

IS - Iscar

CW Cutting width

1.6 mm

CWLD Cutting width lower deviation

-0.03 mm

CWUD Cutting width upper deviation

0.03 mm

Delivery state valid from

2/1/2012

FamilyProducts

GFN 1.6 IC428, Self-Grip

GRD2ND Standard designation of the grade 2nd application

HC-P15

GRD3RD Standard designation of the grade 3rd application

HC-H25

GRDMFG Grade manufacturers designation

IC428

GRDPRIO Standard designation of the grade main application

HC-K20

ID Technical product number

6000242

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

N - Neutral

Interface codes

ISYC Subclass

202-02 - Insert, one cutting edge for grooving and parting, self clamping

Name Identifying order number

GFN 1.6 IC428

NOF Flute count

NT Tooth count

PFS Profile form

REL Corner radius left hand

0.16 mm

RER Corner radius right hand

0.16 mm

Working process

No working processes available
