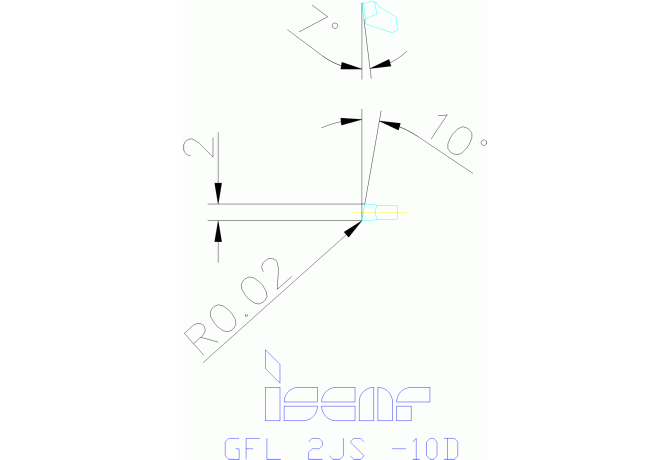

GFL 2JS -10D IC328

Артикул: 6002900

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

IS - Iscar

CW Cutting width

2 mm

CWLD Cutting width lower deviation

-0.1 mm

CWUD Cutting width upper deviation

0.1 mm

Delivery state valid from

2/1/2012

FamilyProducts

GFL 2JS -10D IC328

GRDMFG Grade manufacturers designation

IC328

ID Technical product number

6002900

Interface codes

ISYC Subclass

202-02 - Insert, one cutting edge for grooving and parting, self clamping

Name Identifying order number

GFL 2JS -10D IC328

NOF Flute count

NT Tooth count

PFS Profile form

PSIRL Cutting edge angle major left hand

10 Degree

REL Corner radius left hand

0.02 mm

RER Corner radius right hand

0.02 mm

Working process

No working processes available

Главный задний угол (AN) / Clearance angle major (AN)

10 Degree
