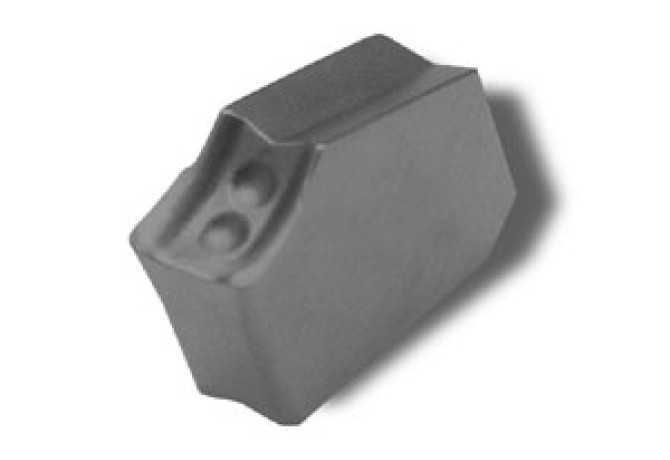

FX 3.1N0.40-R2 SR127

FX 3.1N0.40-R2 SR127

Ceratizit
Артикул: 11041165
В наличии
В корзину
Характеристики
AN Clearance angle major
7 Degree
ANL Clearance angle flank left hand
3 Degree
ANR Clearance angle flank right hand
3 Degree
CB Chip breaker face count
1 - With chip breaker one-side
CBMD Chip breaker manufacturers designation
R2
COMPC Company code
CE - Ceratizit
CW Cutting width
3.1 mm
CWLD Cutting width lower deviation
0.1 mm
CWUD Cutting width upper deviation
0 mm
D1 Fixing hole diameter
0 mm
FamilyProducts
carbide parting and grooving insert
GRD2ND Standard designation of the grade 2nd application
HC-K20
GRD3RD Standard designation of the grade 3rd application
HC-M20
GRDMFG Grade manufacturers designation
SR127
GRDPRIO Standard designation of the grade main application
HC-P25
ID Technical product number
11041165
IFS Insert mounting style code
7 - Prismatic clamping, concave
IH Insert hand
N - Neutral
INSL Insert length
11.5 mm
Interface codes
/
ISYC Subclass
202-02 - Insert, one cutting edge for grooving and parting, self clamping
Materials
P,M,K,S,H
Name Identifying order number
FX 3.1N0.40-R2 SR127
NOF Flute count
1
NT Tooth count
1
PFS Profile form
1
PSIRL Cutting edge angle major left hand
0 Degree
PSIRR Cutting edge angle major right hand
0 Degree
REL Corner radius left hand
0.4 mm
RER Corner radius right hand
0.4 mm
W1 Insert width
2.55 mm
Working process
No working processes available
