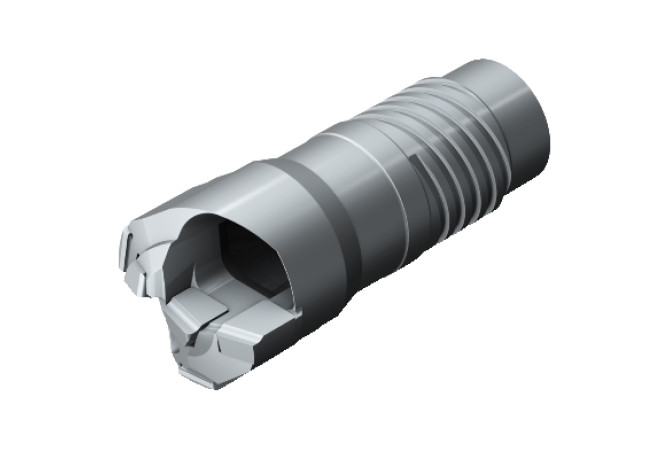

808-9724D1628P 43C

Артикул: 6640248

В наличии

В корзину

Описание

Характеристики

BMC (Body material code)

S - Solid steel

CCONMS (Connection count machine side)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

COATN (Coating)

PVD TIALN

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

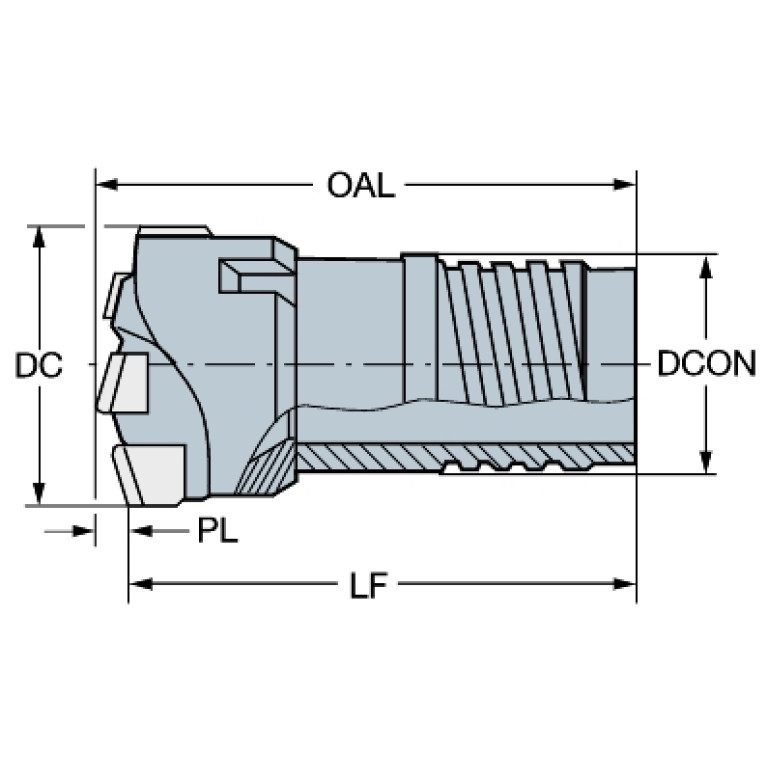

DC (Cutting diameter minimum)

16.28 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

SAC01260295

DRSYC (Drill tool style code)

8 - Ejektorbohrer (Vollbohrer mit innerer Spanabfuhr), zu Bildkennung 12

GRDMFG (Grade manufacturers designation)

43C

GRDPRIO (Standard designation of the grade main application)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

SAC02C0126$$$$

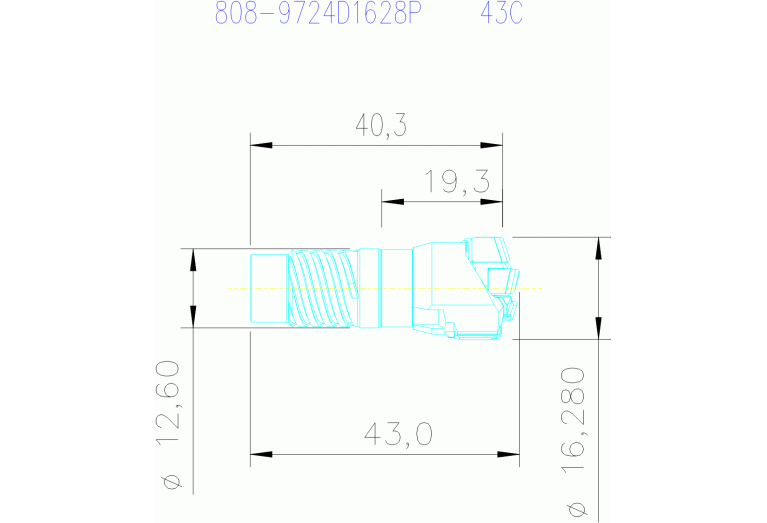

LF (Functional length)

40.3 mm

LOC-03 ISO

SAC02C0126$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

SAC Screw mounting SANDVIK Coromant

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0126

LOC-03 (DCONMS Diameter)

12.6 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAC01260295

LPR (Protruding length)

43 mm

OAL (Overall length)

43 mm

PL (Point length)

2.7 mm

RPMX (Rotational speed maximum)

4000 1/min

Working process

BVB - Drilling

WT (Weight of item)

0.019 kg
