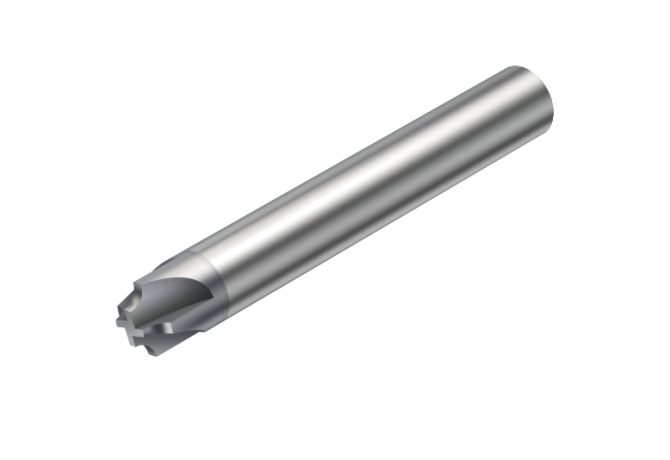

R215.03-04000CAC01G 1620

Артикул: 5742512

В наличии

В корзину

Описание

Характеристики

BMC (Body material code)

H - Solid carbide

CNSC (Coolant entry style code)

0 - Without coolant entry

COATN (Coating)

PVD TiAlN

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

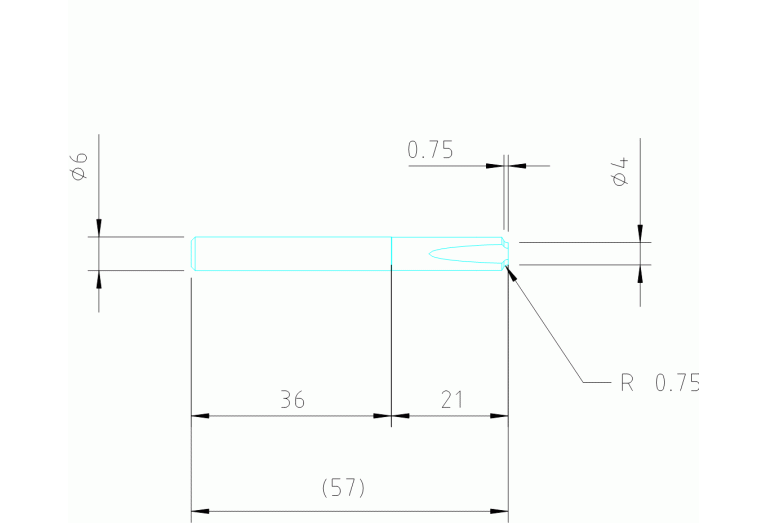

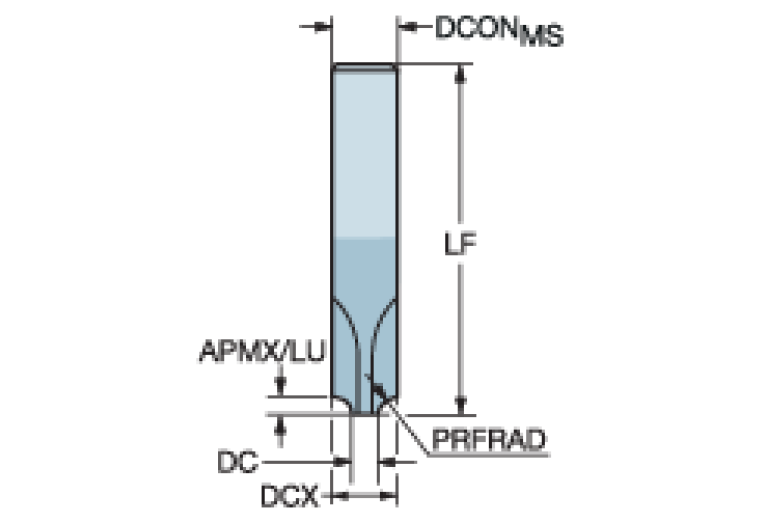

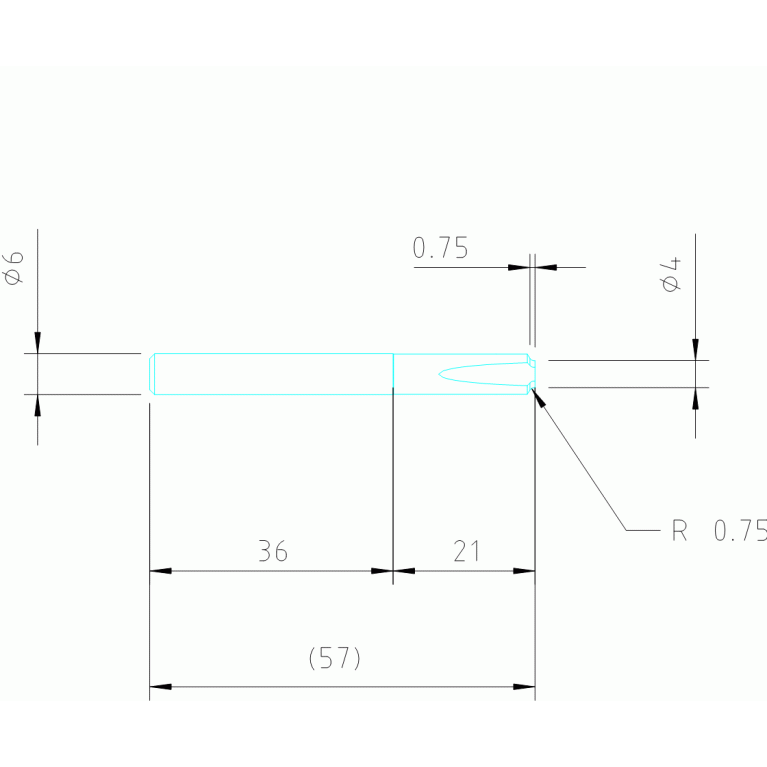

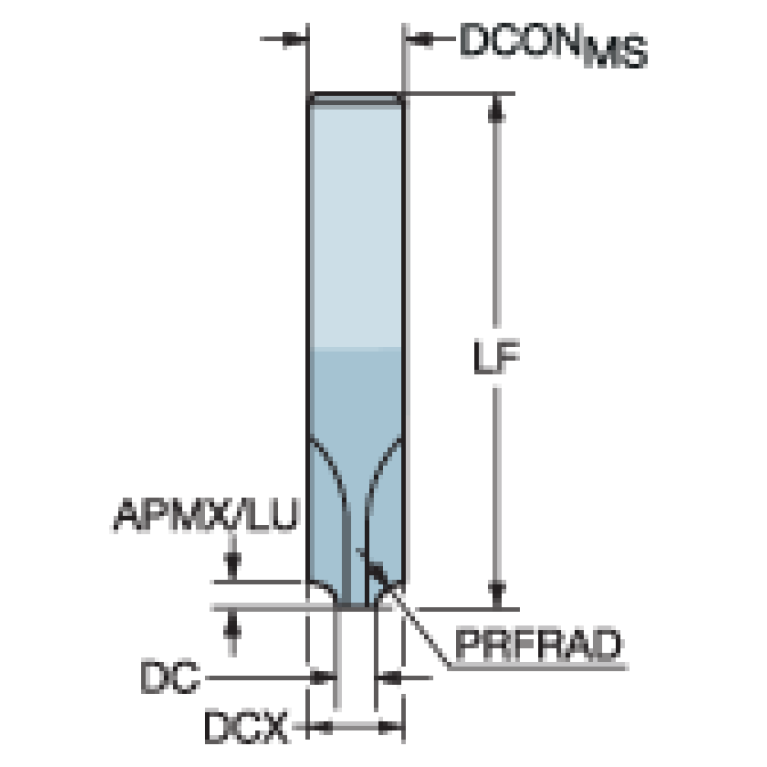

DC (Cutting diameter)

4 mm

DCP (Data chip provision)

0 - Without data chip

DCX (Cutting diameter maximum)

6 mm

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

ZYL00600105

GAMF (Rake angle radial)

1.5 Degree

GAMP (Rake angle axial)

1.5 Degree

GRDMFG (Grade manufacturers designation)

1620

GRDPRIO (Standard designation of the grade main application)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL01F6000h$06

LF (Functional length)

57 mm

LOC-03 ISO

ZYL01F6000h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0060

LOC-03 (DCONMS Diameter)

6 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00600105

LPR (Protruding length)

21 mm

LS (Shank length)

36 mm

MILTTY (Mill tool type ISO)

G - Side end mill (one or more indexable insert pro cutting edge) 90°

OAL (Overall length)

57 mm

PRFRAD (Profile radius 1)

0.75 mm

RPMX (Rotational speed maximum)

80000 1/min

TCDCONMS (ISO-tolerance class shank diameter)

Working process

FFO - Die milling,FPR - Profile milling

WT (Weight of item)

0.034 kg

ZEFP (Peripheral effective cutting edge count)
