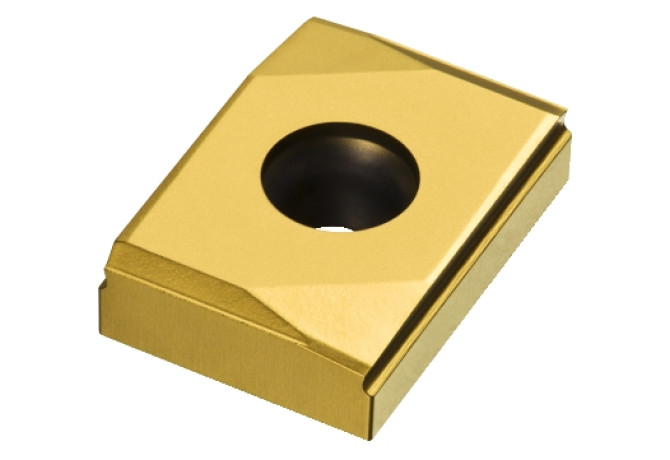

R420.37-11 12 00-01 1025

Артикул: 6214953

В наличии

В корзину

Описание

Характеристики

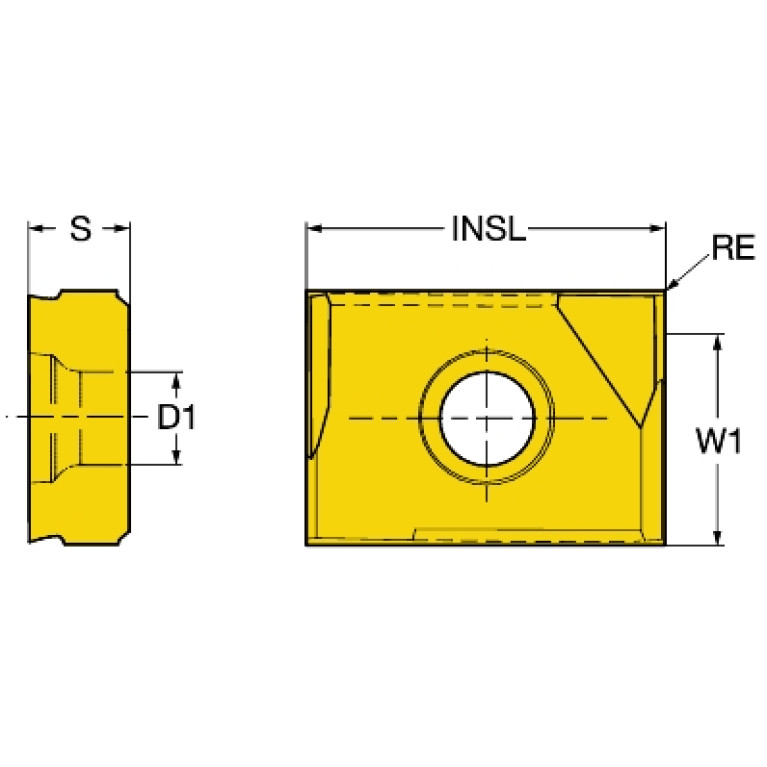

AN (Clearance angle major)

6.48 Degree

BS (Wiper edge length)

4.8 mm

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

PVD TiAlN+TiN

D1 (Fixing hole diameter)

4.3 mm

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

SV-DN111200

EPSR (Insert included angle)

90 Degree

GAN (Insert rake angle)

14 Degree

GRDMFG (Grade manufacturers designation)

1025

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

12 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

R - Right

Interface codes

J6 / J441

ISISO (ISO property)

ISO

SV$$DN1112$$3RB$$$$

L (Cutting edge length)

17 mm

LOC-03 ISO

SV$$DN1112$$3RB$$$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SV-DN111200

NOI (Insert index count)

RE (Corner radius)

0.3 mm

S (Insert thickness)

4.763 mm

S1 (Insert thickness total)

4.763 mm

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

W1 (Insert width)

12 mm

Working process

No working processes available

WT (Weight of item)

0.012 kg
