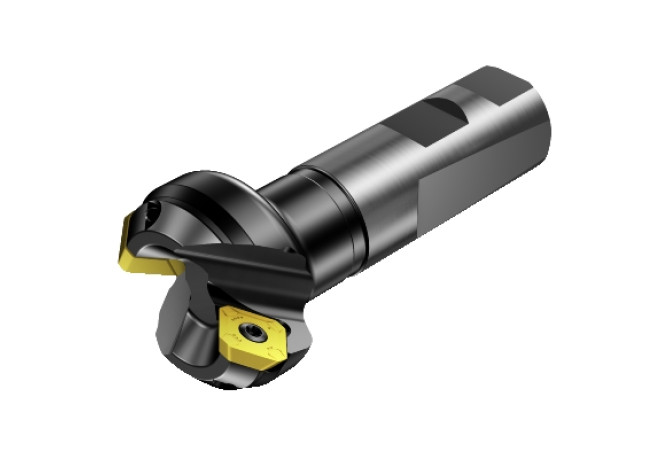

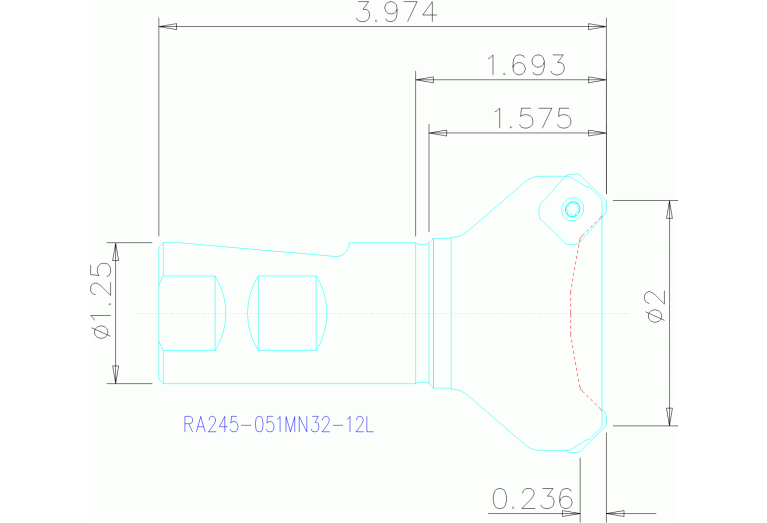

RA245-051MN32-12L

RA245-051MN32-12L RA245-051MN32-12L RA245-051MN32-12L RA245-051MN32-12L

RA245-051MN32-12L

Sandvik Coromant
Артикул: 5738668
В наличии
В корзину
Описание
Характеристики
A1A (Cutting edge angle major Pos. A)
90 Degree
A2A (Clearance angle major Pos. A)
20 Degree
APMX (Depth of cut maximum)
6.096 mm
B3A (Inscribed circle diameter Pos. A)
13.4 mm
BI (Block index)
1
BLDA (Tool style code Position A)
2
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
3.96875 mm
CCONMS (Connection count machine side)
2
CICT (Cutting item count)
3
CNSC (Coolant entry style code)
0 - Without coolant entry
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
DC (Cutting diameter)
50.8 mm
DCP (Data chip provision)
0 - Without data chip
DCX (Cutting diameter maximum)
63.297 mm
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
ZYL12501825
F23 (Number of mounting layers)
1
F24 (Cutting item count per mounting layer)
3
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
ZYL18S1250h$06
KAPR (Tool cutting edge angle)
45 Degree
LOC-03 ISO
ZYL18S1250h$06
LOC-03 (CCFMS Connection code form)
18
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
2 Inch
LOC-03 (CZCMS Connection size code)
1250
LOC-03 (DCONMS Diameter)
31.75 mm
LOC-03 (TCDCONCDMS Connection tolerance class coded)
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL12501825
LPR (Protruding length)
40 mm
MIID (Master insert identification)
R245-12T3..
OAL (Overall length)
101 mm
RMPX (Ramping angle maximum)
0 Degree
RPMX (Rotational speed maximum)
16250 1/min
TCDCONMS (ISO-tolerance class shank diameter)
h6
Working process
FPL - Face milling
WT (Weight of item)
1.226 kg
ZEFF (Face effective cutting edge count)
3
ZEFP (Peripheral effective cutting edge count)
3
