Главная Каталог продукции Sandvik Coromant 305-05 - Slide element S17-R820XLS12-012

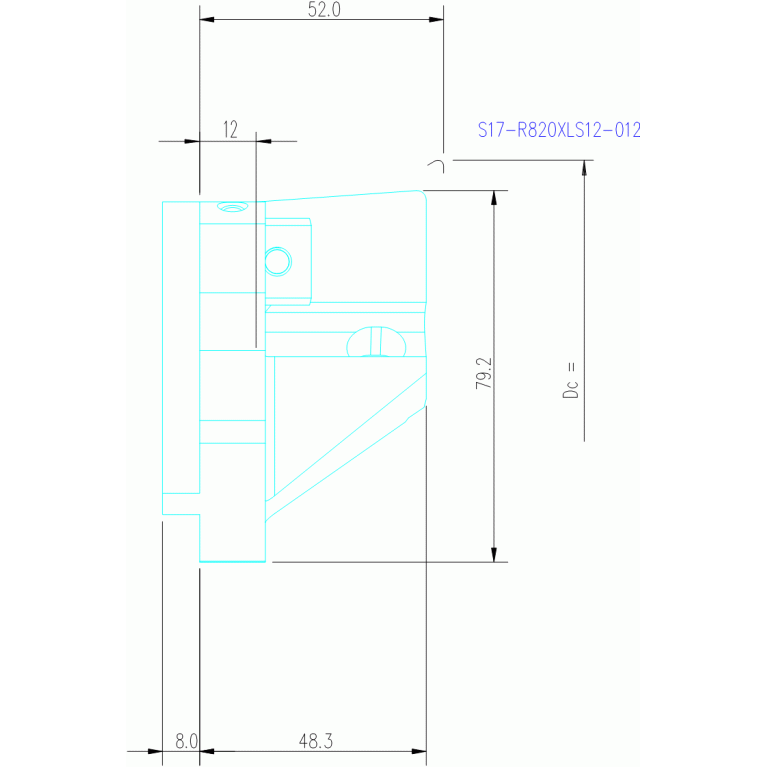

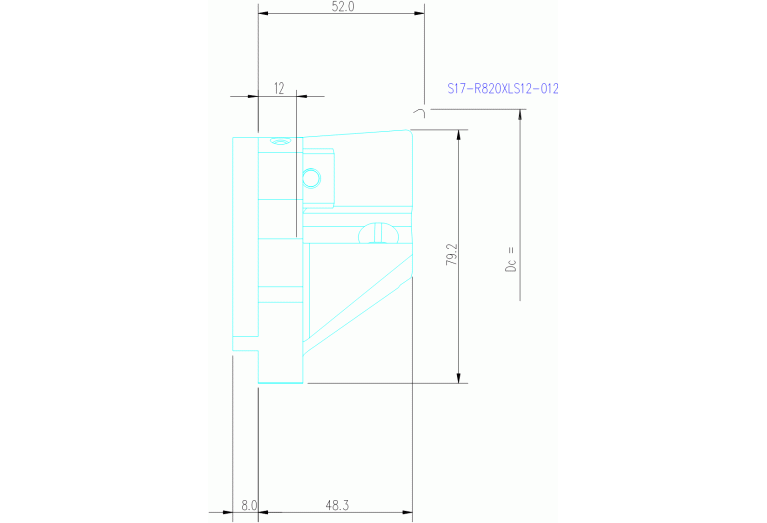

S17-R820XLS12-012

S17-R820XLS12-012 S17-R820XLS12-012 S17-R820XLS12-012 S17-R820XLS12-012

S17-R820XLS12-012

Sandvik Coromant
Артикул: 6352042
В наличии
В корзину
Описание
Характеристики
BMC (Body material code)
S - Solid steel
CCFWS (Connection code form)
02
CCSWS (Connection code style)
5
CCTWS (Connection code type)
CCB
CCUWS (Connection code unit base)
9
CNSC (Coolant entry style code)
4 - With Coolant entry, axial on hole circle
CXSC (Coolant exit style code)
3 - With Coolant exit, axial and radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
3 - With Coolant exit, axial and radial
CZCWS (Connection size code)
0120
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
CBC00300195
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
CBC01C0030$$$$
LF (Functional length)
12 mm
LOC-01 ISO
CCB02C0120****
LOC-01 (CCFWS Connection code form)
02
LOC-01 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-01 (CCTWS Connection code type)
CCB Coromant CoroBore SANDVIK
LOC-01 (CCUWS Connection code unit base)
9 non-dimensional size with coolant
LOC-01 (CZCWS Connection size code)
0120
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
CCB01200295
LOC-03 ISO
CBC01C0030$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
CBC Coromant Bridge Connection SANDVIK
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
0030
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CBC00300195

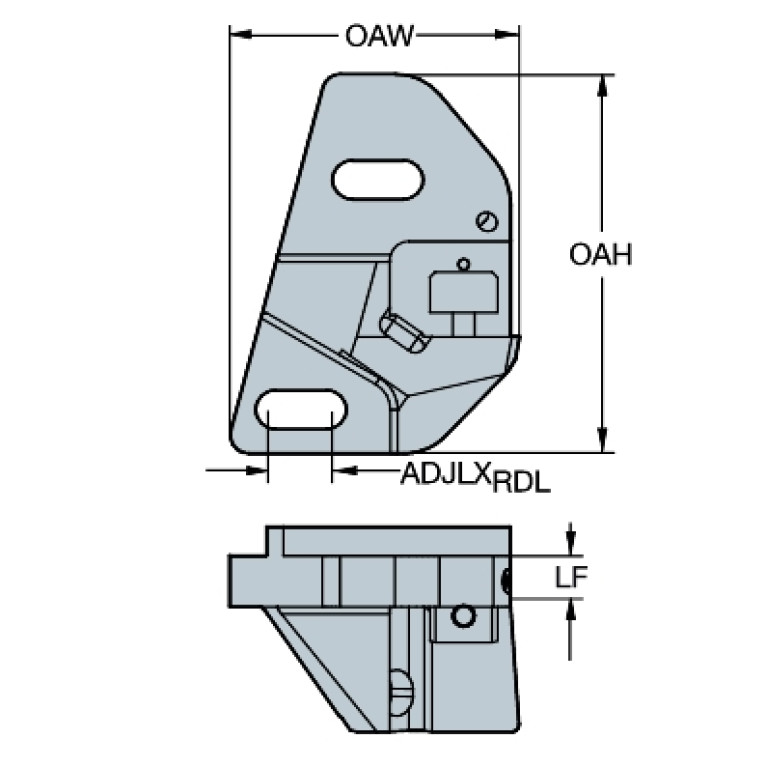

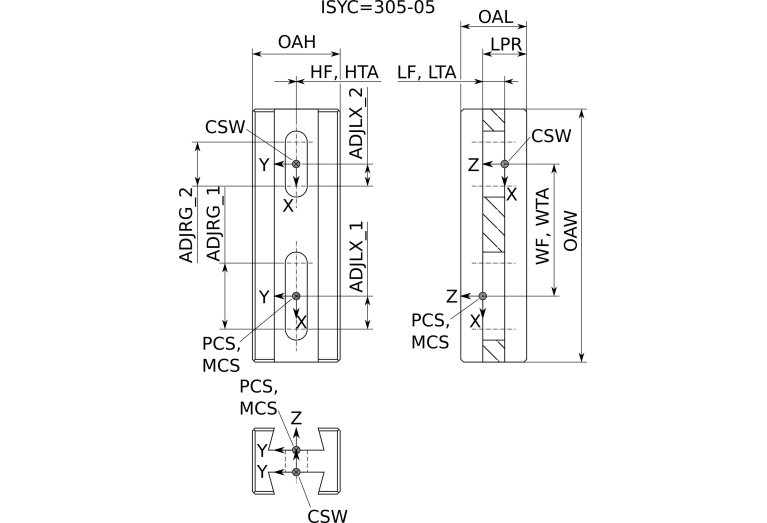

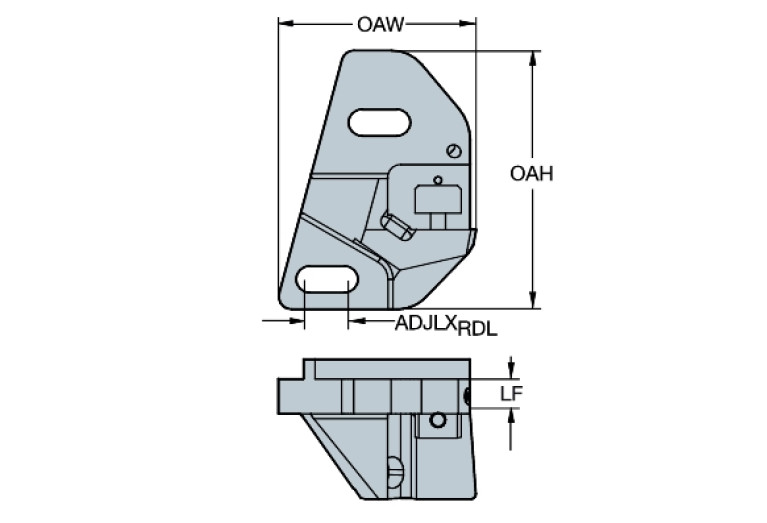

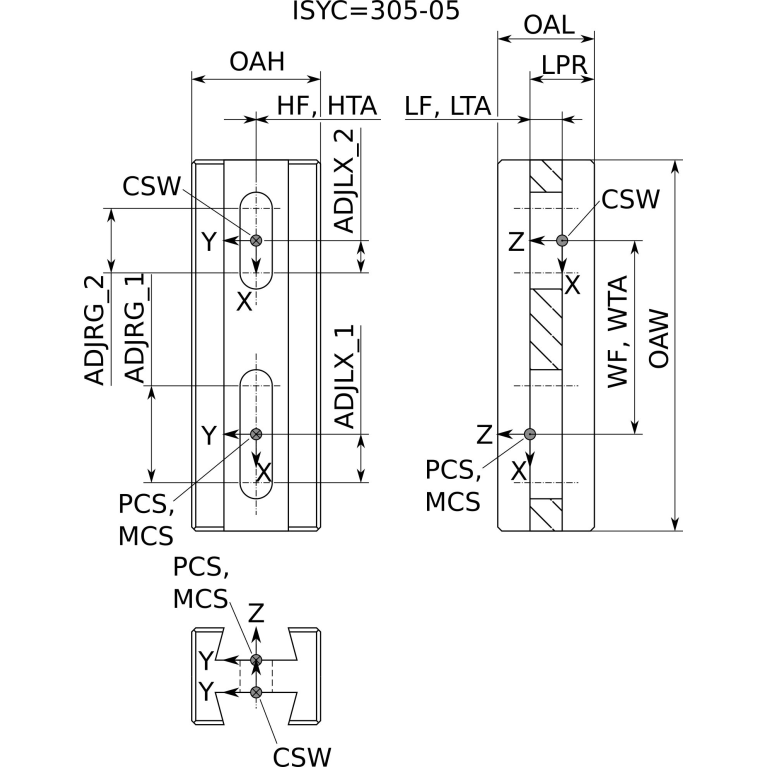

OAH (Overall height)
104 mm
OAL (Overall length)
56.3 mm
OAW (Overall width)
79.24 mm
Working process
BAB - Open by boring
WT (Weight of item)
1.036 kg
