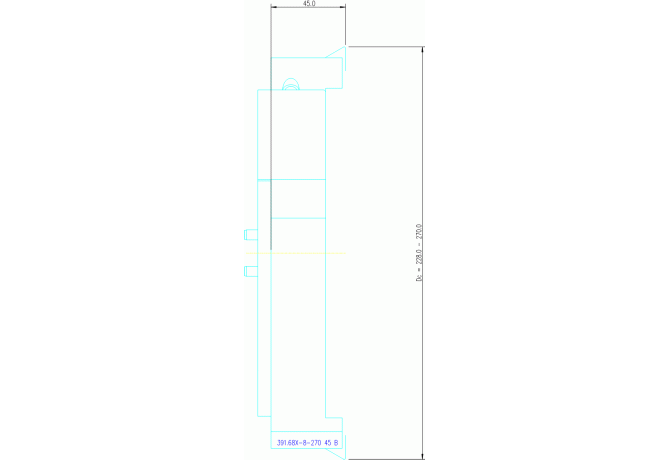

Главная Каталог продукции Sandvik Coromant 305-05 - Slide element 391.68X-8-27045B

391.68X-8-27045B

391.68X-8-27045B 391.68X-8-27045B

391.68X-8-27045B

Sandvik Coromant
Артикул: 5759767
В наличии
В корзину
Описание
Характеристики
BMC (Body material code)
S - Solid steel
CCFWS (Connection code form)
02
CCSWS (Connection code style)
5
CCTWS (Connection code type)
KKC
CCUWS (Connection code unit base)
8
CNSC (Coolant entry style code)
0 - Without coolant entry
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
CZCWS (Connection size code)
0450
Delivery state
LA - Soon discontinued
Delivery state valid from
12/1/2023
DIN
CDB11000285
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
CDB02C1100$$$$
LF (Functional length)
33 mm
LOC-01 ISO
KKC02C0450****
LOC-01 (CCFWS Connection code form)
02
LOC-01 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-01 (CCTWS Connection code type)
KKC
LOC-01 (CCUWS Connection code unit base)
8 non-dimensional size
LOC-01 (CZCWS Connection size code)
0450
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
KKC04500285
LOC-03 ISO
CDB02C1100$$$$
LOC-03 (CCFMS Connection code form)
02
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
CDB Coromant DuoBore SANDVIK
LOC-03 (CCUMS Connection code unit base)
8 non-dimensional size
LOC-03 (CZCMS Connection size code)
1100
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CDB11000285
OAH (Overall height)
45 mm
OAL (Overall length)
59 mm
OAW (Overall width)
162.4 mm
Working process
BAB - Open by boring
WT (Weight of item)
1.62 kg
