Главная Каталог продукции Sandvik Coromant 307-02 - Non-centre cutting single row V-groove end mill R245-063A32-12M

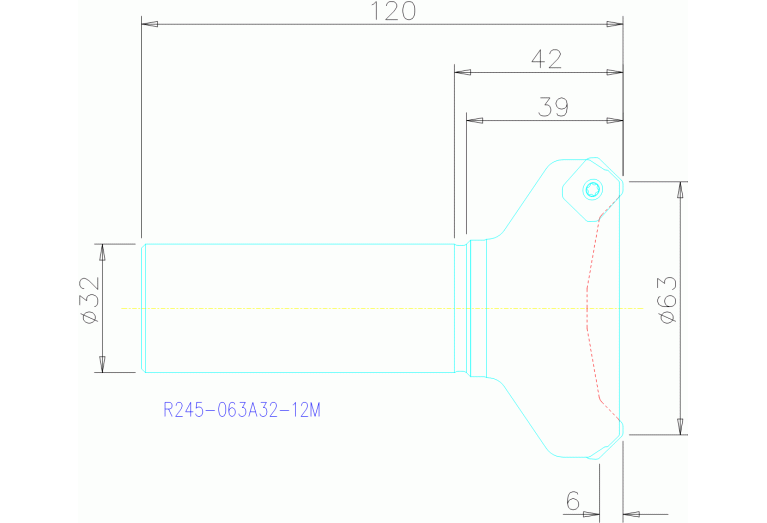

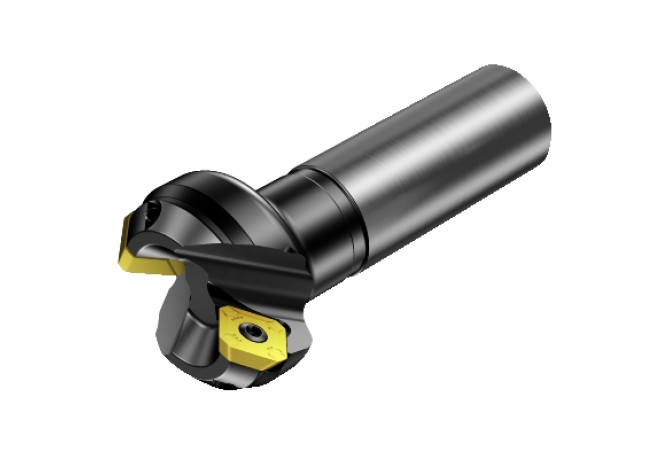

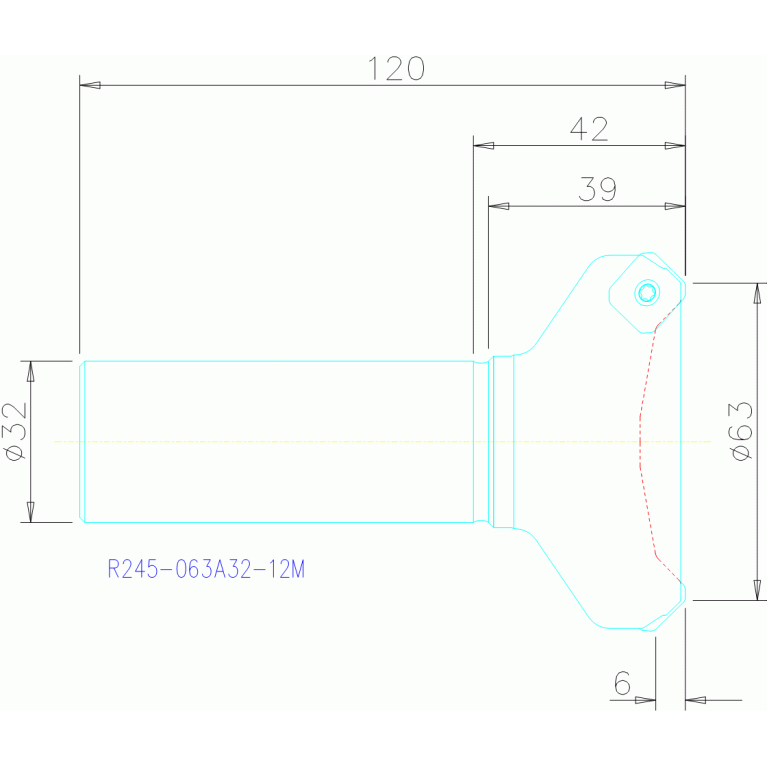

R245-063A32-12M

R245-063A32-12M

R245-063A32-12M

R245-063A32-12M

R245-063A32-12M

R245-063A32-12M

R245-063A32-12M

Sandvik Coromant

Артикул: 5743909

В наличии

В корзину

Описание

Характеристики

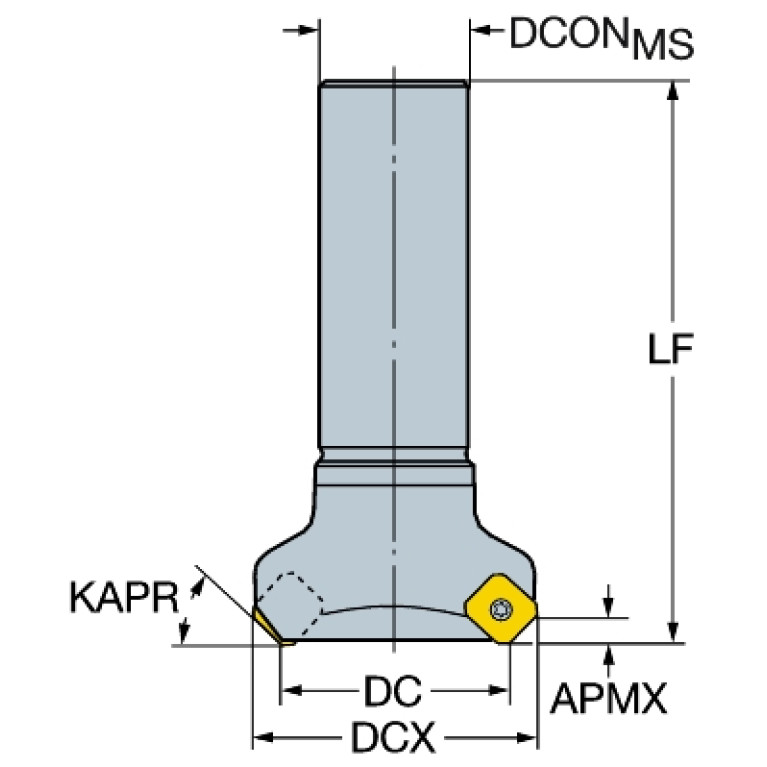

A1A (Cutting edge angle major Pos. A)

90 Degree

A2A (Clearance angle major Pos. A)

20 Degree

APMX (Depth of cut maximum)

6 mm

AZ (Plunge depth maximum)

0 mm

B3A (Inscribed circle diameter Pos. A)

13.4 mm

BI (Block index)

1

BLDA (Tool style code Position A)

2

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

3.969 mm

CCONMS (Connection count machine side)

2

CICT (Cutting item count)

5

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DC (Cutting diameter)

63 mm

DCP (Data chip provision)

0 - Without data chip

DCX (Cutting diameter maximum)

75.5 mm

Delivery state valid from

12/1/2023

DIN

ZYL03200105

F23 (Number of mounting layers)

1

F24 (Cutting item count per mounting layer)

5

GAMF (Rake angle radial)

21.28 Degree

GAMP (Rake angle axial)

-11.905 Degree

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL01G3200$$$$

KAPR (Tool cutting edge angle)

45 Degree

LF (Functional length)

120 mm

LOC-03 ISO

ZYL01G3200$$$$

LOC-03 (CCFMS Connection code form)

01

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0320

LOC-03 (DCONMS Diameter)

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03200105

LPR (Protruding length)

42 mm

LS (Shank length)

78 mm

MIID (Master insert identification)

R245-12T3..

OAL (Overall length)

120 mm

RMPX (Ramping angle maximum)

0 Degree

RPMX (Rotational speed maximum)

14400 1/min

Working process

FPL - Face milling

WT (Weight of item)

1.1 kg

ZEFF (Face effective cutting edge count)

5

ZEFP (Peripheral effective cutting edge count)

5
