Главная Каталог продукции Sandvik Coromant 307-02 - Non-centre cutting single row V-groove end mill R215.64-12A20-6012

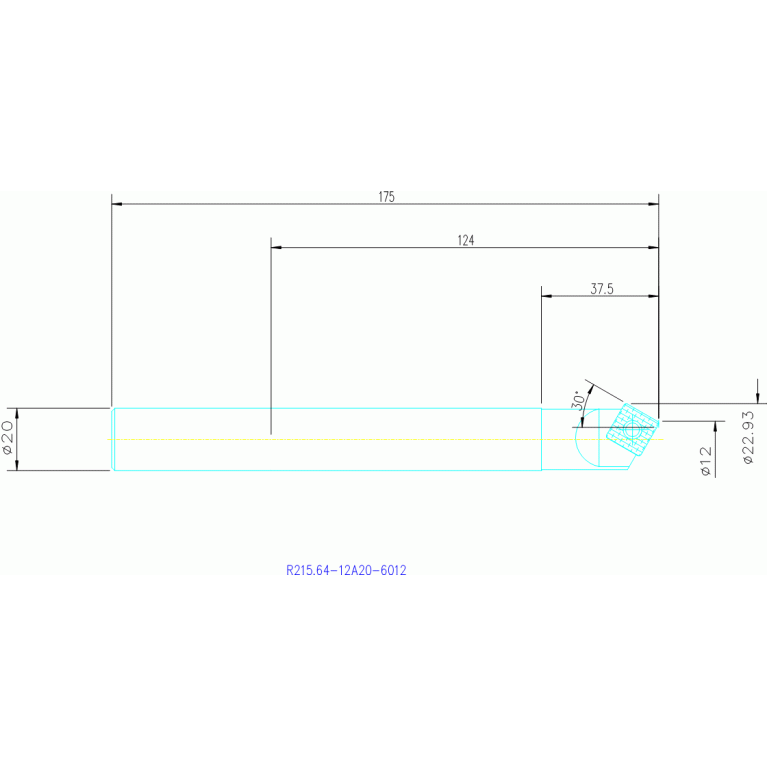

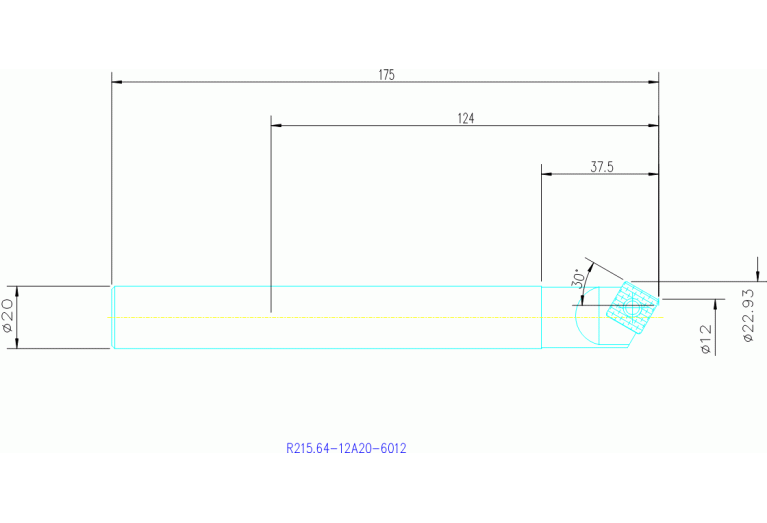

R215.64-12A20-6012

R215.64-12A20-6012

R215.64-12A20-6012

R215.64-12A20-6012

R215.64-12A20-6012

R215.64-12A20-6012

Sandvik Coromant

Артикул: 5742822

В наличии

В корзину

Описание

Характеристики

A1A (Cutting edge angle major Pos. A)

90 Degree

APMX (Depth of cut maximum)

9.62 mm

B3A (Inscribed circle diameter Pos. A)

12.7 mm

BD (Body diameter)

19.4 mm

BI (Block index)

1

BLDA (Tool style code Position A)

2

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

4.762 mm

CCONMS (Connection count machine side)

2

CICT (Cutting item count)

1

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DC (Cutting diameter)

12 mm

DCP (Data chip provision)

0 - Without data chip

DCX (Cutting diameter maximum)

22.93 mm

Delivery state valid from

12/1/2023

DIN

ZYL02000105

F23 (Number of mounting layers)

1

F24 (Cutting item count per mounting layer)

1

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL01G2000h$07

KAPR (Tool cutting edge angle)

60 Degree

LF (Functional length)

175 mm

LOC-03 ISO

ZYL01G2000h$07

LOC-03 (CCFMS Connection code form)

01

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0200

LOC-03 (DCONMS Diameter)

20 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$07

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02000105

LPR (Protruding length)

37.5 mm

LS (Shank length)

137.5 mm

MIID (Master insert identification)

SPMT120408-WL

OAL (Overall length)

175 mm

RPMX (Rotational speed maximum)

25200 1/min

TCDCONMS (ISO-tolerance class shank diameter)

h7

Working process

FFO - Die milling,FPR - Profile milling

WT (Weight of item)

0.44 kg

ZEFF (Face effective cutting edge count)

1

ZEFP (Peripheral effective cutting edge count)

1
