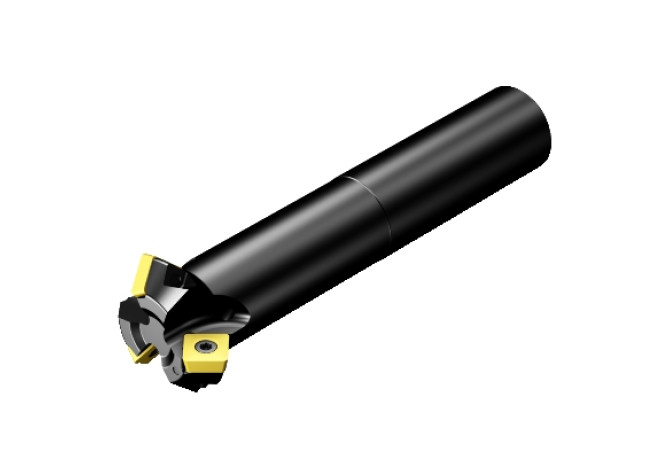

Главная Каталог продукции Sandvik Coromant 307-02 - Non-centre cutting single row V-groove end mill 495-012A16-7509L

495-012A16-7509L

495-012A16-7509L 495-012A16-7509L 495-012A16-7509L 495-012A16-7509L

495-012A16-7509L

Sandvik Coromant
Артикул: 6536278
В наличии
В корзину
Описание
Характеристики

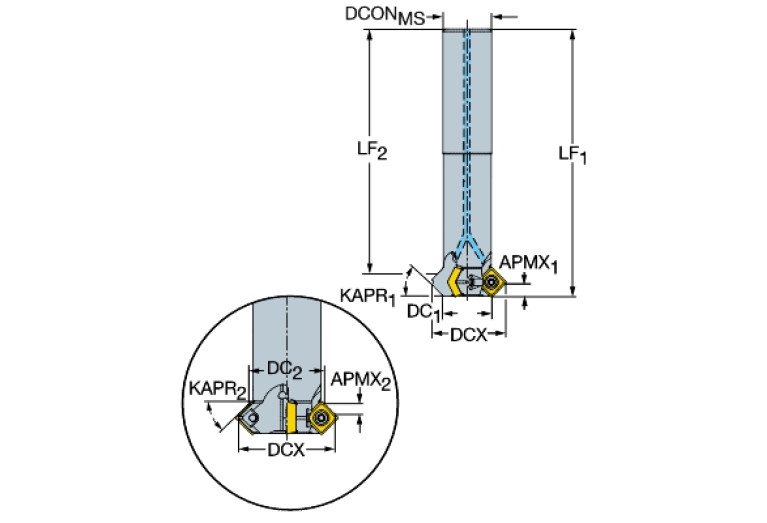

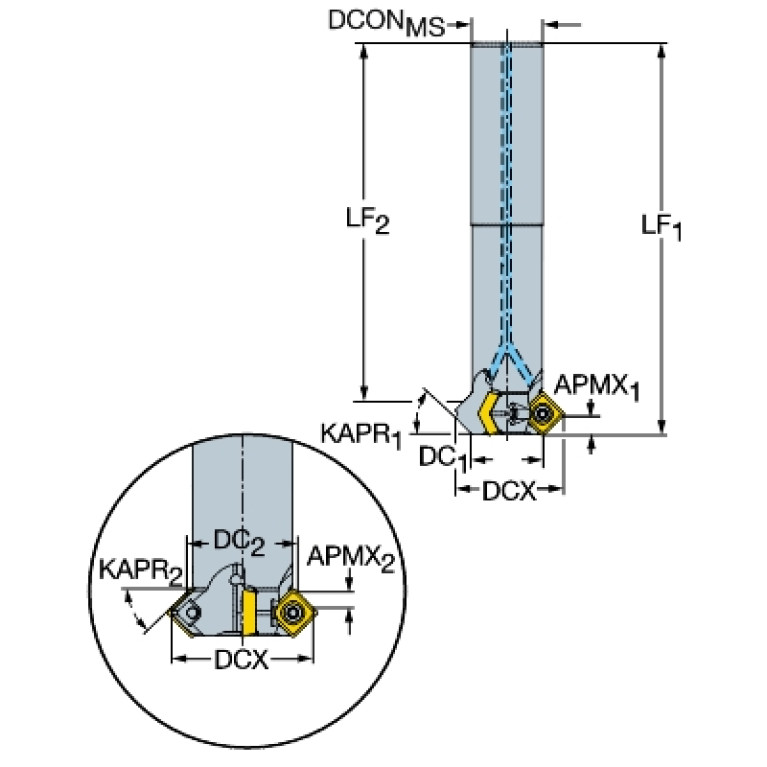

A1A (Cutting edge angle major Pos. A)
90 Degree
APMX (Depth of cut maximum)
7.723 mm
B3A (Inscribed circle diameter Pos. A)
9 mm
BD (Body diameter)
12.979 mm
BI (Block index)
1
BLDA (Tool style code Position A)
2
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
3.51 mm
CCONMS (Connection count machine side)
2
CICT (Cutting item count)
1
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
3 - With Coolant exit, axial and radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
3 - With Coolant exit, axial and radial
DC (Cutting diameter)
12 mm
DCP (Data chip provision)
0 - Without data chip
DCX (Cutting diameter maximum)
16.149 mm
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
ZYL01600115
F23 (Number of mounting layers)
1
F24 (Cutting item count per mounting layer)
1
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
ZYL01G1600h$06
KAPR (Tool cutting edge angle)
75 Degree

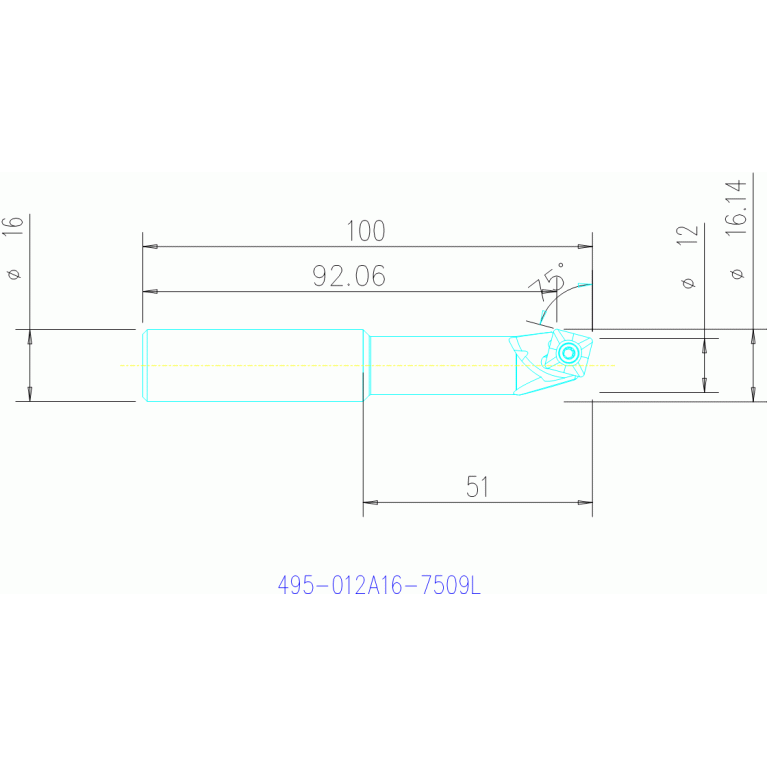

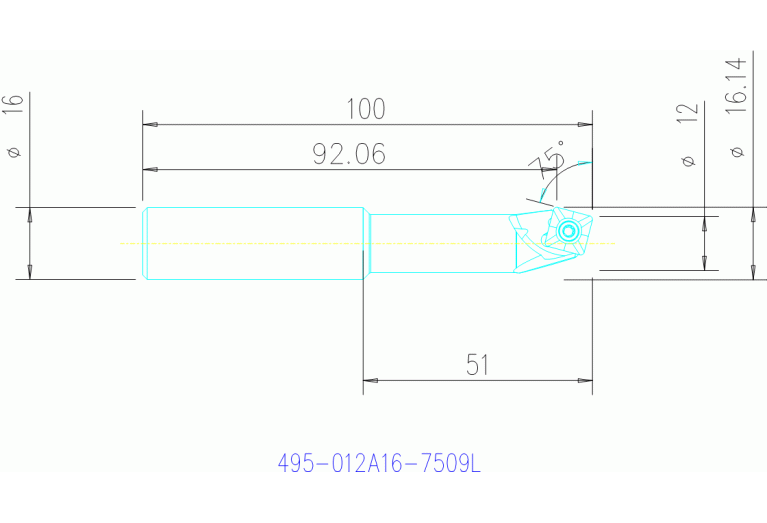

LF (Functional length)
100 mm
LOC-03 ISO
ZYL01G1600h$06
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
1 Metric with coolant
LOC-03 (CZCMS Connection size code)
0160
LOC-03 (DCONMS Diameter)
16 mm
LOC-03 (TCDCONCDMS Connection tolerance class coded)
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01600115
LPR (Protruding length)
51 mm
LS (Shank length)
49 mm
MIID (Master insert identification)
495-09T3M-XL
OAL (Overall length)
100 mm
RPMX (Rotational speed maximum)
14400 1/min
TCDCONMS (ISO-tolerance class shank diameter)
h6
Working process
FFO - Die milling,FPR - Profile milling
WT (Weight of item)
0.103 kg
ZEFF (Face effective cutting edge count)
1
ZEFP (Peripheral effective cutting edge count)
1
