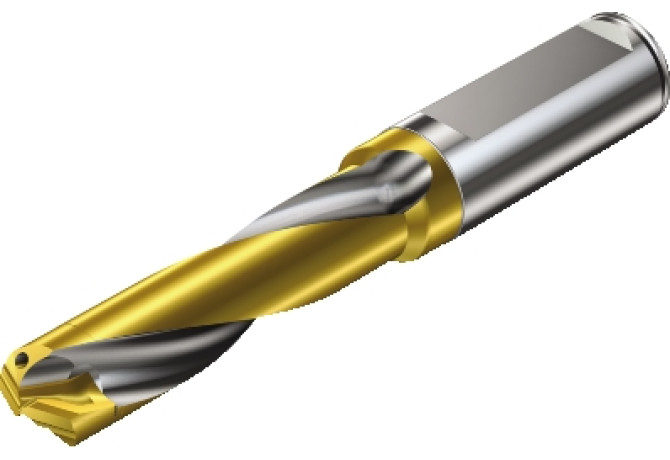

Главная Каталог продукции Sandvik Coromant 302-01 - Twist Drill RA411.5-5634D0.8750 P20

RA411.5-5634D0.8750 P20

Артикул: 5739160

В наличии

В корзину

Описание

Характеристики

BMC (Body material code)

S - Solid steel

CCONMS (Connection count machine side)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

COATN (Coating)

PVD TIN

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

DC (Cutting diameter minimum)

22.225 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

ZYL10001135

FHA (Flute helix angle)

20 Degree

FHH (Flute helix hand)

R - Hand of helix right

GRDMFG (Grade manufacturers designation)

P20

GRDPRIO (Standard designation of the grade main application)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL11S1000h$06

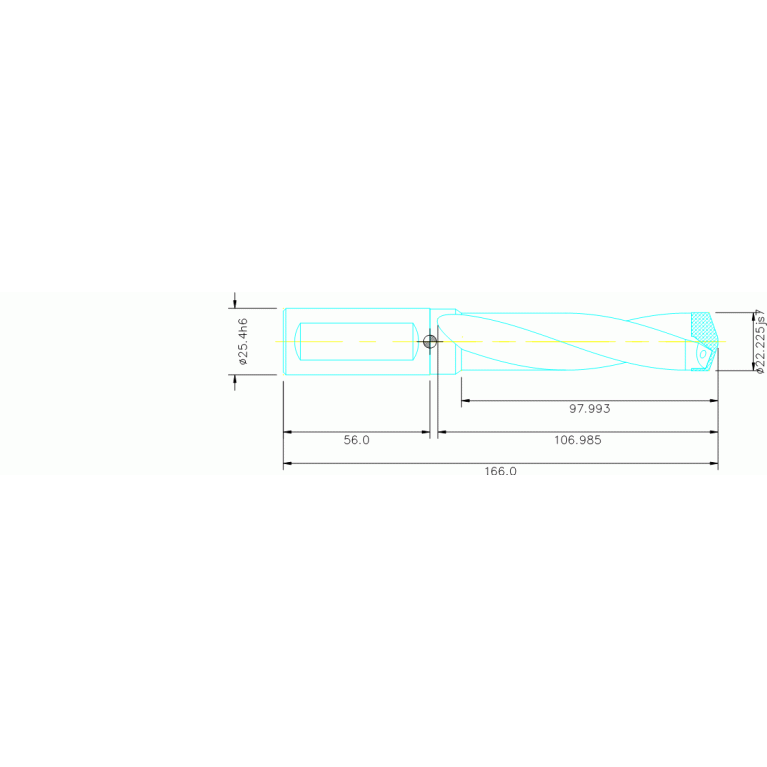

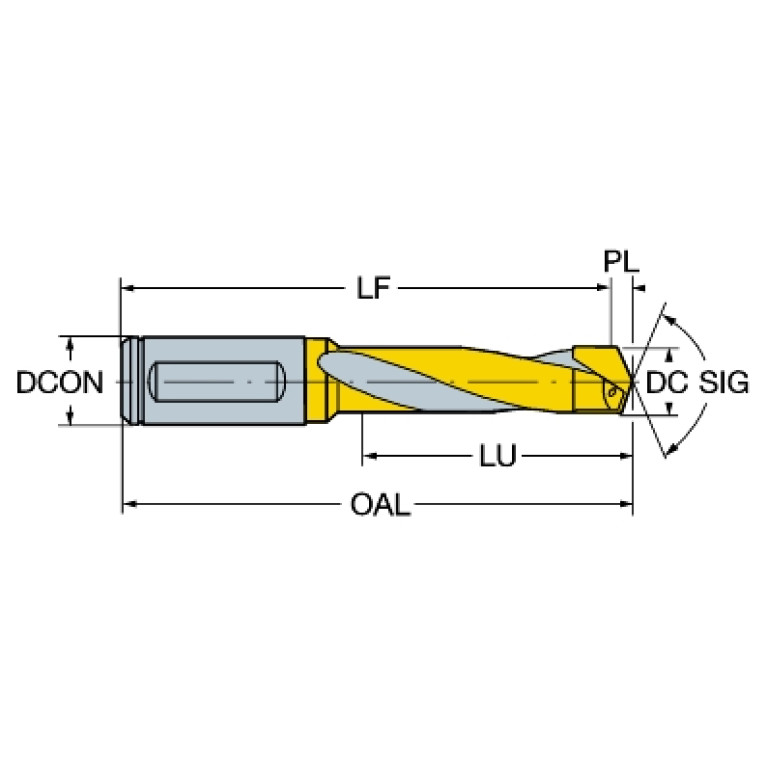

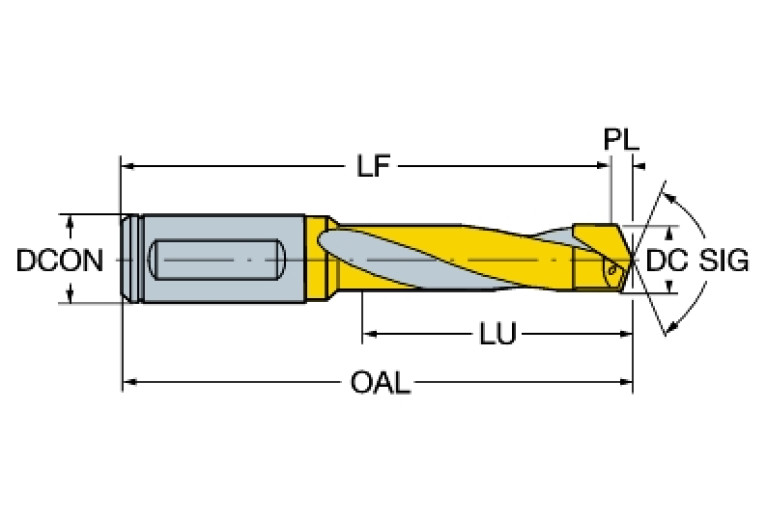

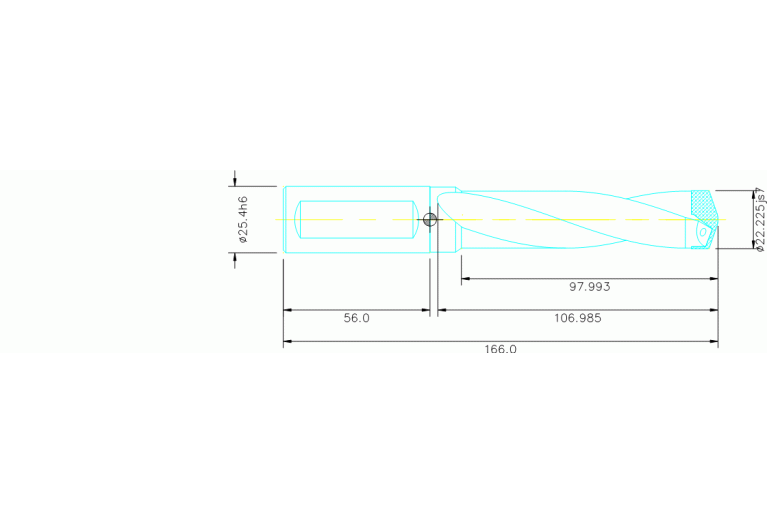

LF (Functional length)

163.777 mm

LOC-03 ISO

ZYL11S1000h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

3 Inch with coolant

LOC-03 (CZCMS Connection size code)

1000

LOC-03 (DCONMS Diameter)

25.4 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL10001135

LPR (Protruding length)

111.822 mm

LS (Shank length)

56 mm

LU (Usable length)

83.1 mm

NOF (Flute count)

OAL (Overall length)

167.894 mm

PL (Point length)

4.045 mm

RPMX (Rotational speed maximum)

21500 1/min

SIG (Point angle 1st step)

140 Degree

TCDCONMS (ISO-tolerance class shank diameter)

Working process

BVB - Drilling

WT (Weight of item)

0.4 kg
