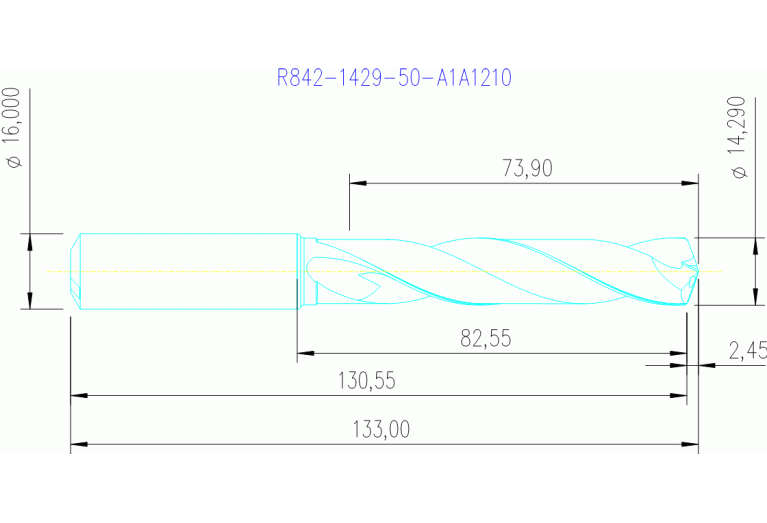

R842-1429-50-A1A 1210

Артикул: 5749187

В наличии

В корзину

Описание

Характеристики

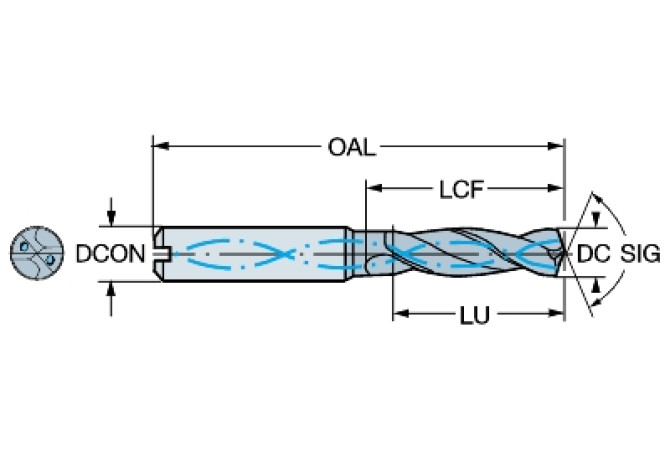

BMC (Body material code)

H - Solid carbide

CCONMS (Connection count machine side)

CNSC (Coolant entry style code)

4 - With Coolant entry, axial on hole circle

COATN (Coating)

PVD ALCRN

CXSC (Coolant exit style code)

4 - With Coolant exit, axial on hole circle

CXSC (Coolant exit style code) / Тип подвода СОЖ

4 - With Coolant exit, axial on hole circle

DC (Cutting diameter minimum)

14.29 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

ZYL01600115

FHA (Flute helix angle)

28.347 Degree

FHH (Flute helix hand)

R - Hand of helix right

GRDMFG (Grade manufacturers designation)

1210

GRDPRIO (Standard designation of the grade main application)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL01G1600h$06

LCF (Length chip flute)

83 mm

LF (Functional length)

130.5 mm

LOC-03 ISO

ZYL01G1600h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

1 Metric with coolant

LOC-03 (CZCMS Connection size code)

0160

LOC-03 (DCONMS Diameter)

16 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01600115

LPR (Protruding length)

85.042 mm

LS (Shank length)

48 mm

LU (Usable length)

68.7 mm

NOF (Flute count)

OAL (Overall length)

133 mm

PL (Point length)

2.5 mm

RPMX (Rotational speed maximum)

4456 1/min

SIG (Point angle 1st step)

140 Degree

TCDCONMS (ISO-tolerance class shank diameter)

Working process

BVB - Drilling

WT (Weight of item)

0.247 kg
