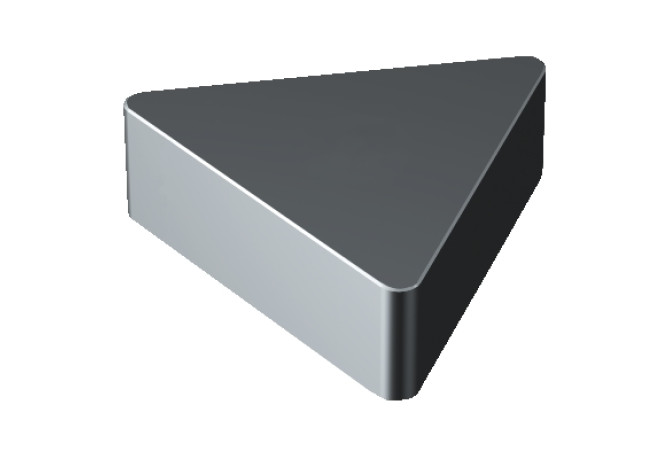

TNGN160408S02520M 7925

TNGN160408S02520M 7925

Sandvik Coromant
Артикул: 5782771
В наличии
В корзину
Характеристики
AN (Clearance angle major)
0 Degree
BN (Face land width)
0.25 mm
CB (Chip breaker face count)
0 - Without chip breaker
CECC (Cutting edge condition code)
S - Chamfered and rounded
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
TN1604081N

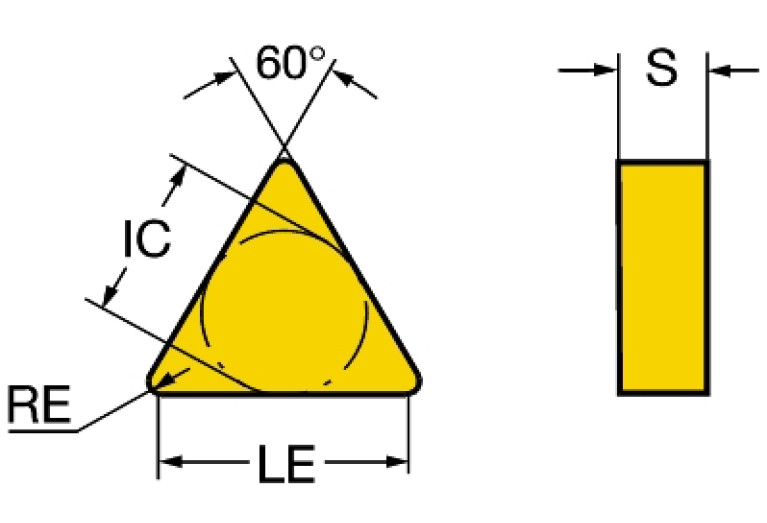

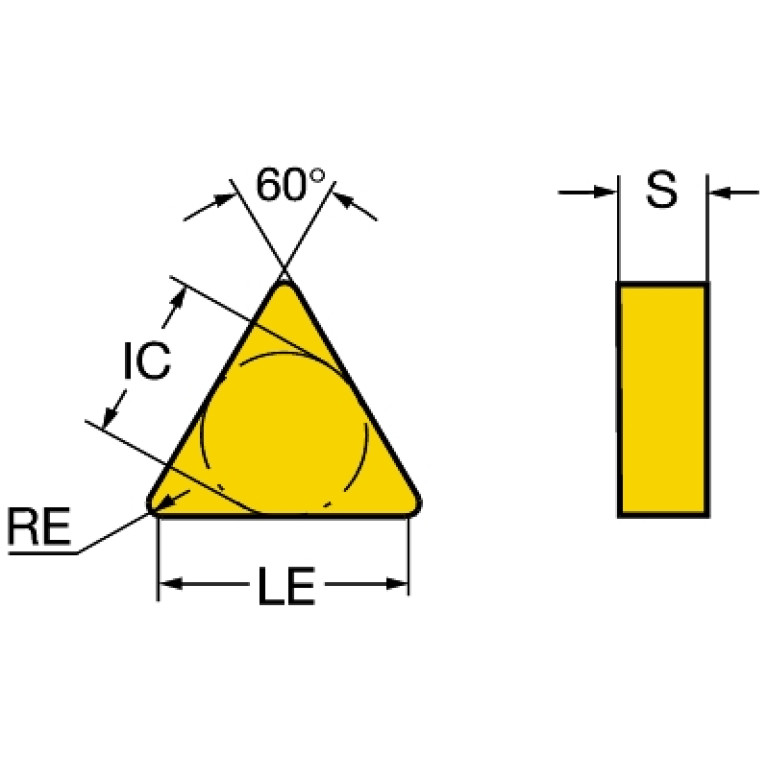

EPSR (Insert included angle)
60 Degree
GB (Face land angle)
20 Degree
GRDMFG (Grade manufacturers designation)
7925
GRDPRIO (Standard designation of the grade main application)
BH
IC (Inscribed circle diameter)
9.525 mm
IFS (Insert mounting style code)
1 - Without bore
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
1
ISO
ISO$TN1604081NA$$08
L (Cutting edge length)
16.498 mm
LE (Cutting edge effective length)
15.698 mm
LOC-03 ISO
ISO$TN1604081NA$$08
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
TN1604081N
Materials
K
MIID (Master insert identification)
TNGN160408 7925
NOI (Insert index count)
3
RE (Corner radius)
0.794 mm
S (Insert thickness)
4.763 mm
S1 (Insert thickness total)
4.763 mm
STDDES (Standard designation)
TNGN160408
STDDESAnsi (Standard designation ANSI)
TNGN332
TCE (Tipped cutting edge code)
C
TCINS (Tolerance class insert)
G
Working process
No working processes available
WT (Weight of item)
0.002 kg
