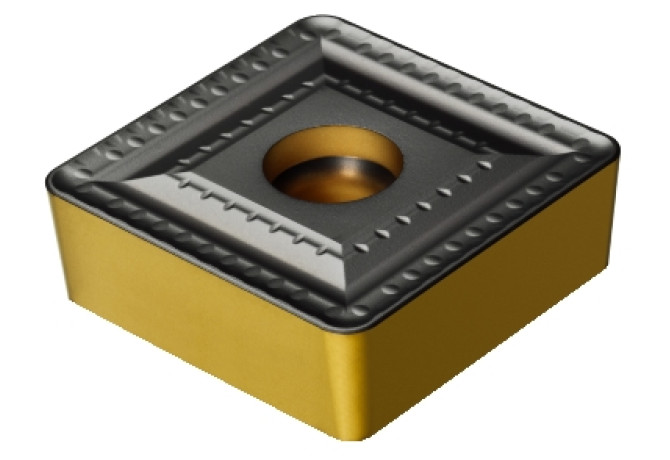

SBMT 38 12 32-XH 4415

Артикул: 8272137

В наличии

В корзину

Описание

Характеристики

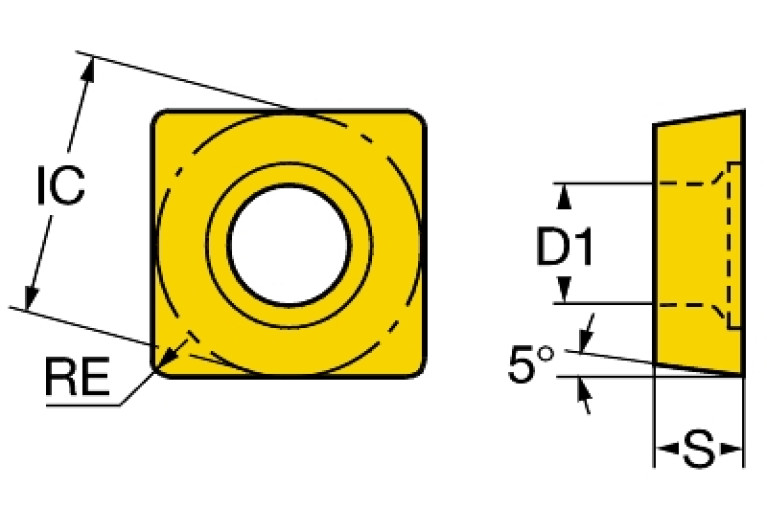

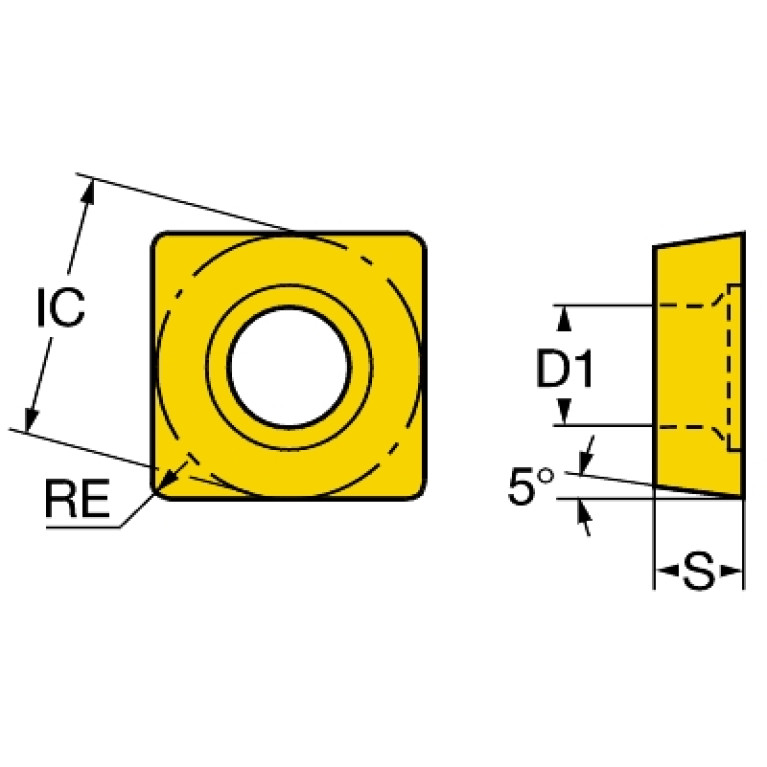

AN (Clearance angle major)

5 Degree

CB (Chip breaker face count)

1 - With chip breaker one-side

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

TiN

D1 (Fixing hole diameter)

9 mm

Delivery state

LH - Stocked

Delivery state valid from

6/1/2024

DIN

SB3812323N

EPSR (Insert included angle)

90 Degree

GRDMFG (Grade manufacturers designation)

4415

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

38.1 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$SB3812323NB$$32

L (Cutting edge length)

38.1 mm

LE (Cutting edge effective length)

34.9 mm

LOC-03 ISO

ISO$SB3812323NB$$32

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SB3812323N

Materials

P,K

NOI (Insert index count)

RE (Corner radius)

3.175 mm

S (Insert thickness)

12.7 mm

S1 (Insert thickness total)

12.7 mm

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.224 kg
