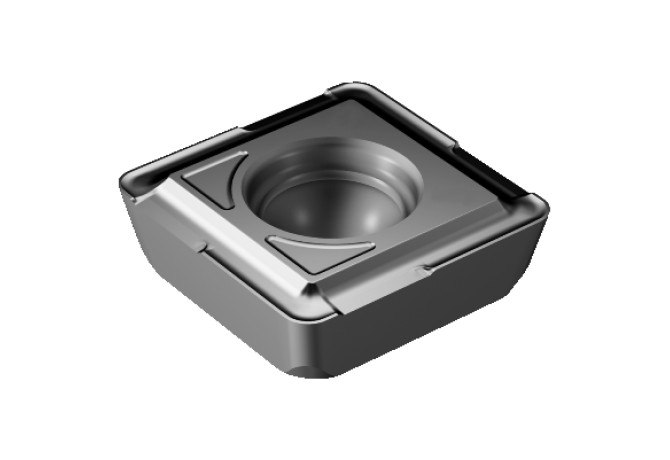

880-05 03 W08H-P-GT 4024

Артикул: 5765708

В наличии

В корзину

Описание

Характеристики

AN (Clearance angle major)

11 Degree

BN (Face land width)

0.12 mm

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TICN+AL2O3

D1 (Fixing hole diameter)

3.2 mm

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

SV-DE0503P0

EPSR (Insert included angle)

90 Degree

GAN (Insert rake angle)

15 Degree

GB (Face land angle)

5 Degree

GRDMFG (Grade manufacturers designation)

4024

GRDPRIO (Standard designation of the grade main application)

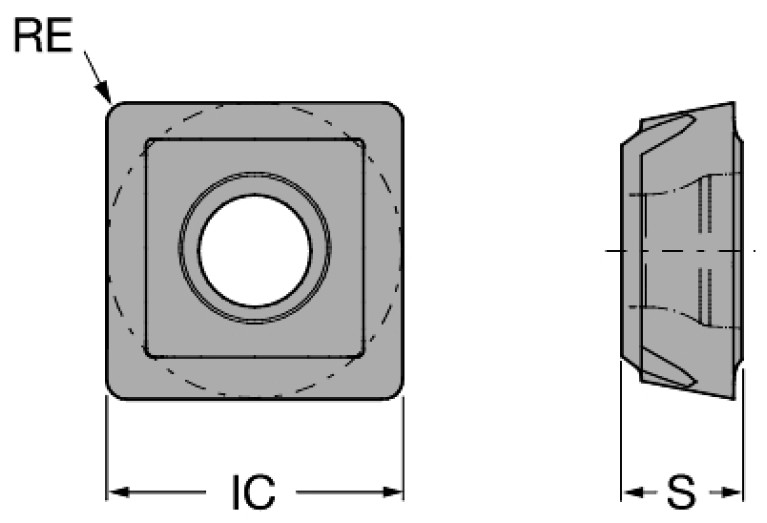

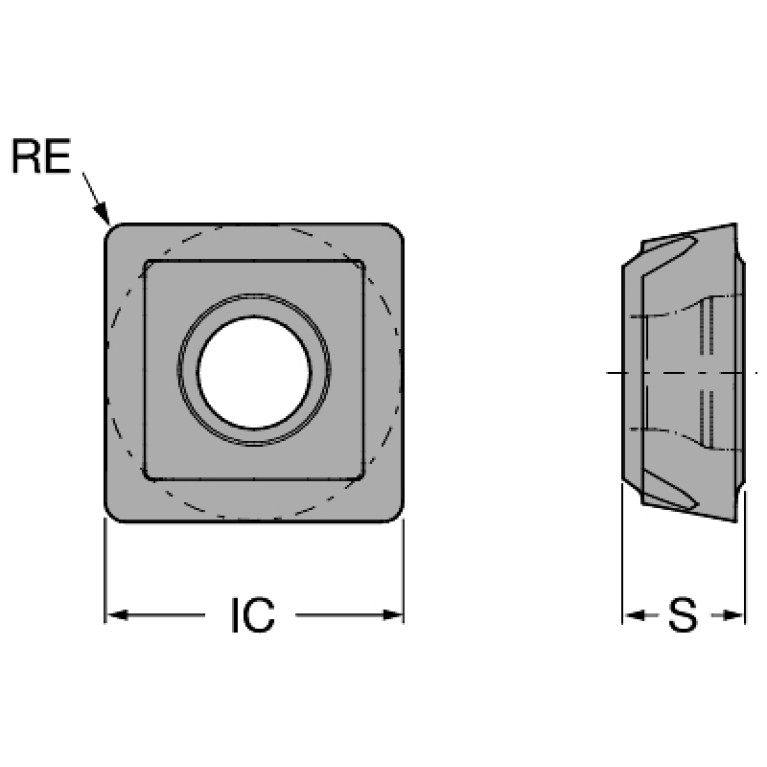

IC (Inscribed circle diameter)

8.9 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

R - Right

Interface codes

J6 / J441

ISISO (ISO property)

ISO

SV$$DE0503$$3RBP$$$

L (Cutting edge length)

8.9 mm

LOC-03 ISO

SV$$DE0503$$3RBP$$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SV-DE0503P0

Materials

P,M,K,H

NOI (Insert index count)

RE (Corner radius)

0.8 mm

S (Insert thickness)

3 mm

S1 (Insert thickness total)

3 mm

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.003 kg
