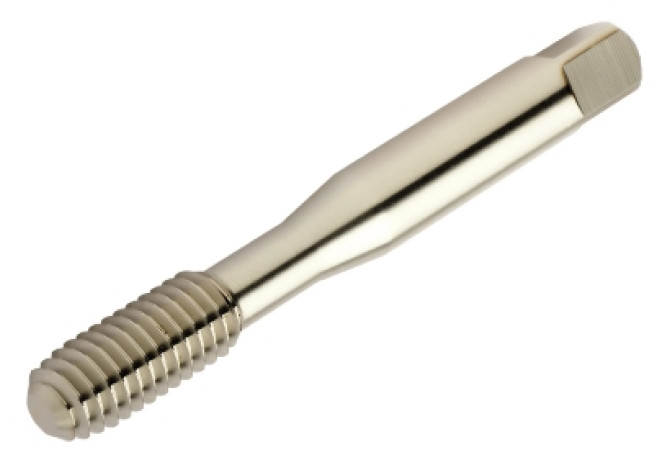

Главная Каталог продукции Sandvik Coromant 301-04 - Thread forming tap with reinforced shank E52310-24BRIGHT

E52310-24BRIGHT

Артикул: 6182084

В наличии

В корзину

Описание

Характеристики

BMC (Body material code)

S - Solid steel

CNSC (Coolant entry style code)

0 - Without coolant entry

COATN (Coating)

Constant Constant

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

ZYL00502105

DN (Neck diameter)

3.2 mm

GRDMFG (Grade manufacturers designation)

HSS Consta

GRDPRIO (Standard designation of the grade main application)

HSS

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL21F5000h$09

LDRED (Neck length)

20 mm

LOC-03 ISO

ZYL21F5000h$09

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0050

LOC-03 (DCONMS Diameter)

5 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00502105

LS (Shank length)

22 mm

NOF (Flute count)

OAL (Overall length)

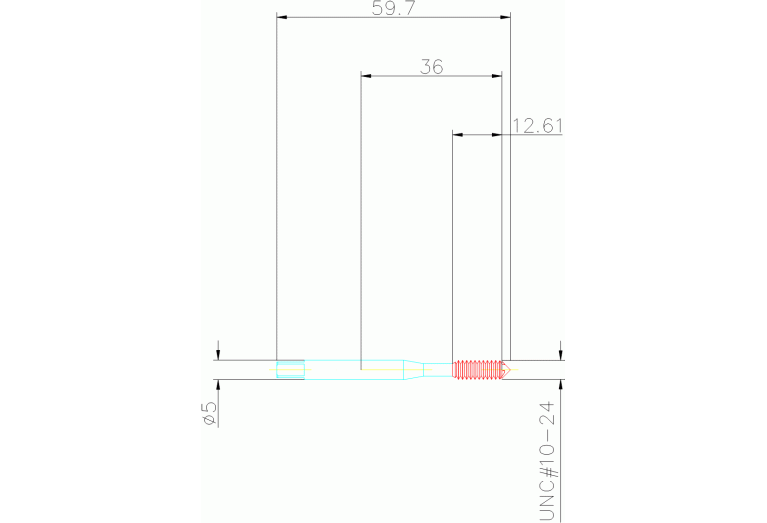

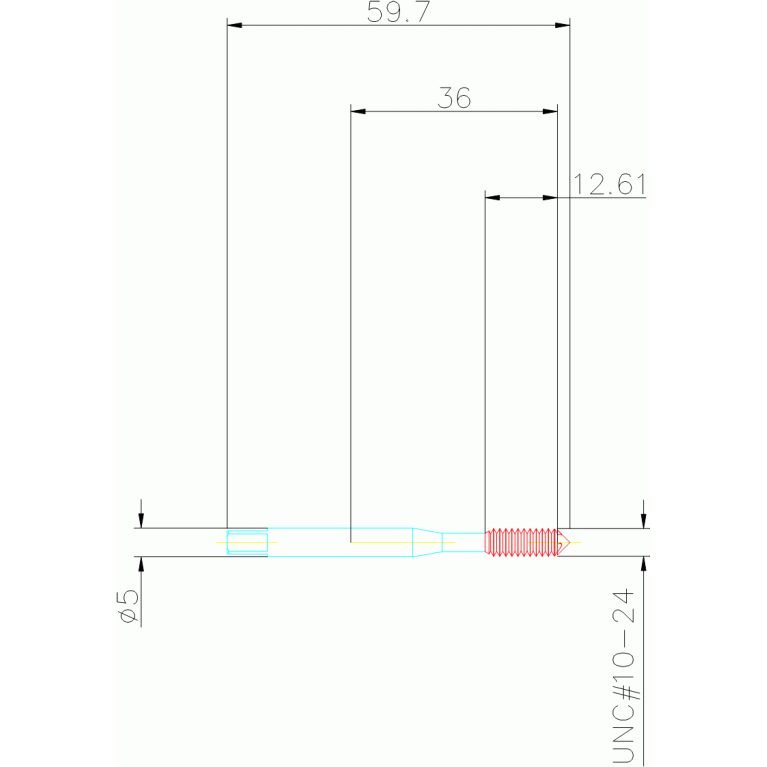

59.7 mm

OVERHANG LENGTH (Overhang length)

36 mm

PLCD (Gate diameter)

4.4 mm

TCDCONMS (ISO-tolerance class shank diameter)

TCL (Tap chamfer length)

1.503 mm

TCTR (Thread tolerance class)

2BX

TD (Thread diameter)

4.826 mm

TDZ (Thread diameter size)

THFT (Thread form type)

UNC

THL (Thread cutting part length)

11.2 mm

THOD (Thread designation)

UNC10-24-2BX

TPI (Threads per inch)

24 1/in

TTPID (Tap type identifier)

4 - Forming tap

Working process

GF - Thread forming,GFD - Thread forming, through hole,GFS - Thread forming, blind hole

WT (Weight of item)

0.011 kg
